| Model NO. | WH044-120C | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 0.44 | Working Distance(mm) | 120 | ||||
| NA | 0.02 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12 | ||||
| MTF30 (lp/mm) | 80 | Object Resolution(μm) | 16.8 | ||||
| Depth of Field(mm) | 5 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 73.2 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.6 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/3"(4.8x3.6) | 10.9x8.2 | ||||||

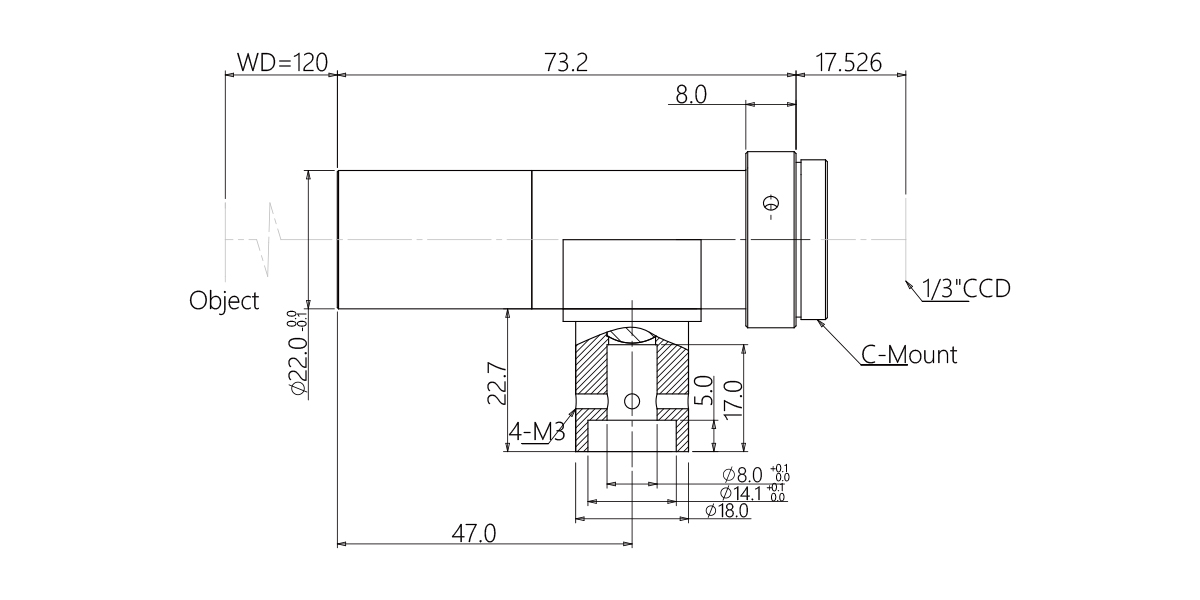

Dimensions
Naming Rule
