| Model NO. | WH05-170A | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 170 | ||||
| NA | 0.0268 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 9.3 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 12.5 | ||||
| Depth of Field(mm) | 3 | Distortion Typical(% max) | 0.2 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 89.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 1.6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.5"(5.7x4.3) | 11.4x8.6 | ||||||

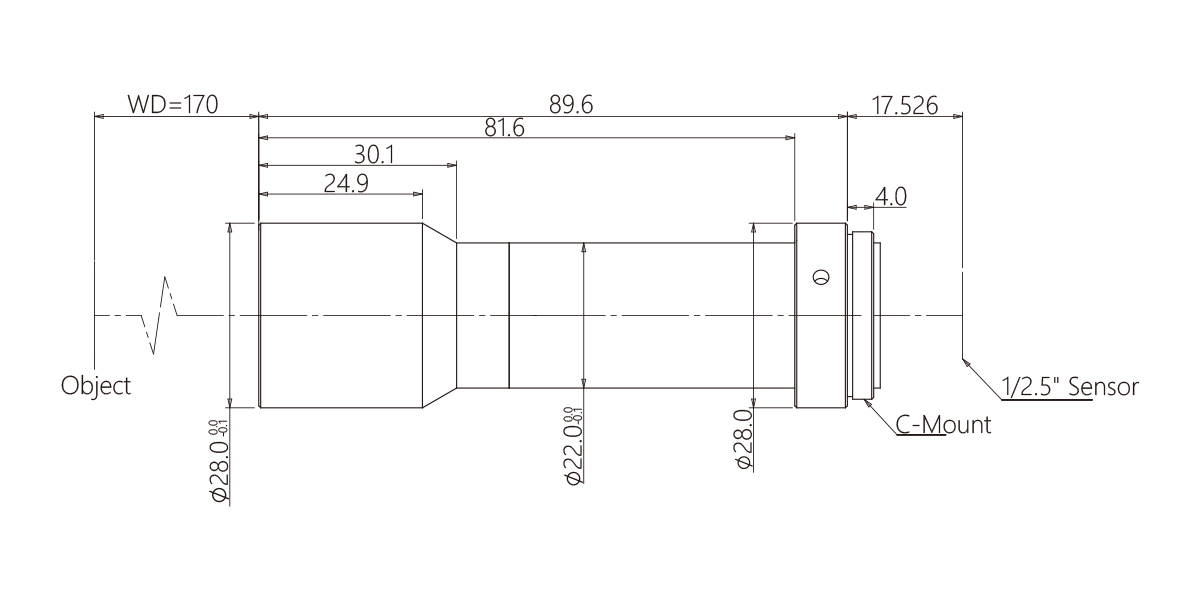

Dimensions
Naming Rule
