| Model NO. |
WH04-900A-125 |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.4 |
Working Distance(mm) |
900 |
| NA |
0.0117 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
16.3 |
| MTF30 (lp/mm) |
58 |
Object Resolution(μm) |
28.6 |
| Depth of Field(mm) |
8.2 |
Distortion Typical(% max) |
0.3 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
251.4 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
5 |
| Filter Screw Size |
M35x0.5 |

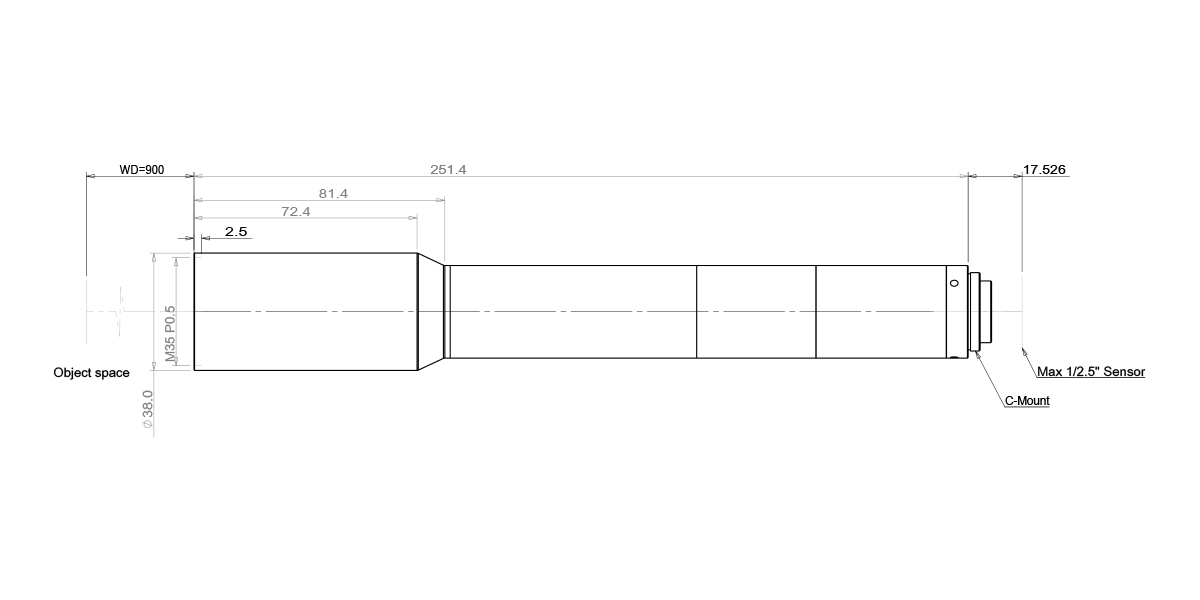

Dimensions
Naming Rule
