| Model NO. | WH04-300A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 300 | ||||
| NA | 0.0286 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 7 | ||||
| MTF30 (lp/mm) | 102 | Object Resolution(μm) | 11.7 | ||||
| Depth of Field(mm) | 3.5 | Distortion Typical(% max) | 0.005 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 159.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2.5"(5.7x4.28) | 14.25x10.7 | ||||||

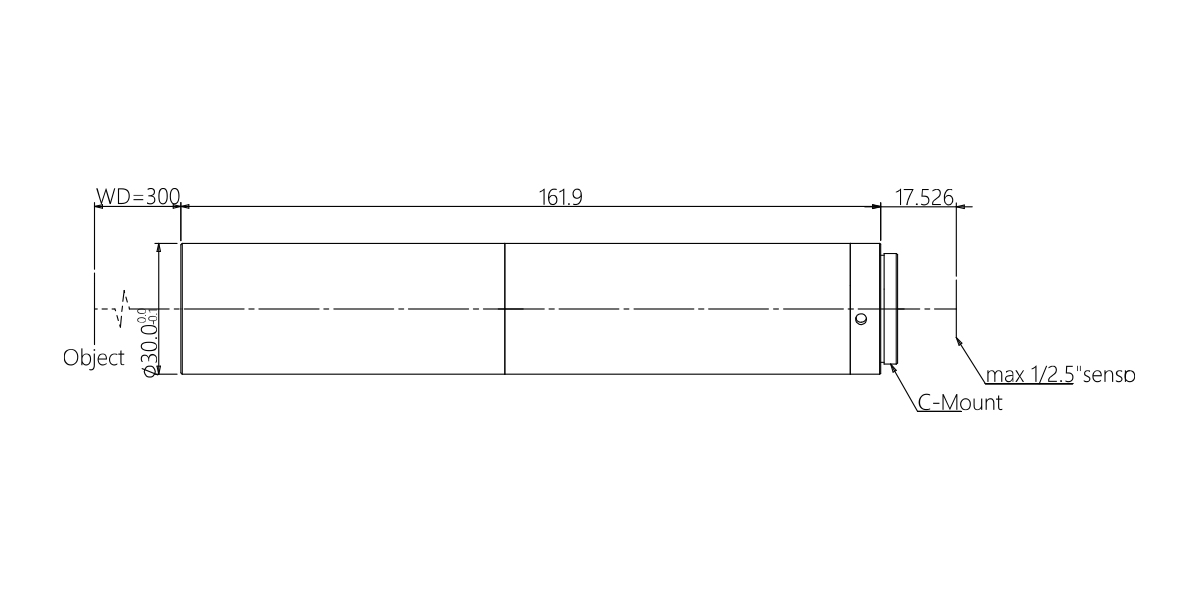

Dimensions
Naming Rule
