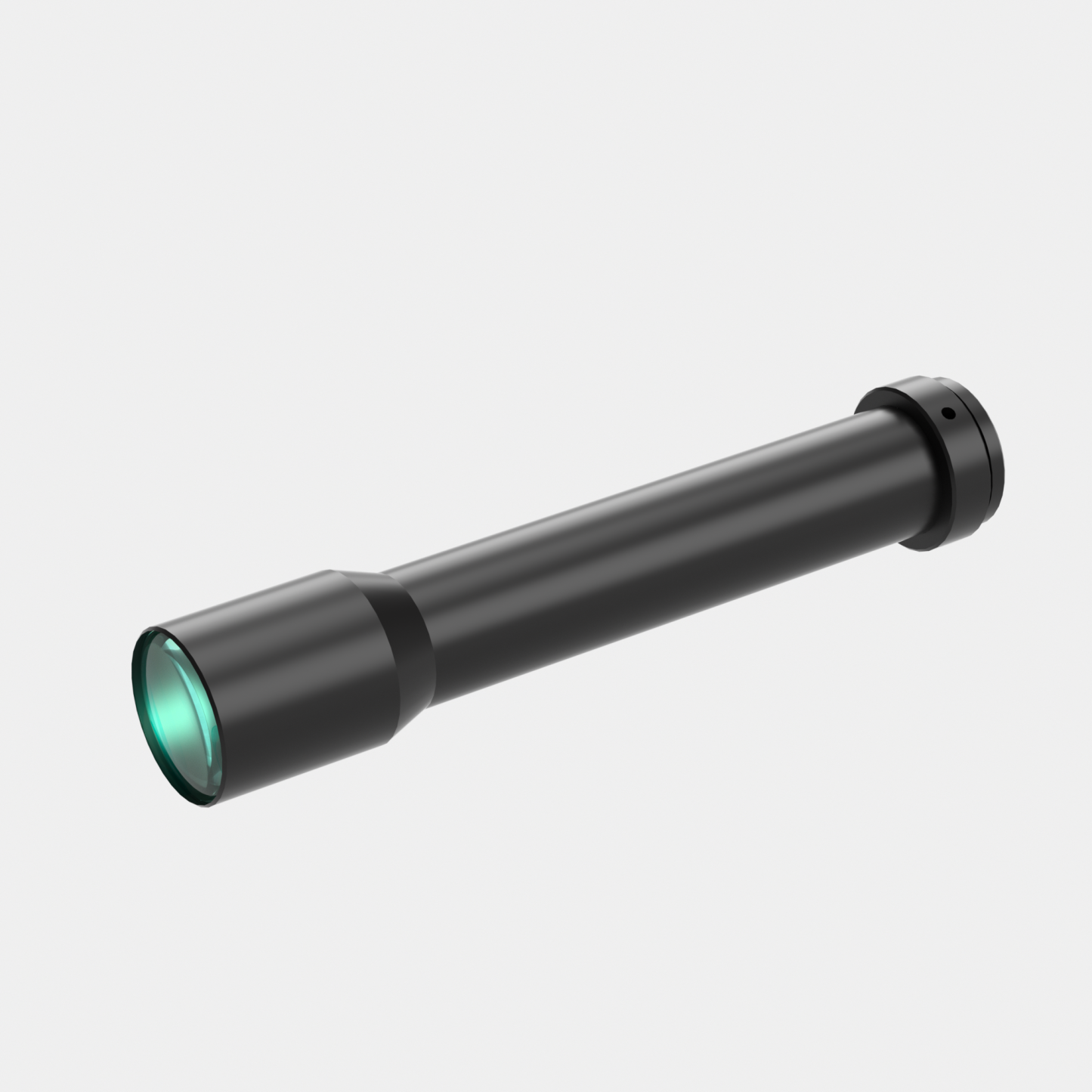

1/2.5" 0.4X Industrial Lenses | WH04-190A-125 COOLENS®

WH04-190A-125
$386.00 USD
Shipping calculated at checkout.
Quantity
1/2.5" 0.4X Industrial Lenses | WH04-190A-125 COOLENS®-OKLAB

Description

Model NO. WH04-190A-125 Image Circle Diameter (Φmm) 7.2(1/2.5")
Magnification(x) 0.4 Working Distance(mm) 190
NA 0.0235 Type Fixed Magnification
Mount C Best Aperture(f/#) 8.5
MTF30 (lp/mm) 117 Object Resolution(μm) 14.3
Depth of Field(mm) 4.3 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 143.2
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.8
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/4"(3.2x2.4) 8.0x6.0
1/3"(4.8x3.6) 12.0x9.0
1/2.5"(5.7x4.3) 14.3x10.8

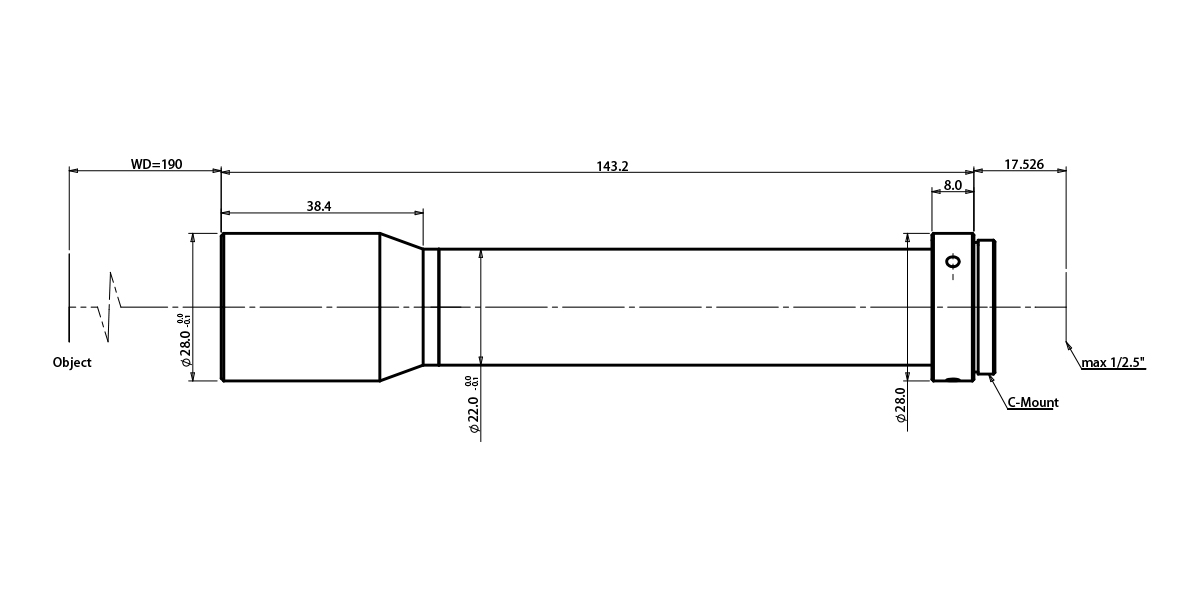

Dimensions

Naming Rule



Important Note
