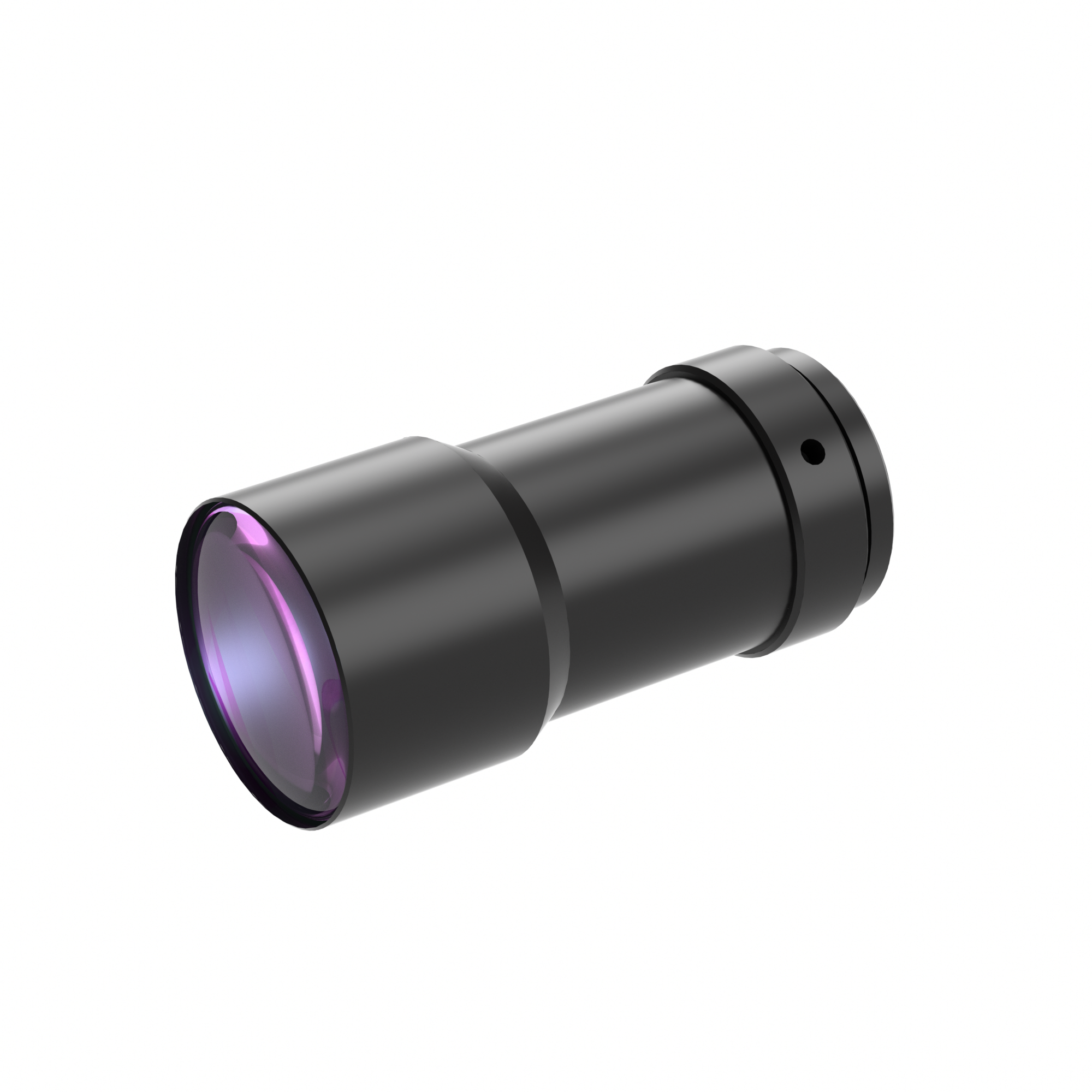

| Model NO. |
WH026-110A-125 |
Image Circle Diameter (Φmm) |
7.2(1/2.5") |
| Magnification(x) |
0.26 |
Working Distance(mm) |
110 |
| NA |
0.0122 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
8.1 |
| MTF30 (lp/mm) |
90 |
Object Resolution(μm) |
27.5 |
| Depth of Field(mm) |
9.6 |
Distortion Typical(% max) |
0.6 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
55.7 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
13 |
| Filter Screw Size |
M27x0.5 |
| Field of View (mm x mm) |
|
| 1/2.5"(5.7x4.3) |
21.9x16.5 |

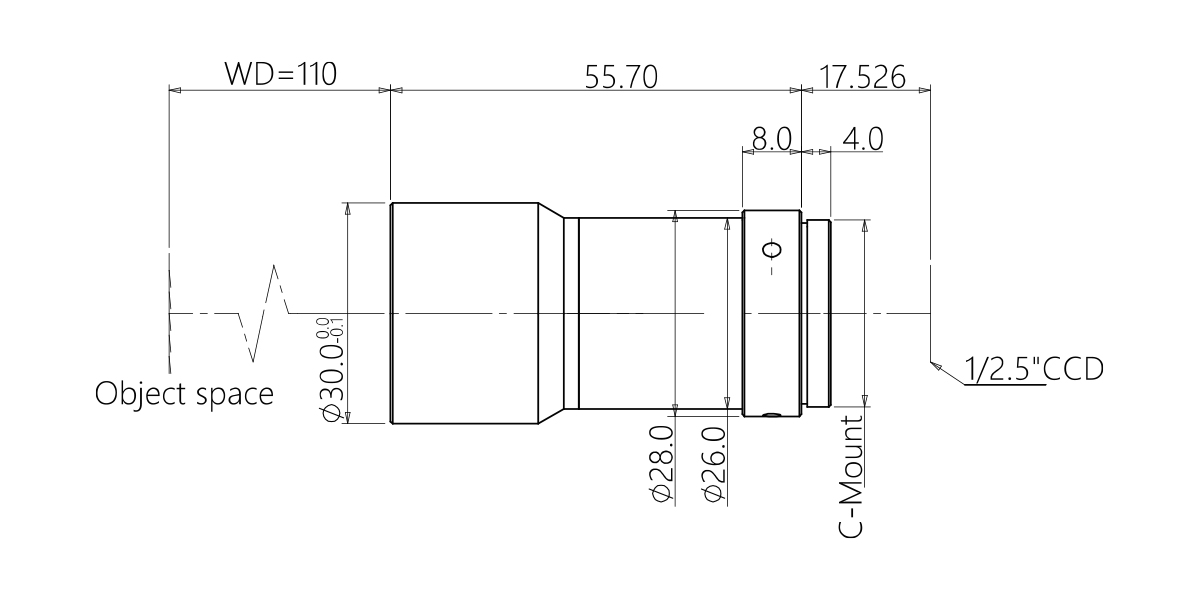

Dimensions
Naming Rule
