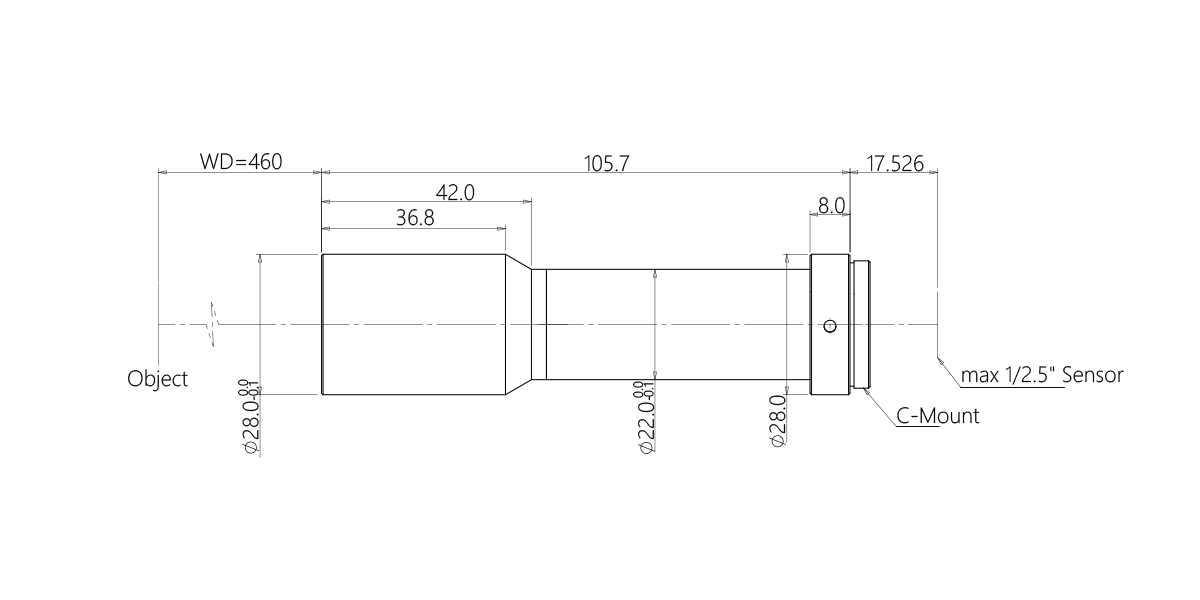

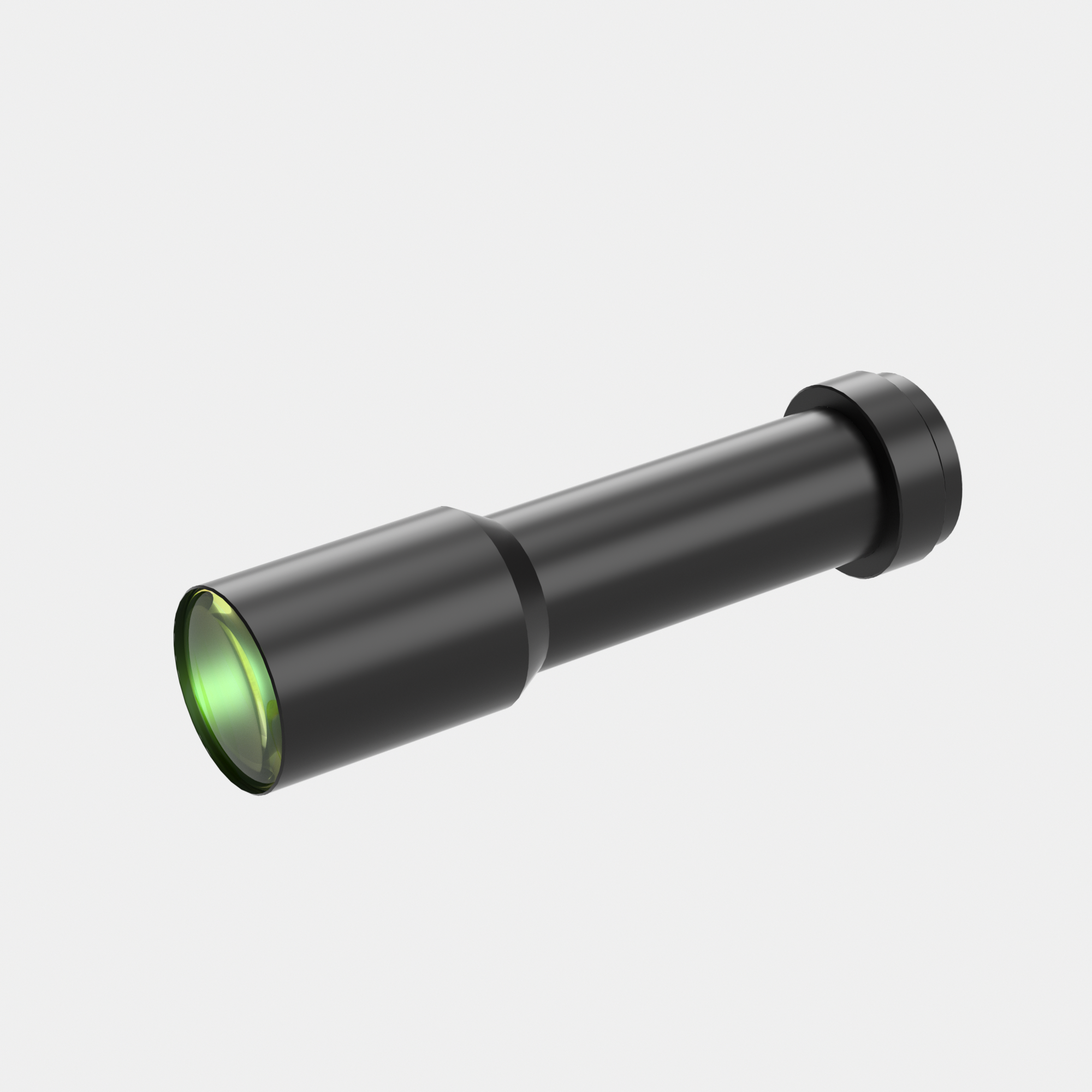

Model NO. | WH014-460A-125 | Image Circle Diameter (Φmm) | 7.2(1/2.5") | ||||
Magnification(x) | 0.14 | Working Distance(mm) | 460 | ||||
NA | 0.0100 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 7 | ||||
MTF30 (lp/mm) | 120 | Object Resolution(μm) | 33.7 | ||||
Depth of Field(mm) | 28.6 | Distortion Typical(% max) | 0.03 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 105.7 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 11 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/4"(3.2x2.4) | 22.9x17.1 | ||||||
1/3"(4.8x3.6) | 34.3x25.7 | ||||||
1/2.5"(5.7x4.3) | 40.7x30.7 |
