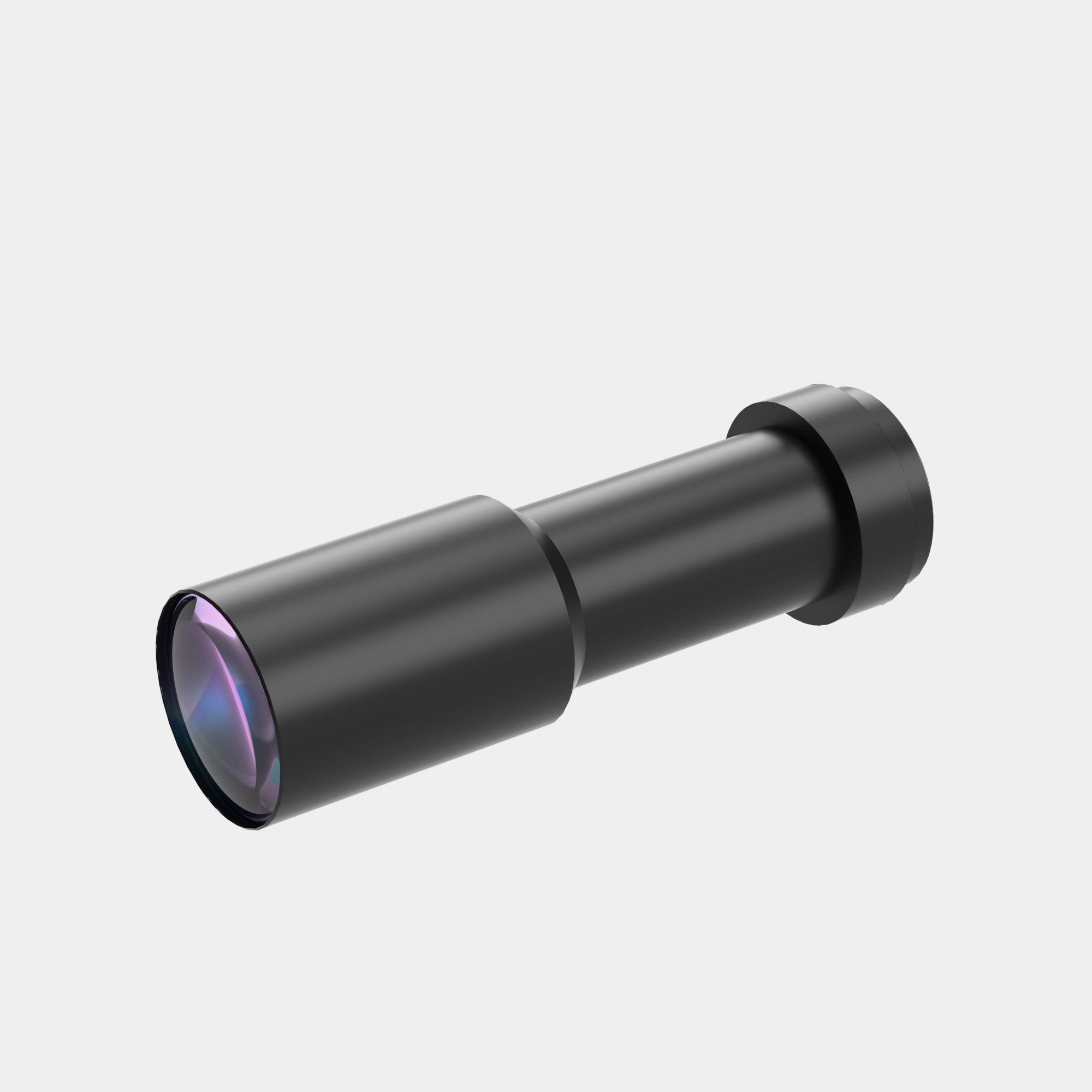

Model NO. | WH025-210A-120 | Image Circle Diameter (Φmm) | 7.9(1/2.3") | ||||
Magnification(x) | 0.25 | Working Distance(mm) | 210 | ||||
NA | 0.0139 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 9 | ||||
MTF30 (lp/mm) | 95 | Object Resolution(μm) | 24.1 | ||||
Depth of Field(mm) | 11.5 | Distortion Typical(% max) | 0.2 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 87.3 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/3"(4.8x3.6) | 19.2x14.4 | ||||||
1/2"(6.4x4.8) | 25.6x19.2 | ||||||
1/1.8"(7.13x5.37) | 28.5x21.5 |

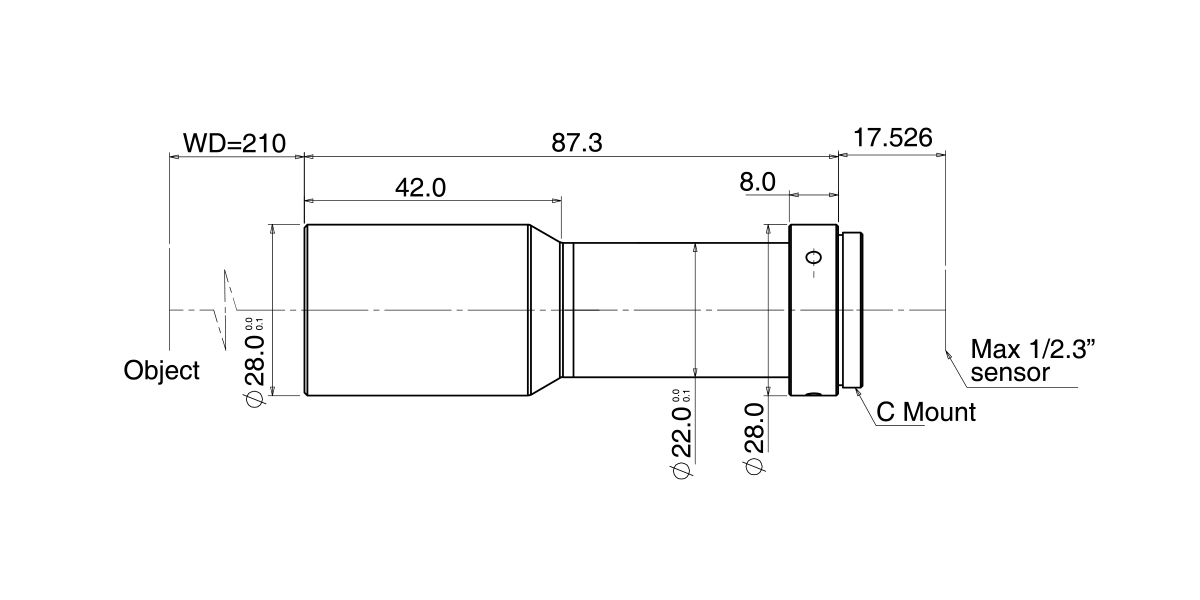

Dimensions
Naming Rule
