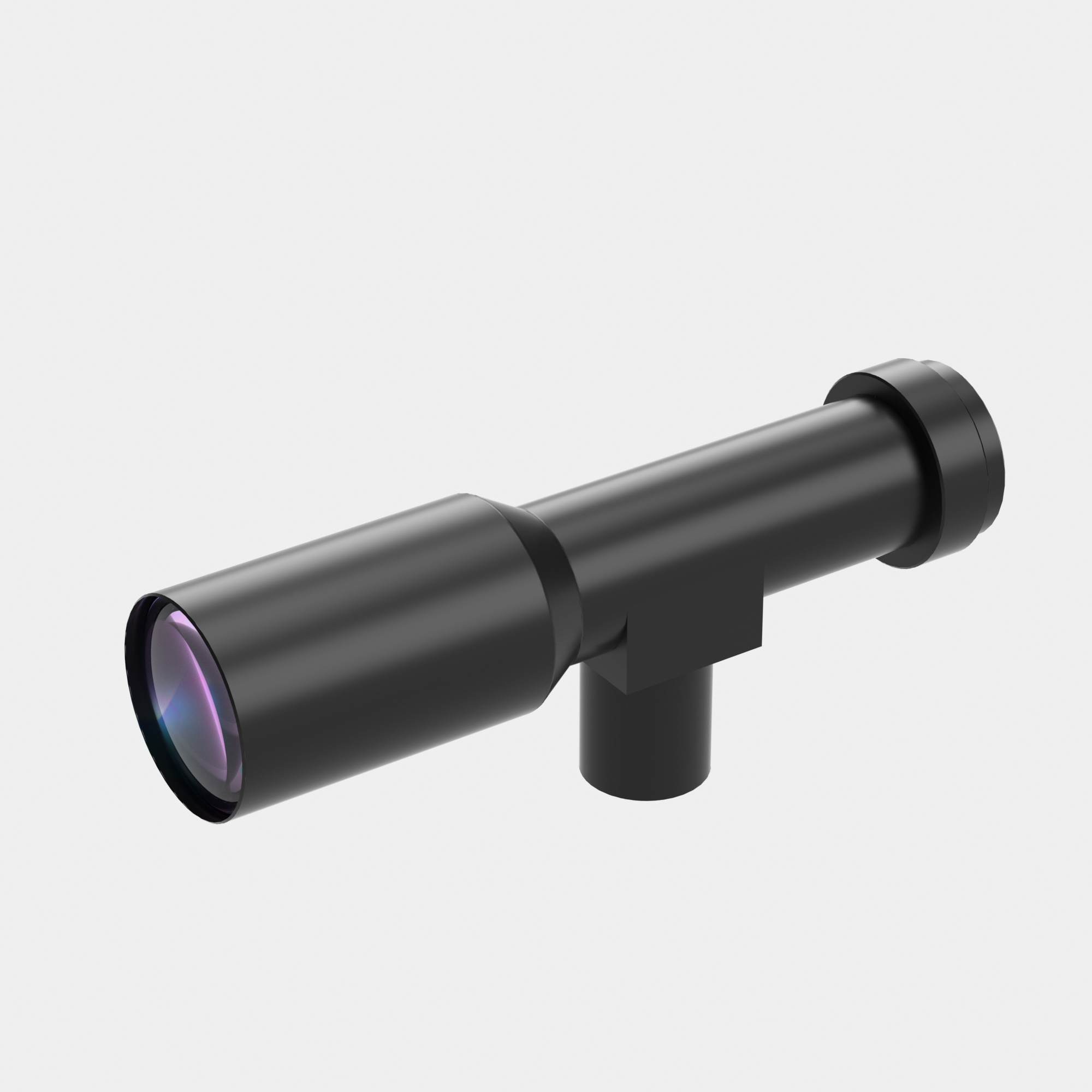

| Model NO. | WH10-250CS-120 | Image Circle Diameter (Φmm) | 8(1/2") | ||||
| Magnification(x) | 1 | Working Distance(mm) | 250 | ||||
| NA | 0.025 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 20 | ||||
| MTF30 (lp/mm) | 48 | Object Resolution(μm) | 13.4 | ||||
| Depth of Field(mm) | 1.6 | Distortion Typical(% max) | 0.4 | ||||
| Telecentricity Typical (°max) | 0.1 | Length (mm) | 117.3 | ||||
| With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 1 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 6.4×4.8 | ||||||

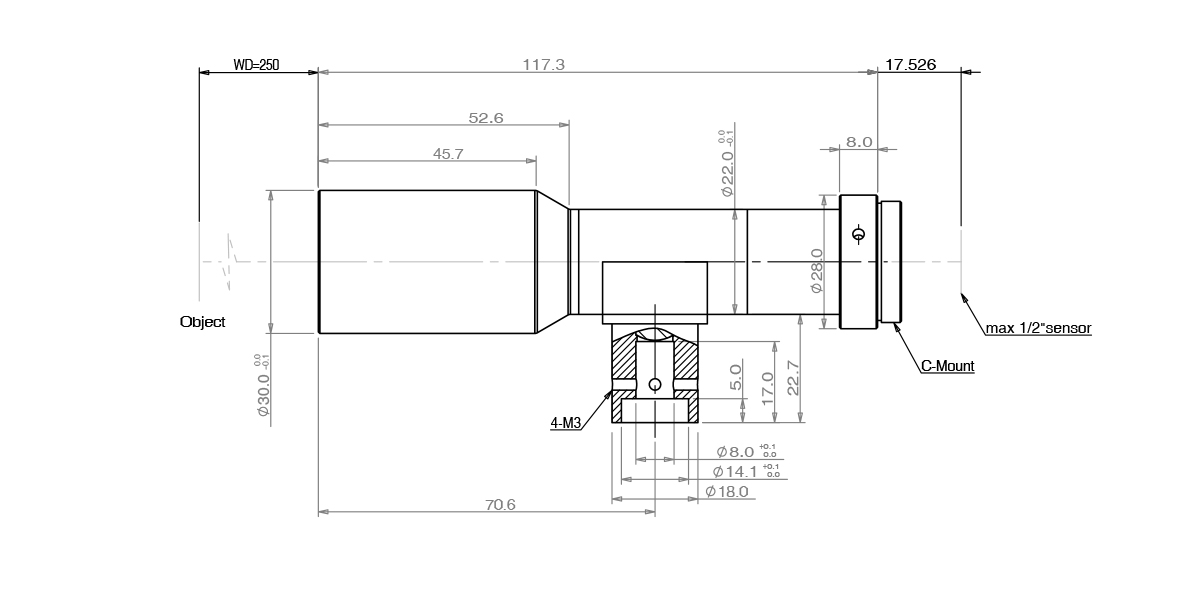

Dimensions
Naming Rule
