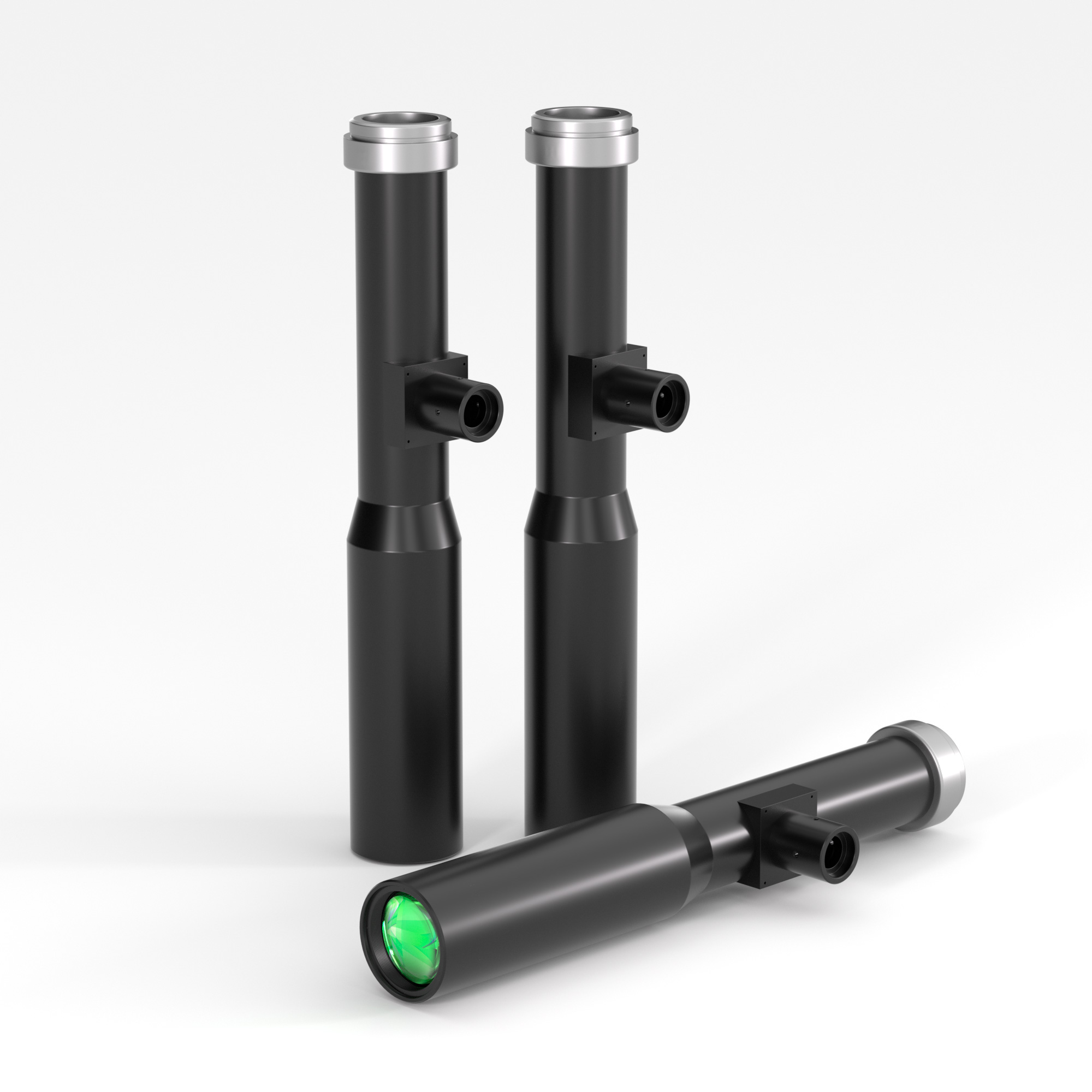

1/2" 0.5X Industrial Lenses | WH05-330CIR COOLENS®

WH05-330CIR
$557.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.5X Industrial Lenses | WH05-330CIR COOLENS®

Description

Model NO. WH05-330CIR Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.5 Working Distance(mm) 330
NA 0.0210 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.9
MTF30 (lp/mm) 55 Object Resolution(μm) 24.7
Depth of Field(mm) 3.8 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) 0.05 Length (mm) 186.2
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 1.6
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 12.8x9.6

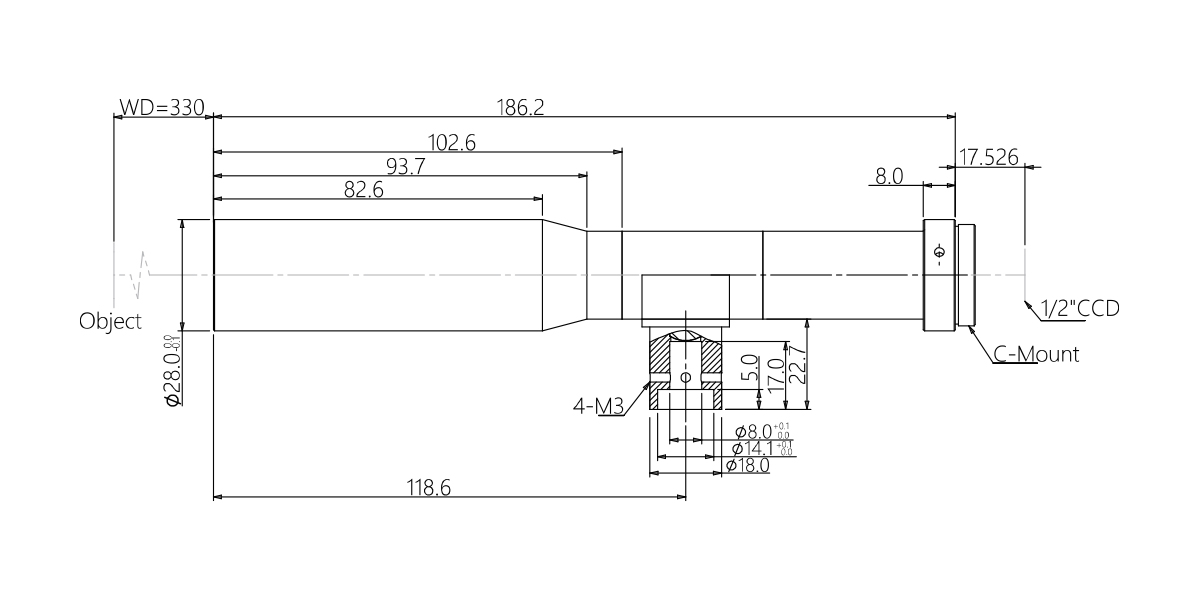

Dimensions

Naming Rule



Important Note
