| Model NO. |
WH027-220A-120 |
Image Circle Diameter (Φmm) |
8(1/2") |
| Magnification(x) |
0.27 |
Working Distance(mm) |
220 |
| NA |
0.0163 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
8.3 |
| MTF30 (lp/mm) |
105 |
Object Resolution(μm) |
20.6 |
| Depth of Field(mm) |
9.1 |
Distortion Typical(% max) |
0.1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
113.7 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
4 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
23.7x17.8 |

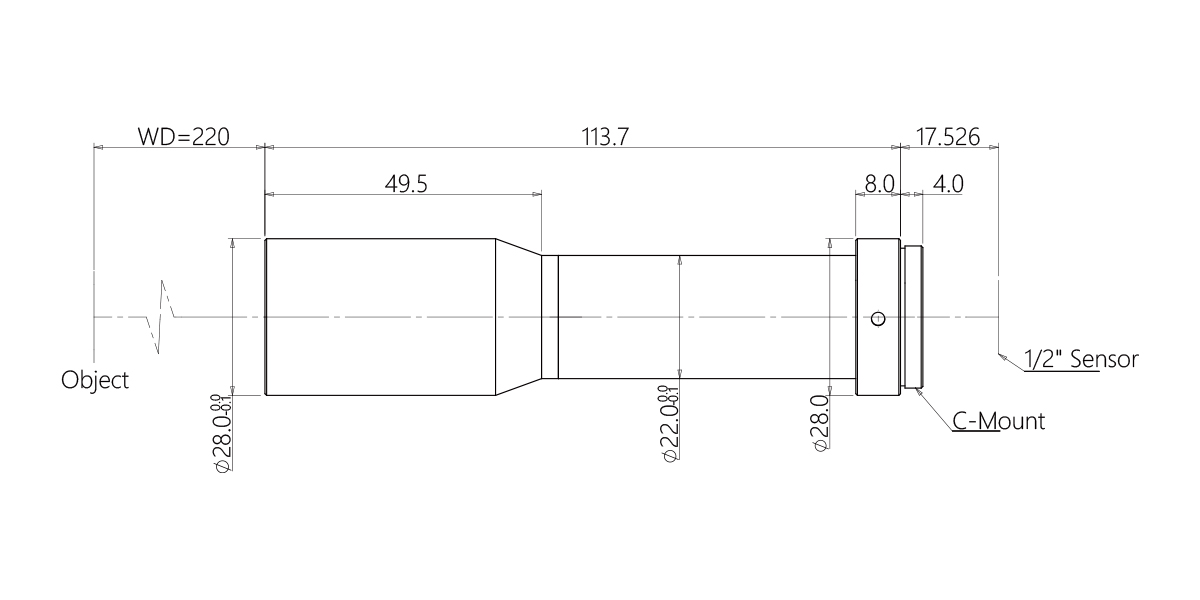

Dimensions
Naming Rule
