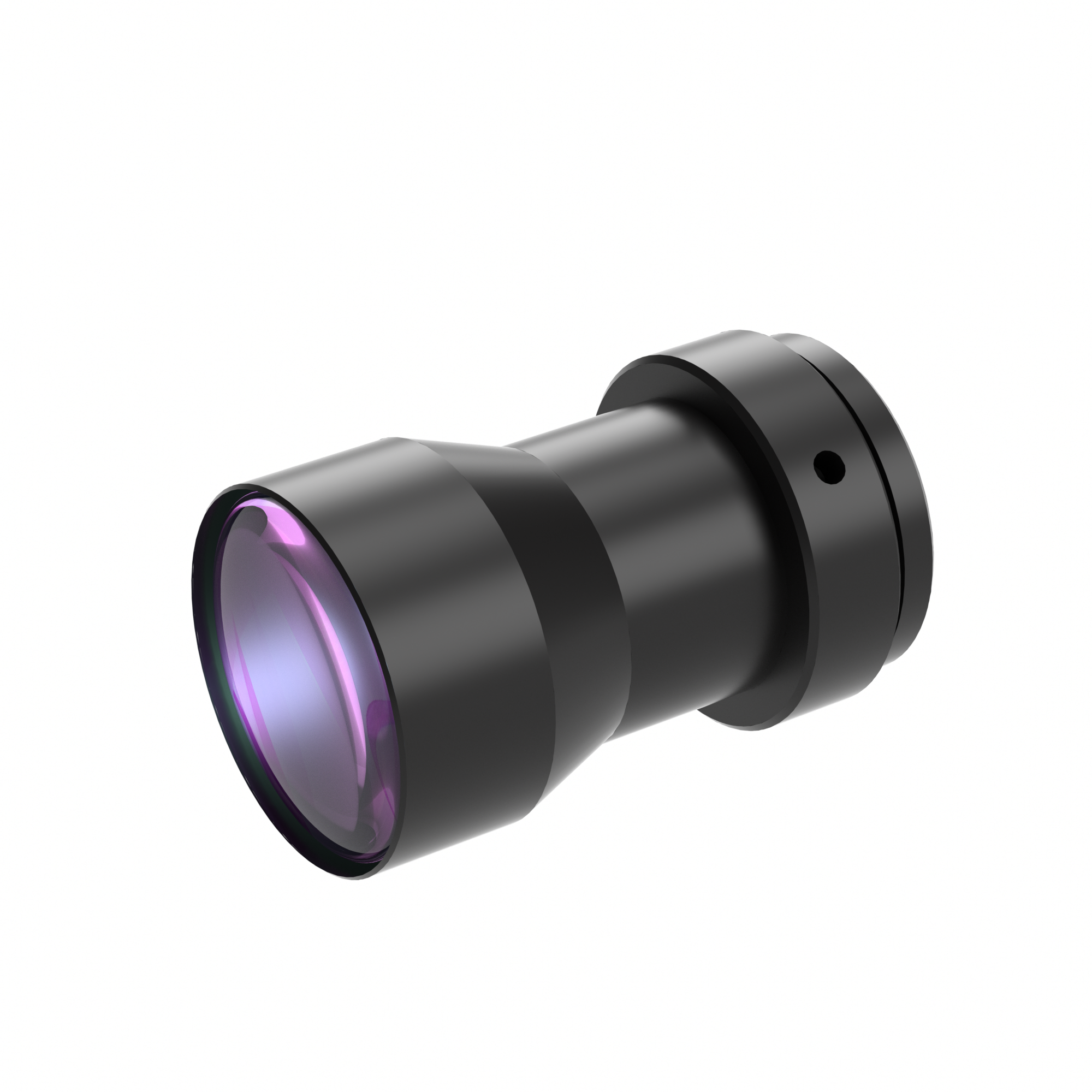

1/2" 0.22X Industrial Lenses | WH022-145A COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
1/2" 0.22X  Industrial Lenses | WH022-145A COOLENS®-OKLAB

Description

Model NO. WH022-145A Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.22 Working Distance(mm) 145
NA 0.0103 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.5
MTF30 (lp/mm) 75 Object Resolution(μm) 32.5
Depth of Field(mm) 19 Distortion Typical(% max) 0.6
Telecentricity Typical (°max) Non-telecentric Length (mm) 41.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/4"(3.2x2.4) 14.5x10.9
1/3"(4.8x3.6)  21.8x16.4
1/2"(6.4x4.8) 29.1x21.8

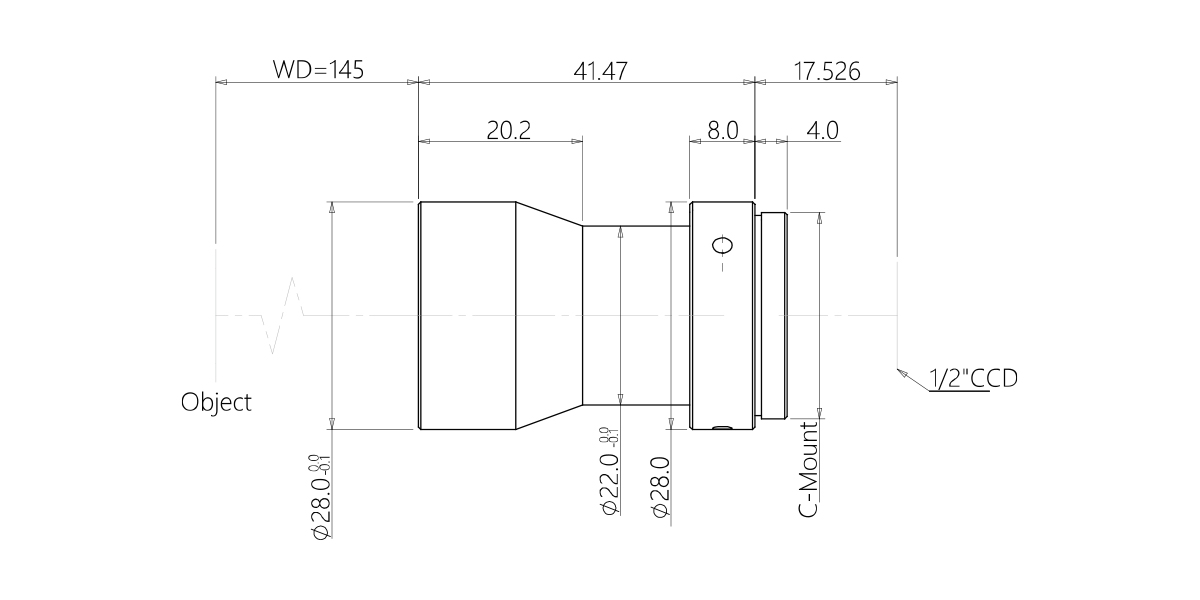

Dimensions

Naming Rule



  • Description

Model NO. WH022-145A Image Circle Diameter (Φmm) 8(1/2")
Magnification(x) 0.22 Working Distance(mm) 145
NA 0.0103 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.5
MTF30 (lp/mm) 75 Object Resolution(μm) 32.5
Depth of Field(mm) 19 Distortion Typical(% max) 0.6
Telecentricity Typical (°max) Non-telecentric Length (mm) 41.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/4"(3.2x2.4) 14.5x10.9
1/3"(4.8x3.6)  21.8x16.4
1/2"(6.4x4.8) 29.1x21.8

Dimensions

Naming Rule
