1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®

MFA118-S12V2
$77.00 USD
Shipping calculated at checkout.
Quantity
1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®-OKLAB 1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®-OKLAB 1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®-OKLAB 1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®-OKLAB 1/1.8" 12mm Fixed Focal Length Lens | MFA118-S12V2 COOLENS®-OKLAB

Description

Model No. MFA118-S12V2 Image Circle Diameter (Φmm) 1/1.8"
Focal Length(mm) 12 Magnification(x) Adjustable
Working Distance(mm) Min.100 MTF30 (lp/mm) 150
Type Fixed Focal Length Support Cameras 6M
Mount C Back Focal Length 11.0 mm in Air
F NO. F2.8 - F16 Filter Size M27 x P0.5
Max. Image Format 1/1.8" (φ9.4mm) Distortion <0.12%
Angle of View D 1/1.8"
40.9°
 1/2"
36.8°
 1/3"
28.1°
H
34.1°
29.8°
22.6°
V 23.2°
22.6°
 17.0°
M.o.D 0.1m Object Dimension at M.o.D 1/1.8"
72.21mm x 48.14 mm
Length (mm) 36.1 1/2.3"
63.08 mm x 45.21 mm
Flange Back Length 17.526mm in Air
Structure 7 Groups, 8 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.8 - F16 Operation of Focus Range MOD-INF
Spectral Transmission AT 436nm-656nmT≥85%

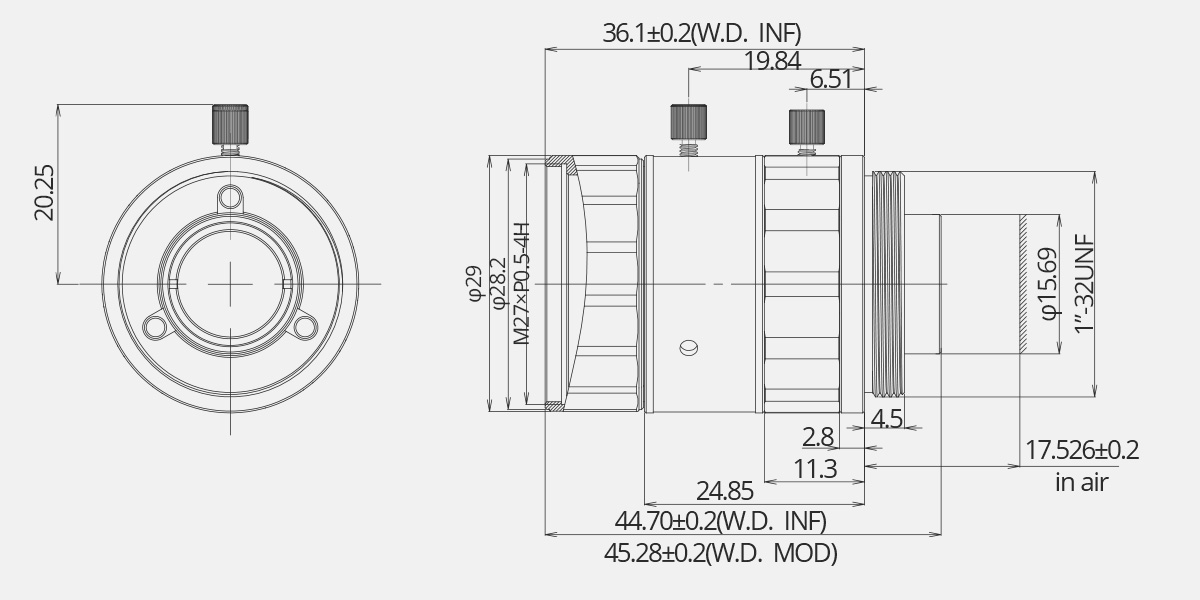

Dimensions

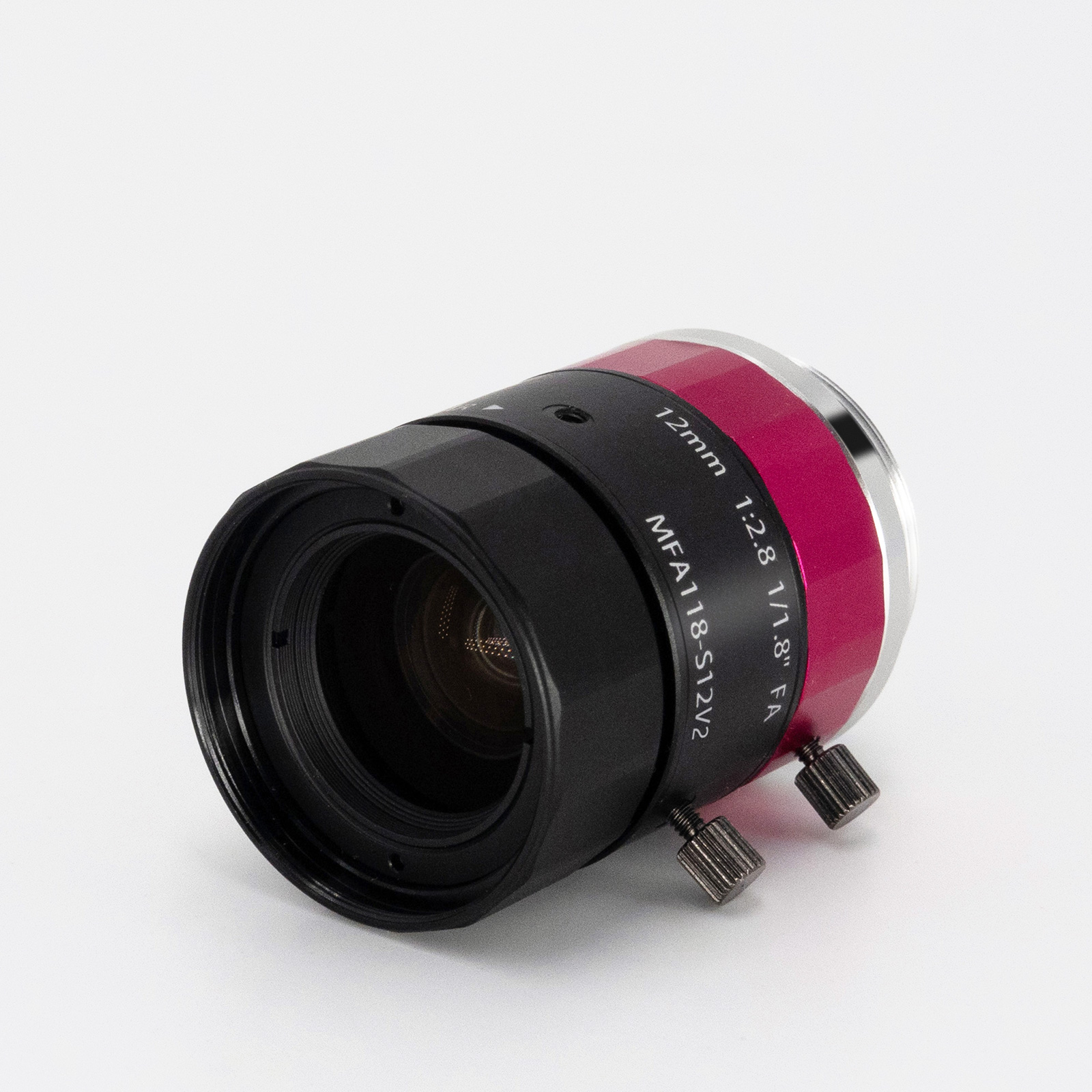

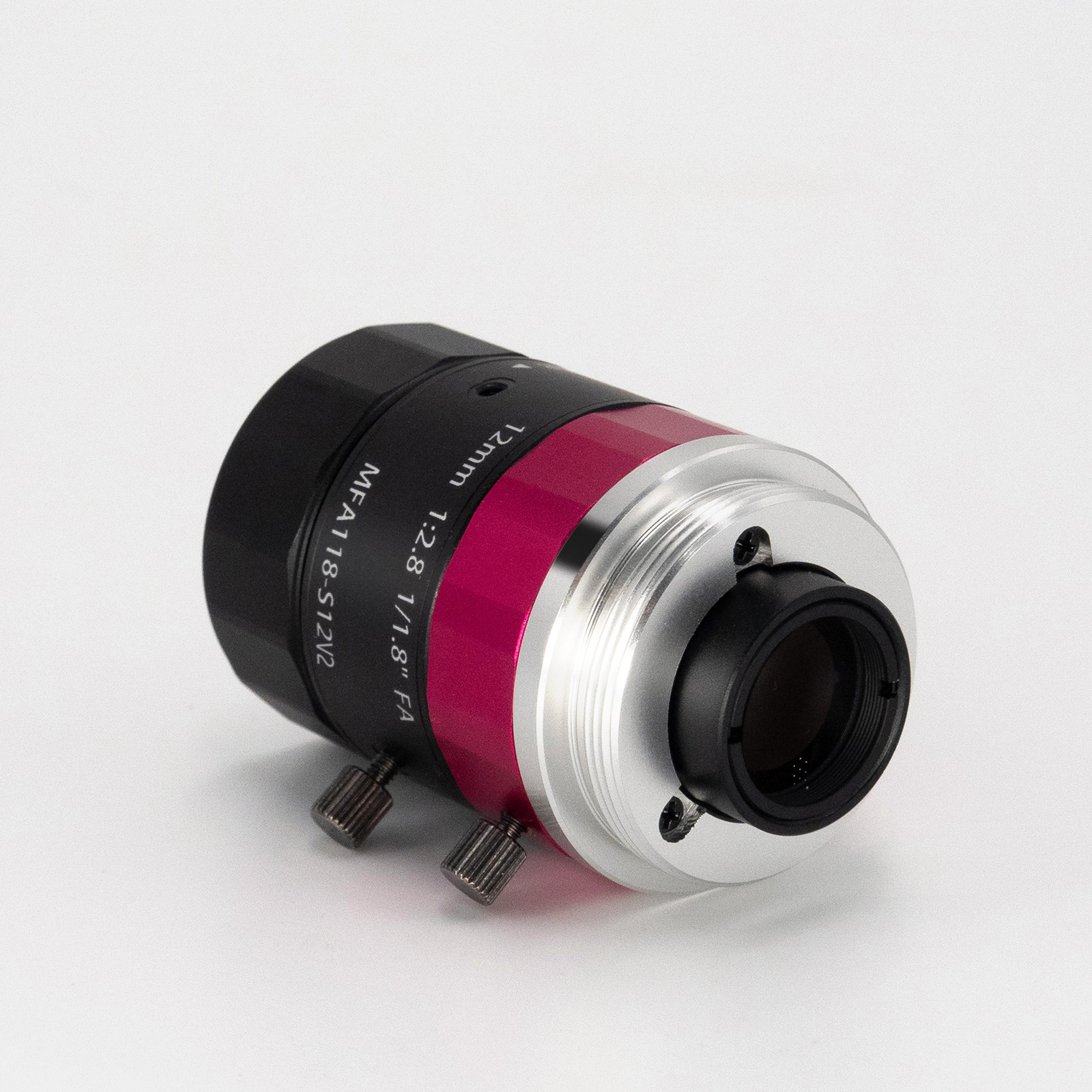

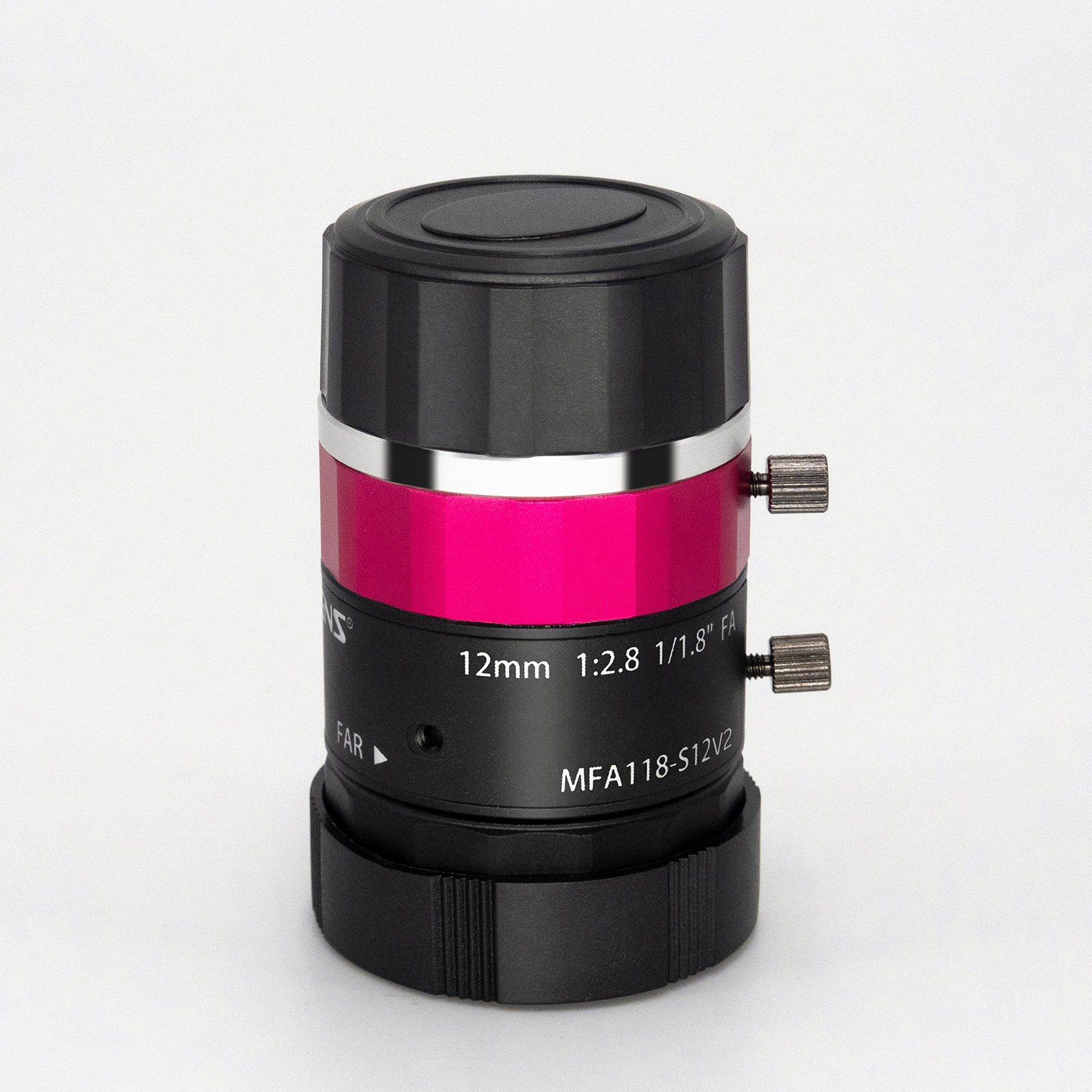

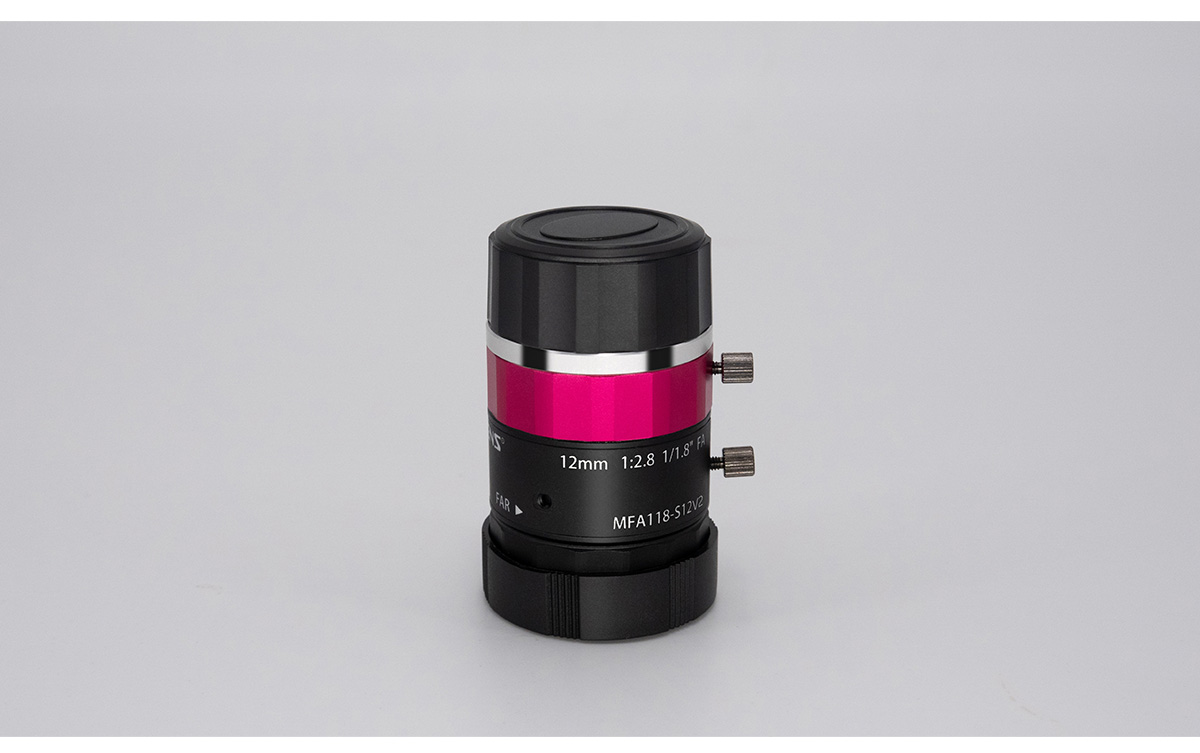

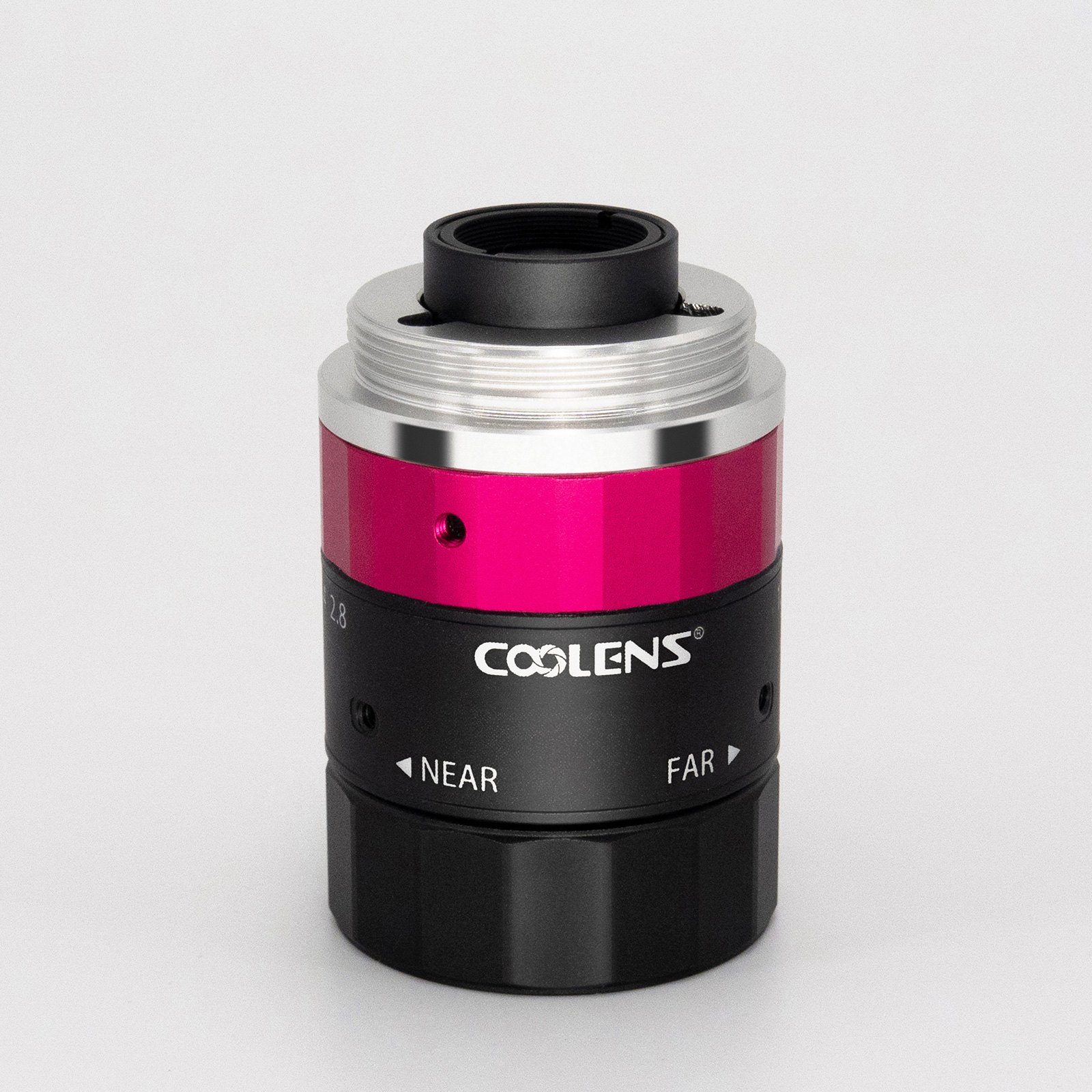

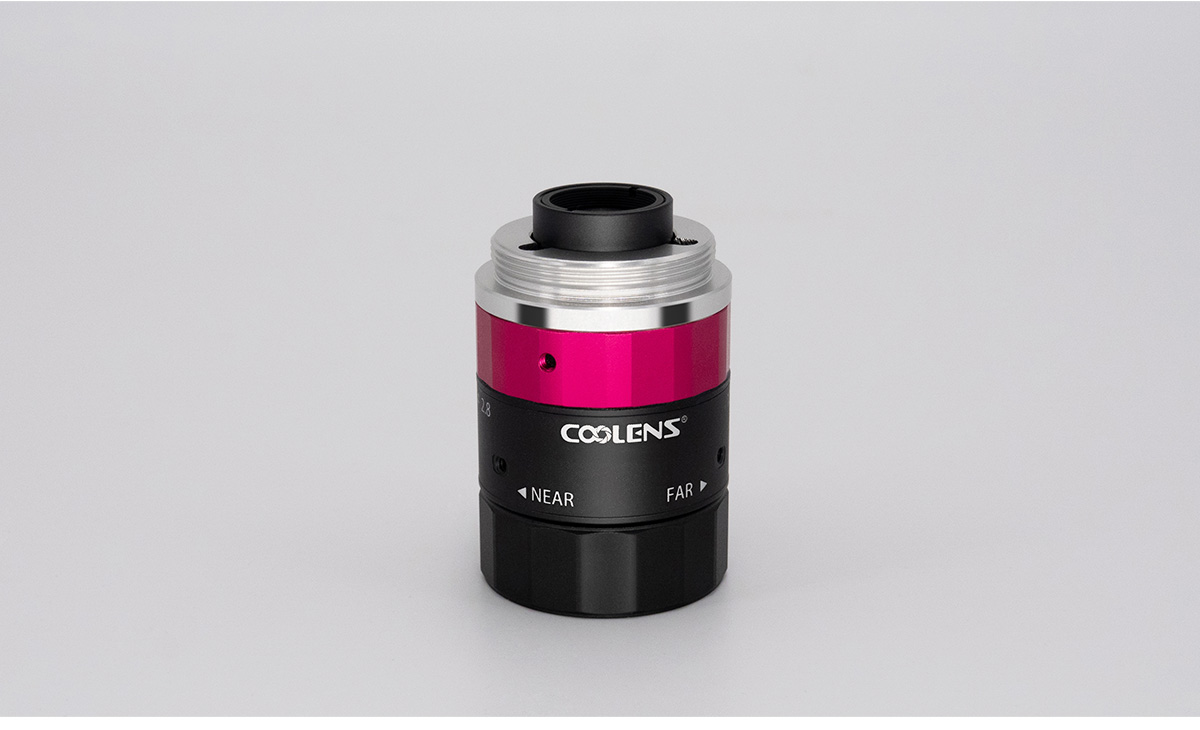

Product Photograph
