| Model No. | MFA118-S06V3 | Image Circle Diameter (Φmm) | 1/1.8" | ||||
| Focal Length(mm) | 6 | Magnification(x) | Adjustable | ||||
| Working Distance(mm) | Min.100 | MTF30 (lp/mm) | 150 | ||||
| Type | Fixed Focal Length | Support Cameras | 6M | ||||
| Mount | C | Back Focal Length | 11.6 mm in Air | ||||
| F NO. | F1 - F2 | Filter Size | / | ||||

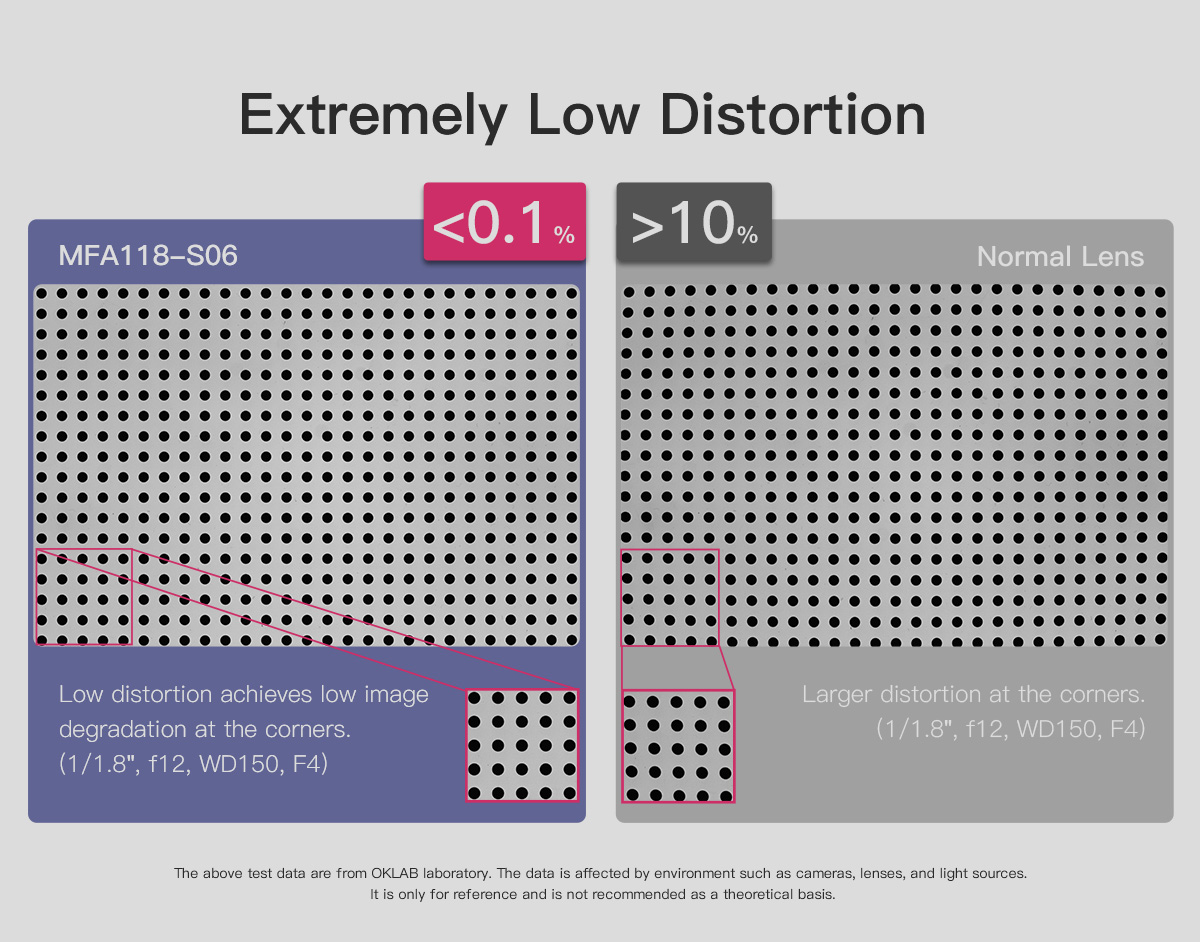

| Max. Image Format | 1/1.8" (φ9.4mm) | Distortion | ＜1.5% | ||||
| Angle of View | D | 1/1.8" | 69.8° | 1/2" | 60.9° | 1/3" | 52.4° |
| H | 59.6° | 48.7° | 41.9° | ||||
| V | 46° | 36.5° | 31.4° | ||||
| M.o.D | 0.1m | Object Dimension at M.o.D | 1/1.8" | 128.67 mm x 85.78mm | |||
| Length (mm) | 98.7 | 1/2.3" | 112.39mm x 80.56mm | ||||
| Flange Back Length | 17.526mm in Air | ||||||
| Effective Lens Aperture |
Front | φ18.12mm | Operating Temperature | -10°C — 50°C | |||

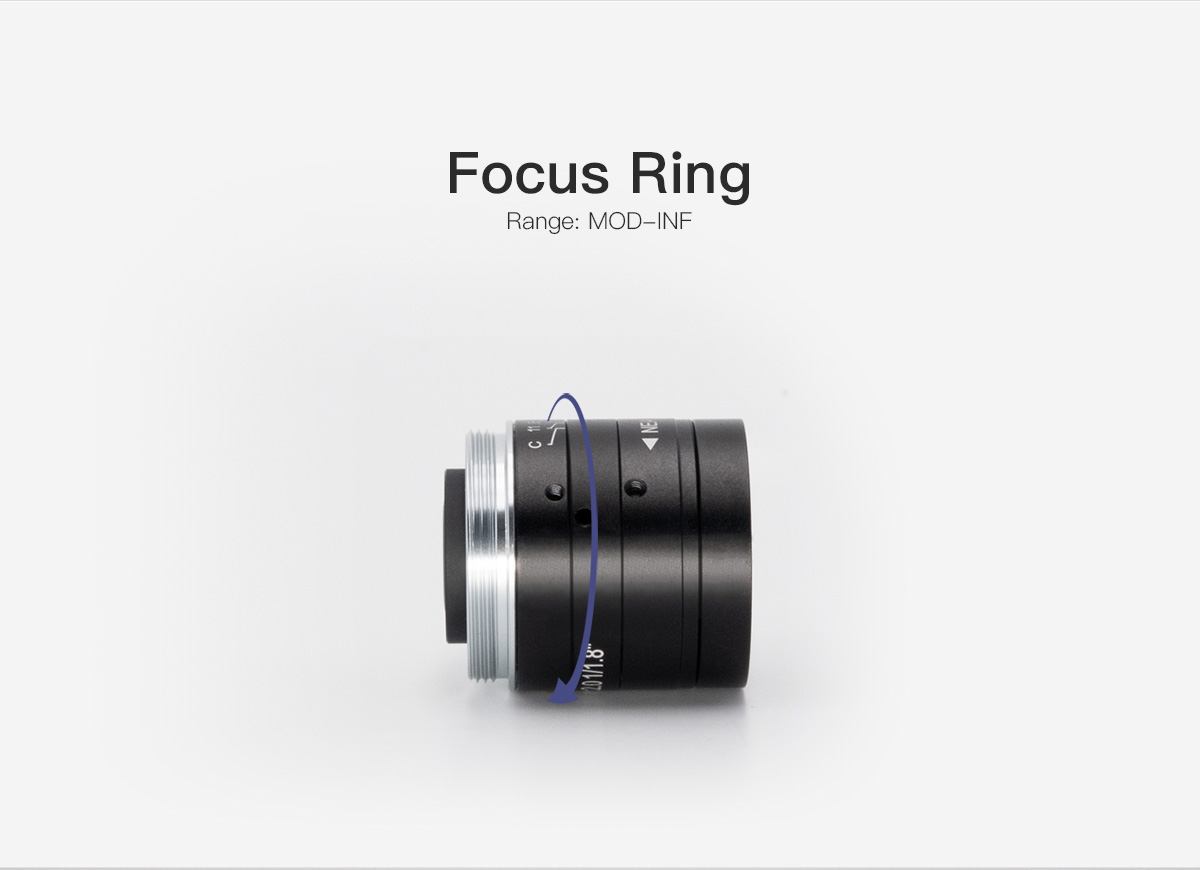

| Rear | φ5.81mm | Operation of Focus | Range | MOD-INF | |||

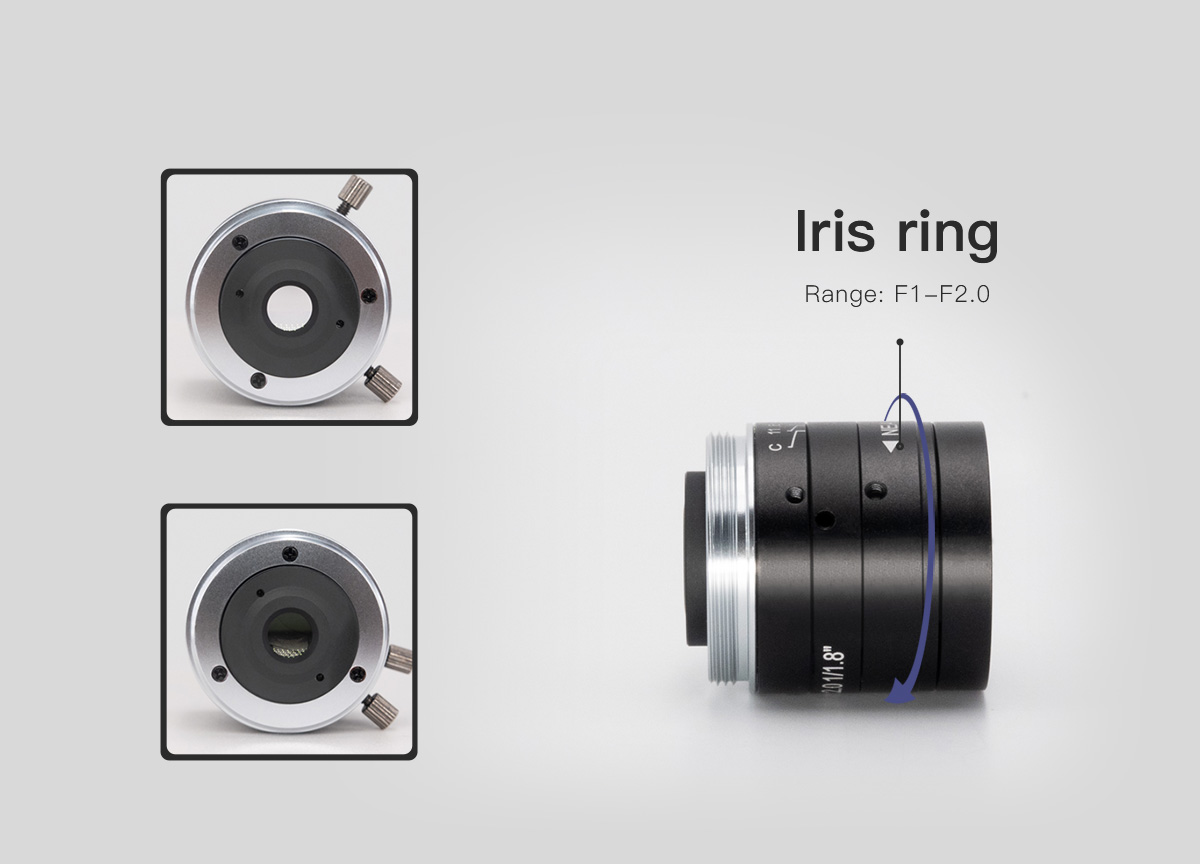

| Spectral Transmission | AT 436nm-656nmT≥85% | Operation of Iris | Range | F2.8 - F16 | |||

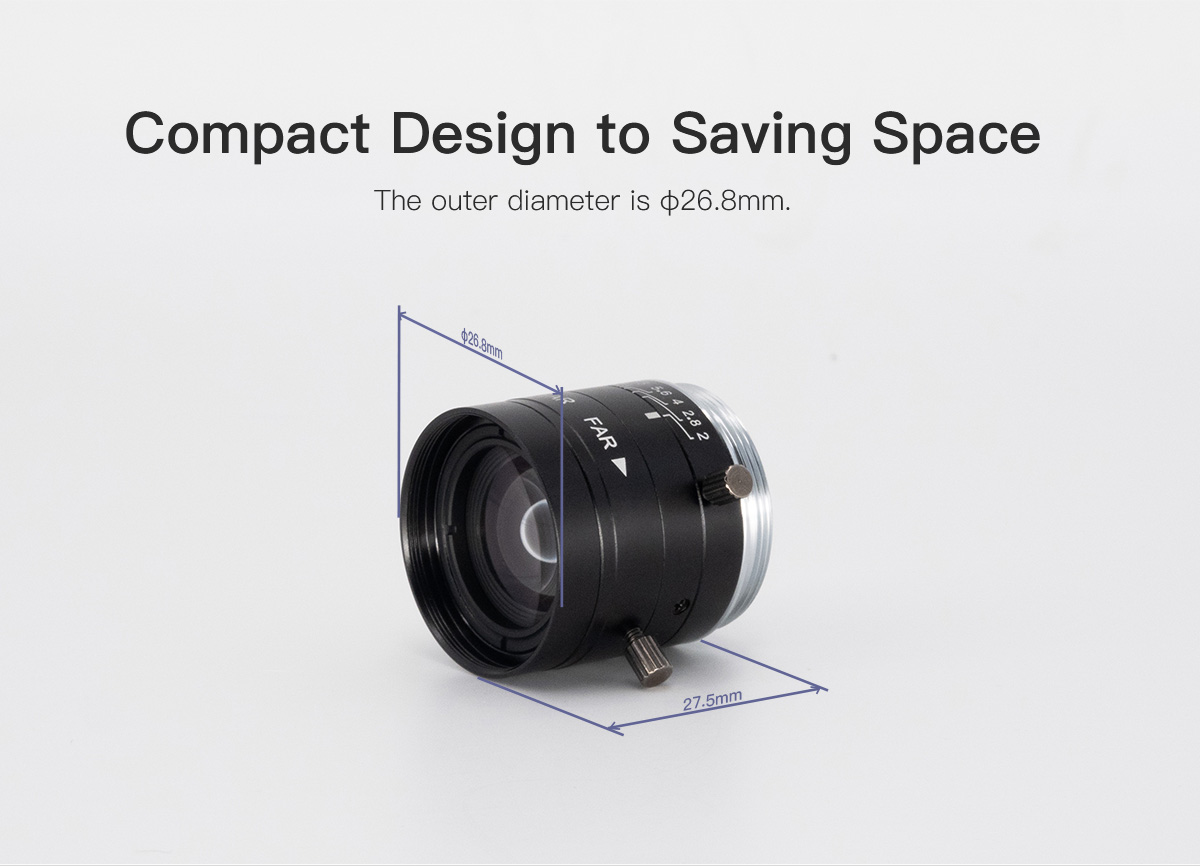

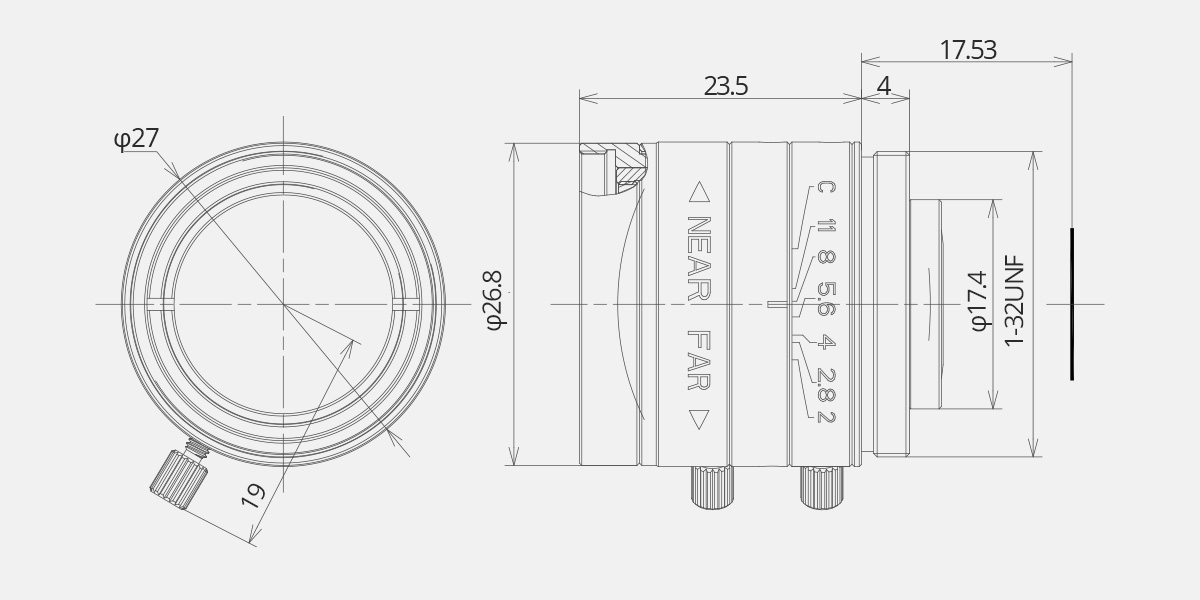

Dimensions

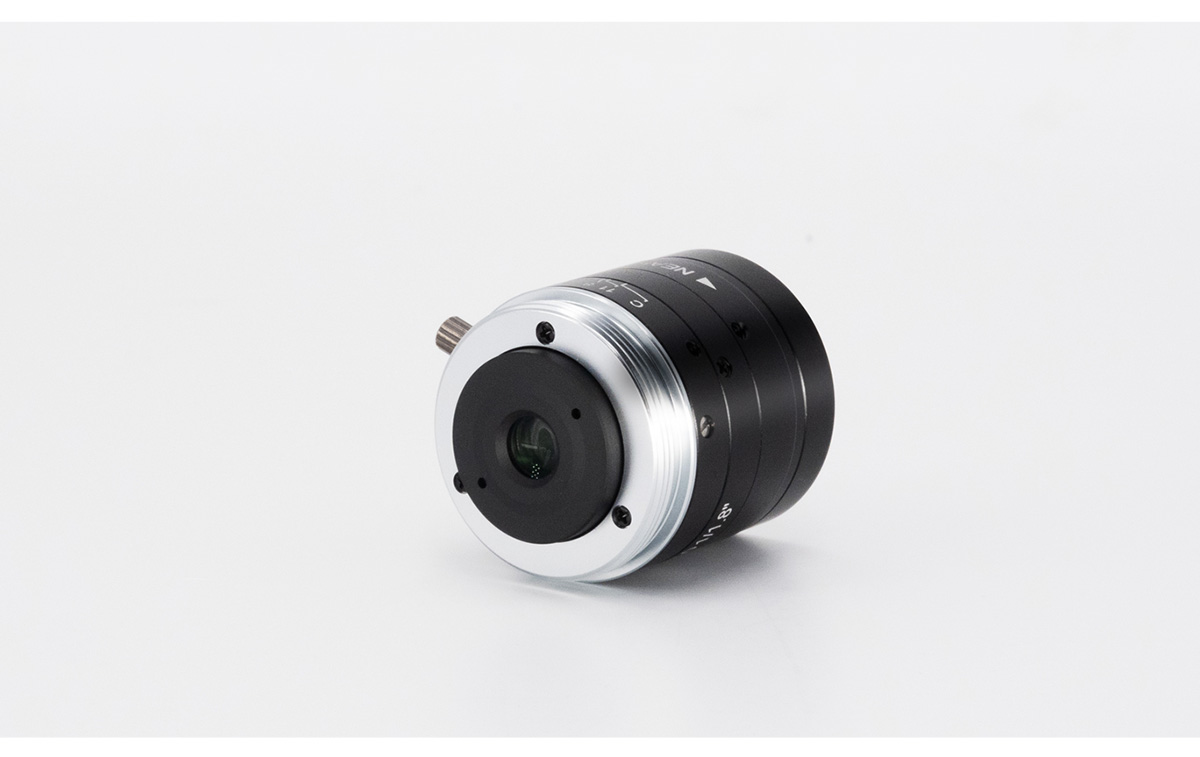

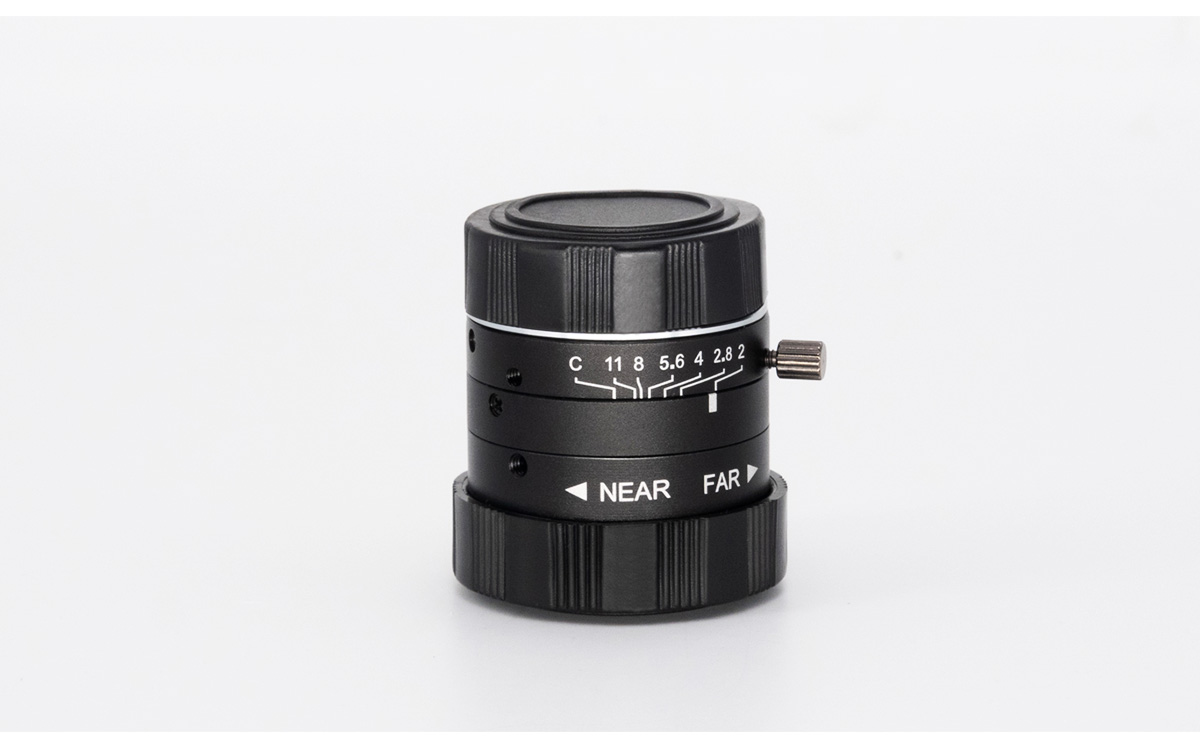

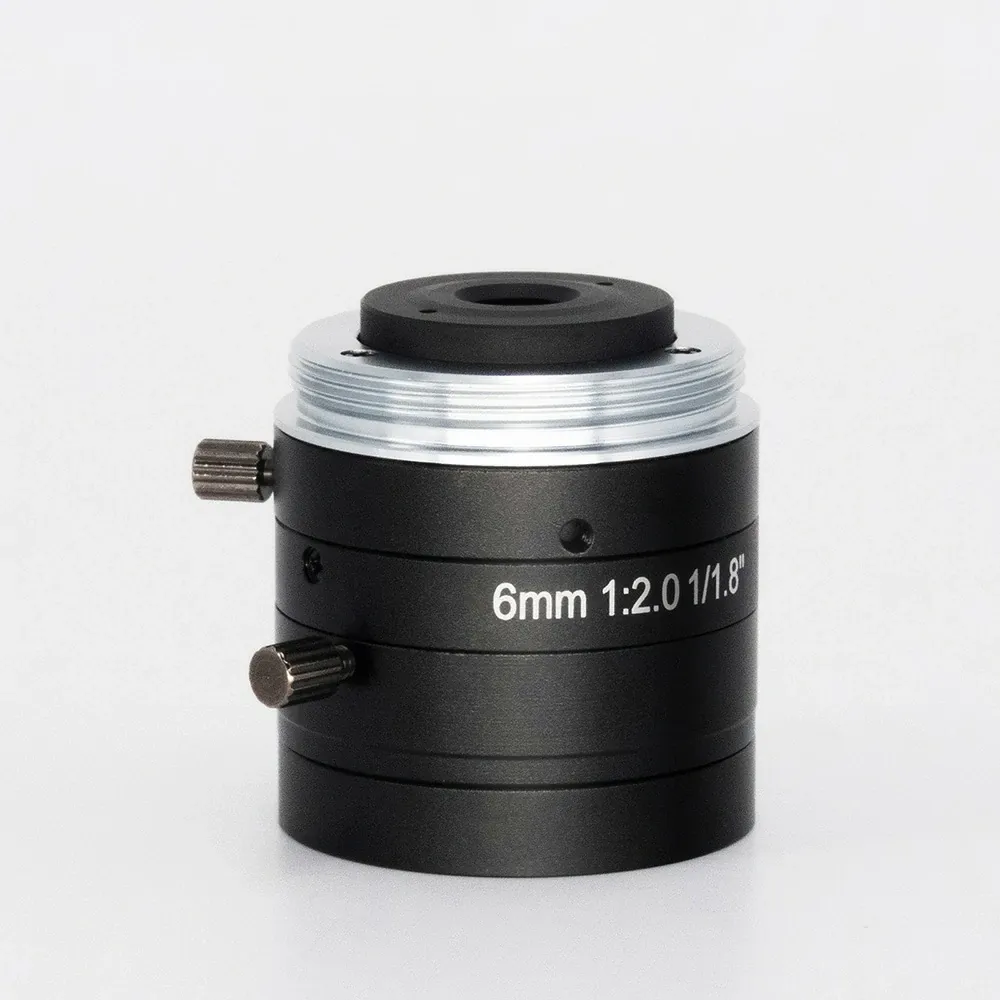

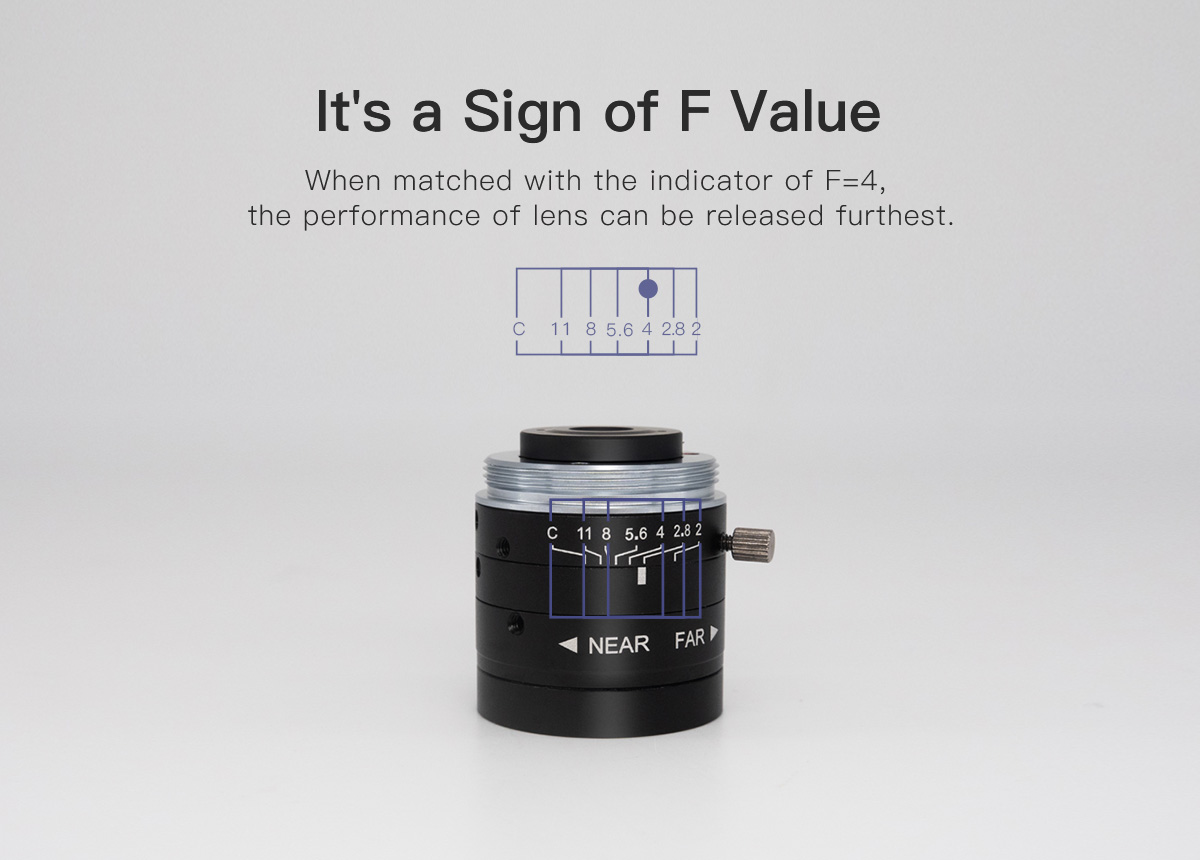

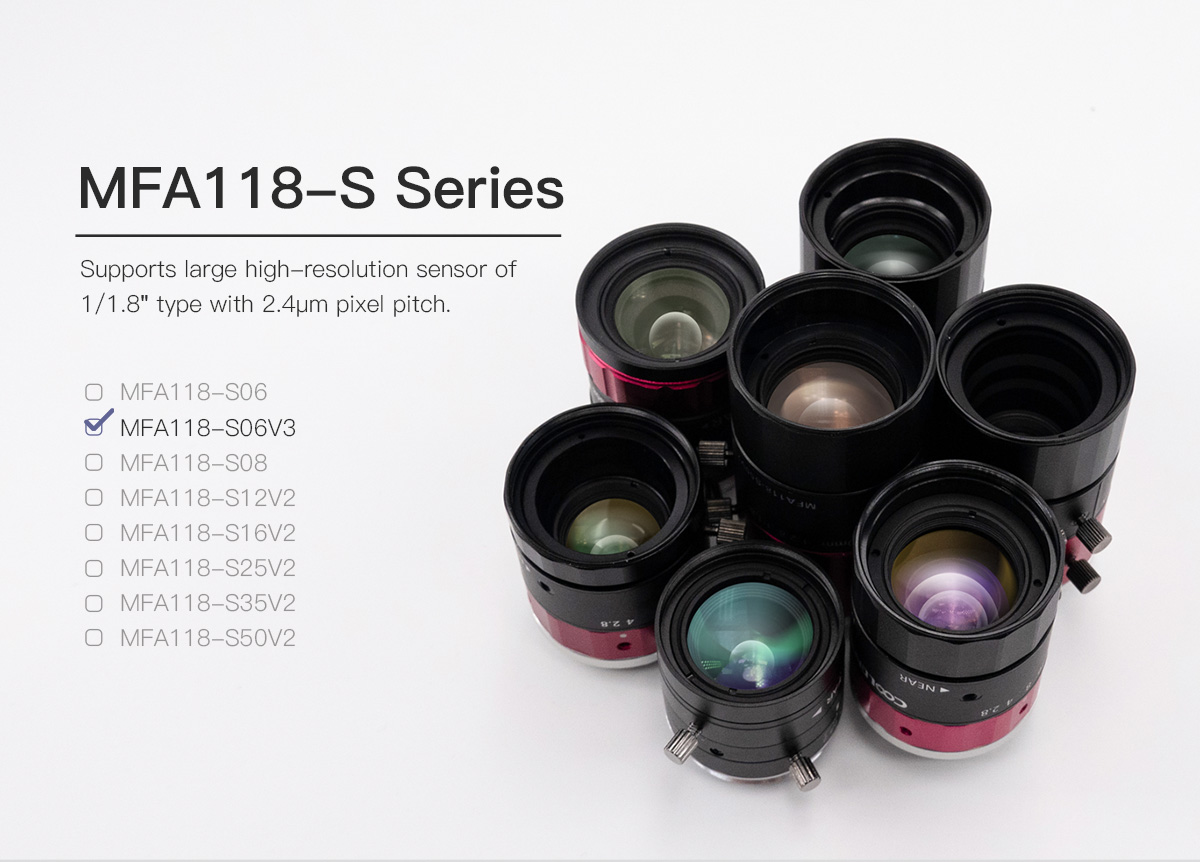

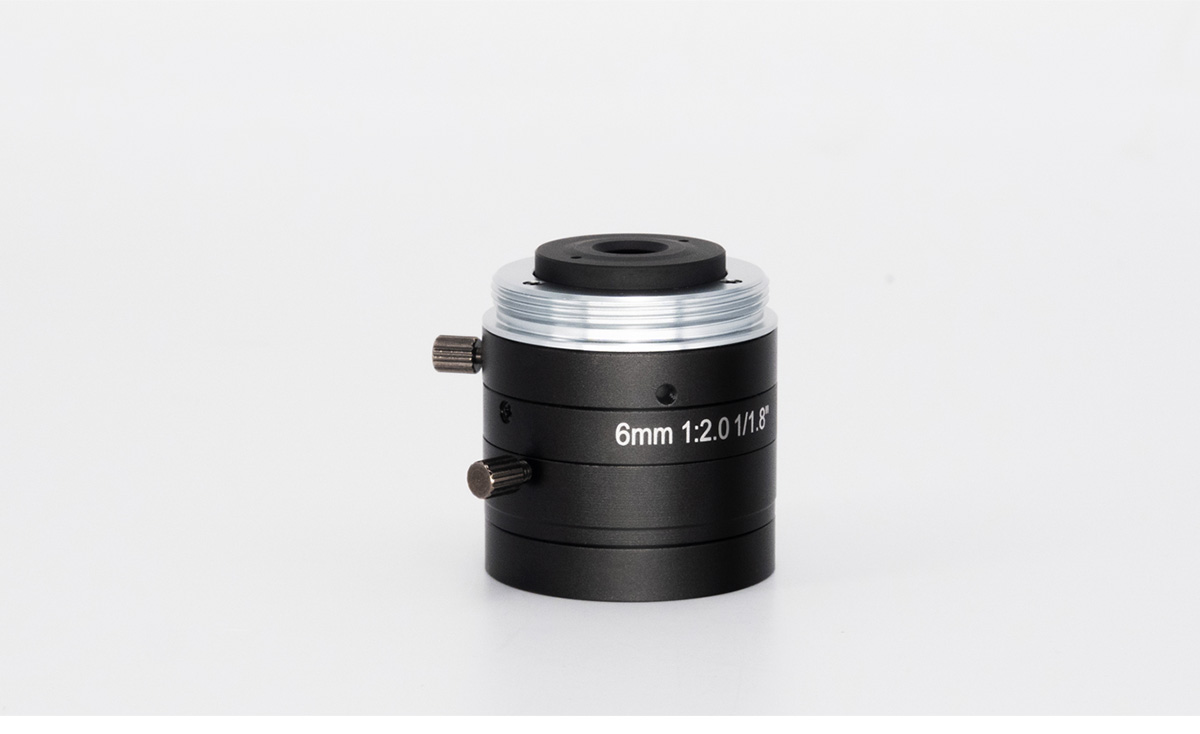

Product Photograph
