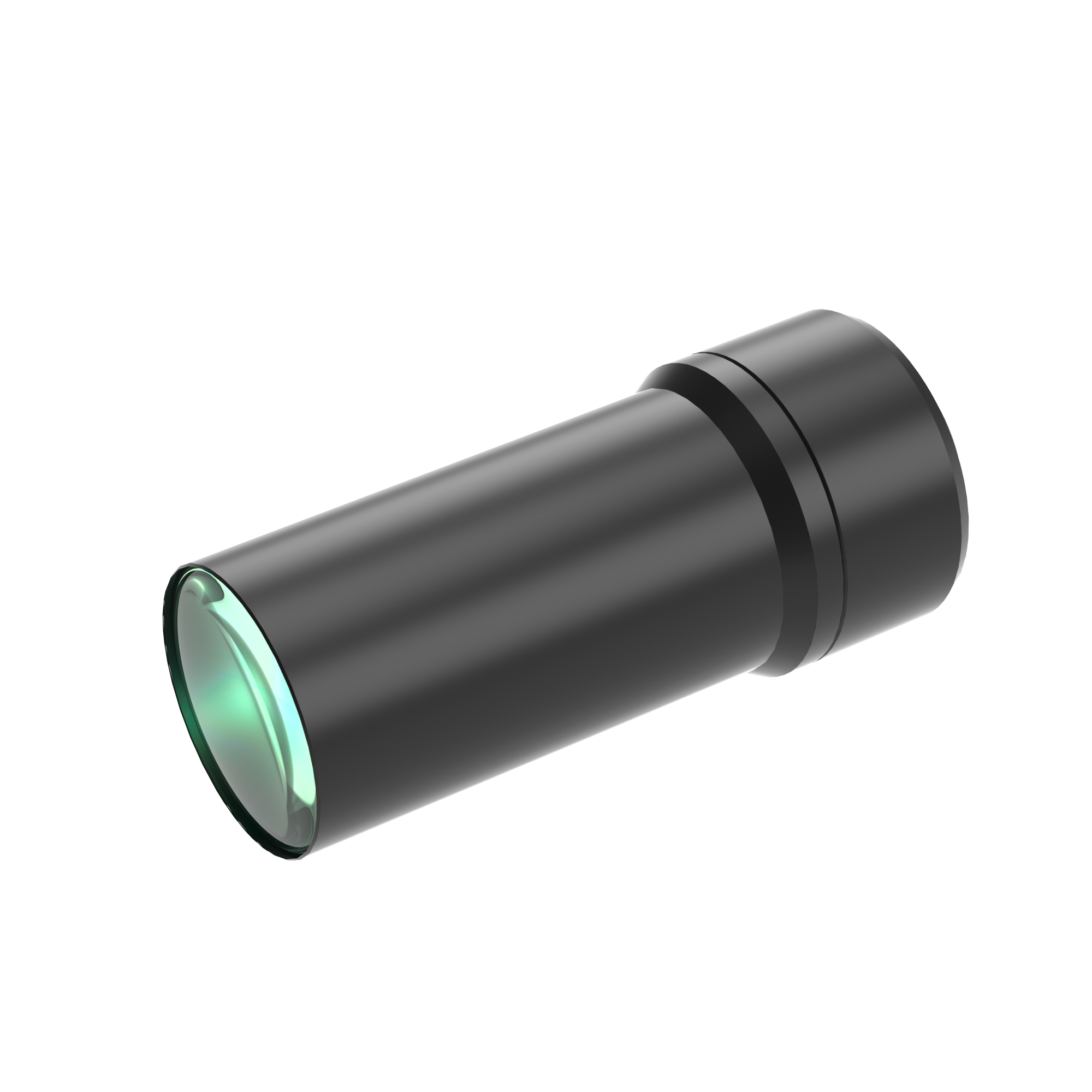

1/1.8" 45.71mm Fixed Magnification Focal Length Lens | WWT118-10-76 COOLENS®

$95.00 USD
Shipping calculated at checkout.
Quantity
1/1.8" 45.71mm Fixed Magnification Focal Length Lens | WWT118-10-76 COOLENS®-OKLAB

Description

Model NO. WWT118-10-76 Image Circle Diameter (Φmm) 9(1/1.8")
Focal Length(mm) 45.71 Magnification(x) 1
Working Distance(mm) 76 MTF30 (lp/mm) 106
Type Fixed Magnification Focal Length Mount C
NA 0.0587 Best Aperture(f/#) 8.5
Object Resolution(μm) 5.7 Depth of Field(mm) 0.7
TV Distortion -0.0173 Length (mm) 89.4
Measured Depth of Field (mm) 0.2 Filter Screw Size M30x0.5
Field of View (mm x mm)
1/1.8”（7.13x5.37） 7.13x5.37
1/1.8”（7.43x4.9） 7.43x4.9

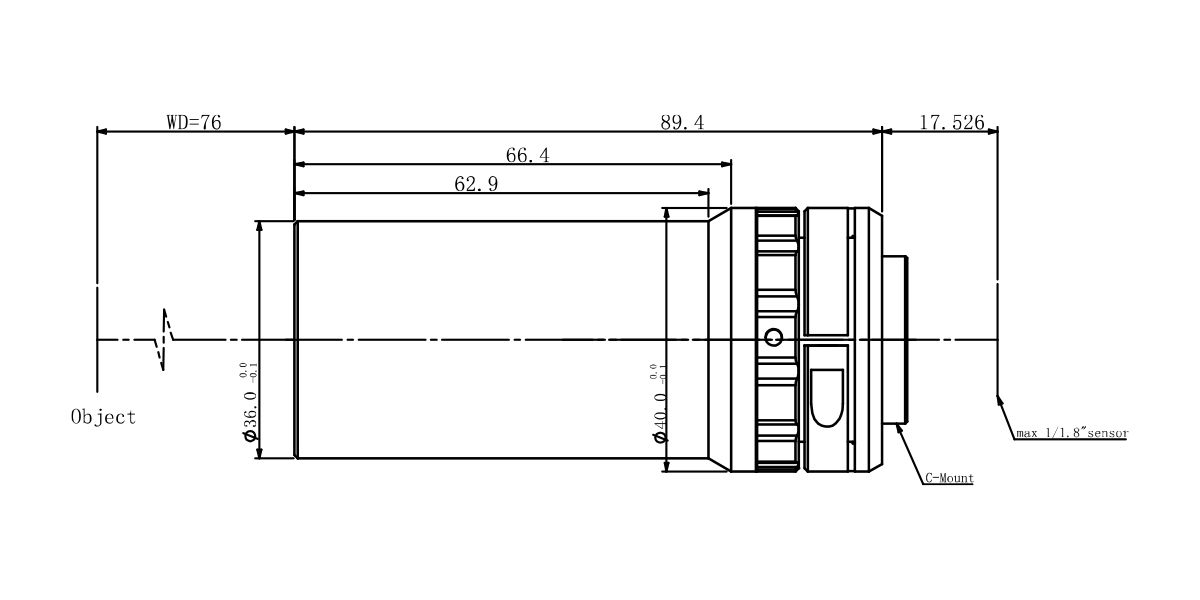

Dimensions

Naming Rule

  • Description

Model NO. WWT118-10-76 Image Circle Diameter (Φmm) 9(1/1.8")
Focal Length(mm) 45.71 Magnification(x) 1
Working Distance(mm) 76 MTF30 (lp/mm) 106
Type Fixed Magnification Focal Length Mount C
NA 0.0587 Best Aperture(f/#) 8.5
Object Resolution(μm) 5.7 Depth of Field(mm) 0.7
TV Distortion -0.0173 Length (mm) 89.4
Measured Depth of Field (mm) 0.2 Filter Screw Size M30x0.5
Field of View (mm x mm)
1/1.8”（7.13x5.37） 7.13x5.37
1/1.8”（7.43x4.9） 7.43x4.9

Dimensions

Naming Rule
