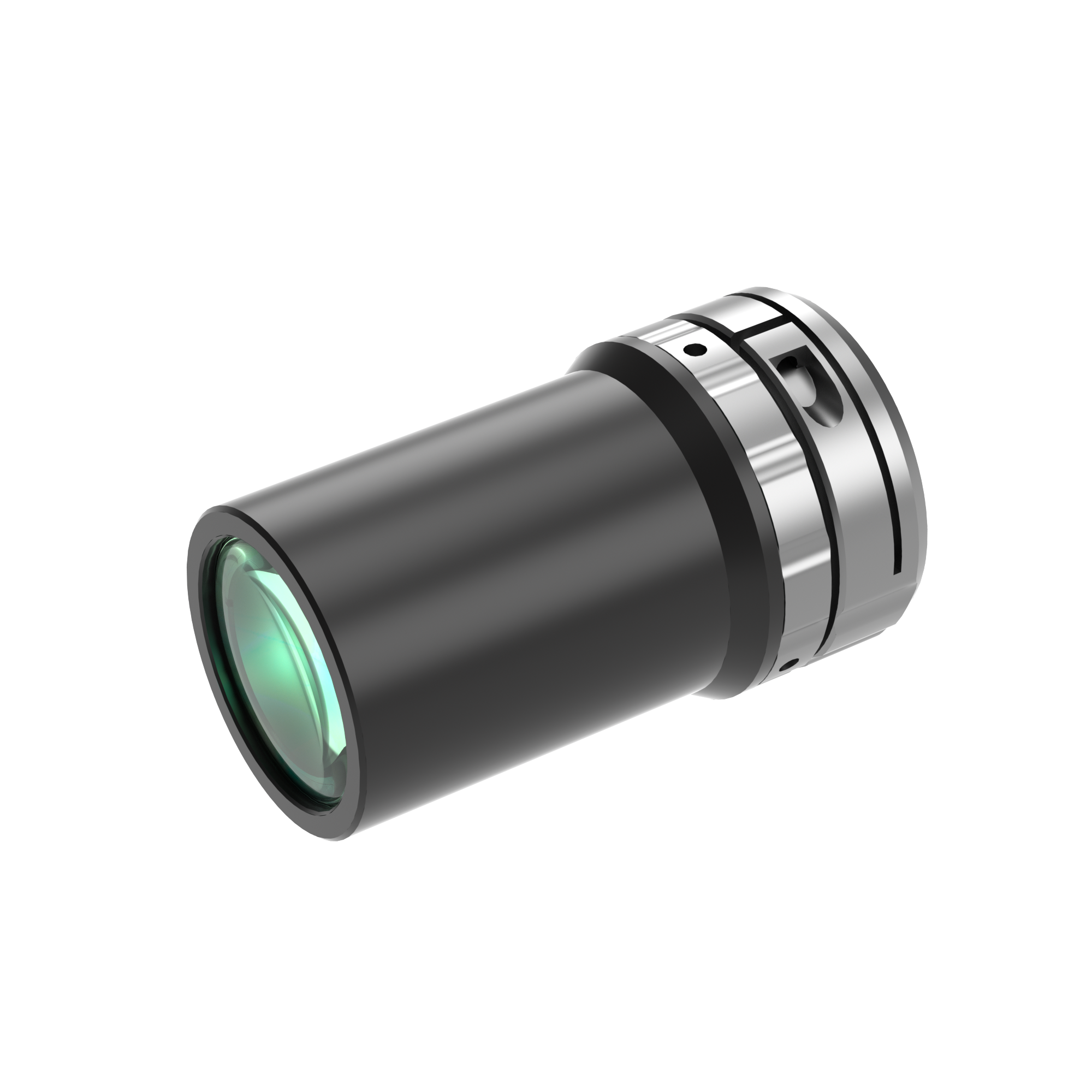

| Model NO. |
WWT118-055-113 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Focal Length(mm) |
45.37 |
Magnification(x) |
0.55 |
| Working Distance(mm) |
115 |
MTF30 (lp/mm) |
82 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0394 |
Best Aperture(f/#) |
7 |
| Object Resolution(μm) |
10.4 |
Depth of Field(mm) |
3.2 |
| TV Distortion |
0.01 |
Length (mm) |
68.1 |
| Measured Depth of Field (mm) |
0.6 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
12.96x9.76 |
| 1/1.8”（7.43x4.9） |
13.51x8.91 |

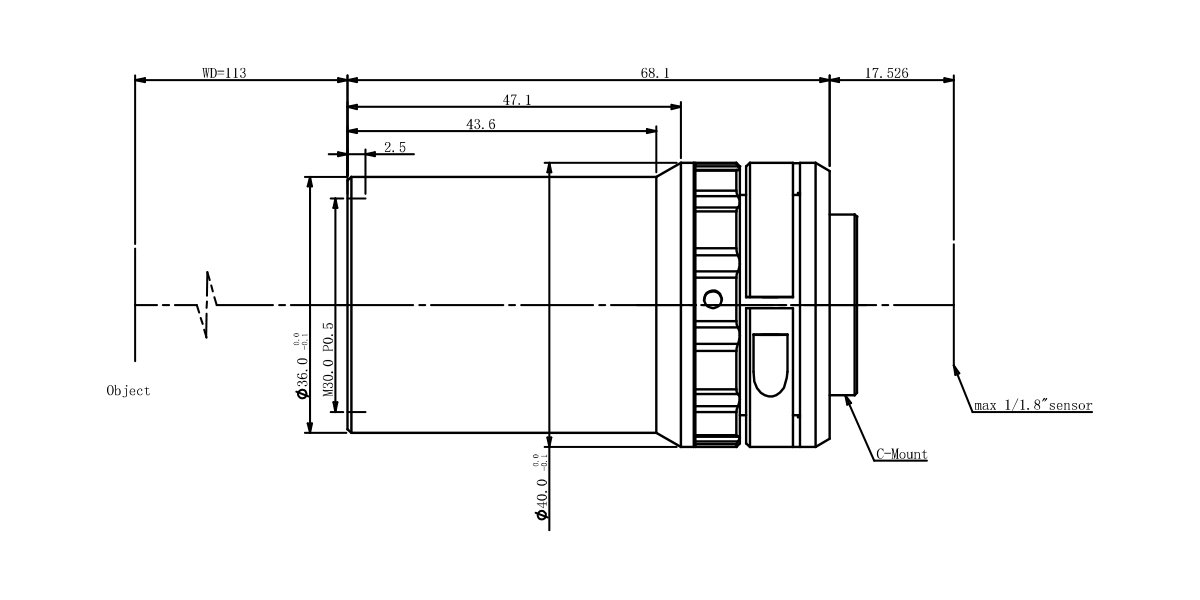

Dimensions
Naming Rule
