| Model NO. |
WWT118-01-252 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Focal Length(mm) |
25.04 |
Magnification(x) |
0.1 |
| Working Distance(mm) |
252 |
MTF30 (lp/mm) |
172 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0089 |
Best Aperture(f/#) |
5.6 |
| Object Resolution(μm) |
37.5 |
Depth of Field(mm) |
44.8 |
| TV Distortion |
-0.015 |
Length (mm) |
31 |
| Measured Depth of Field (mm) |
13 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
71.3x53.7 |
| 1/1.8”（7.43x4.9） |
74.3x49.0 |

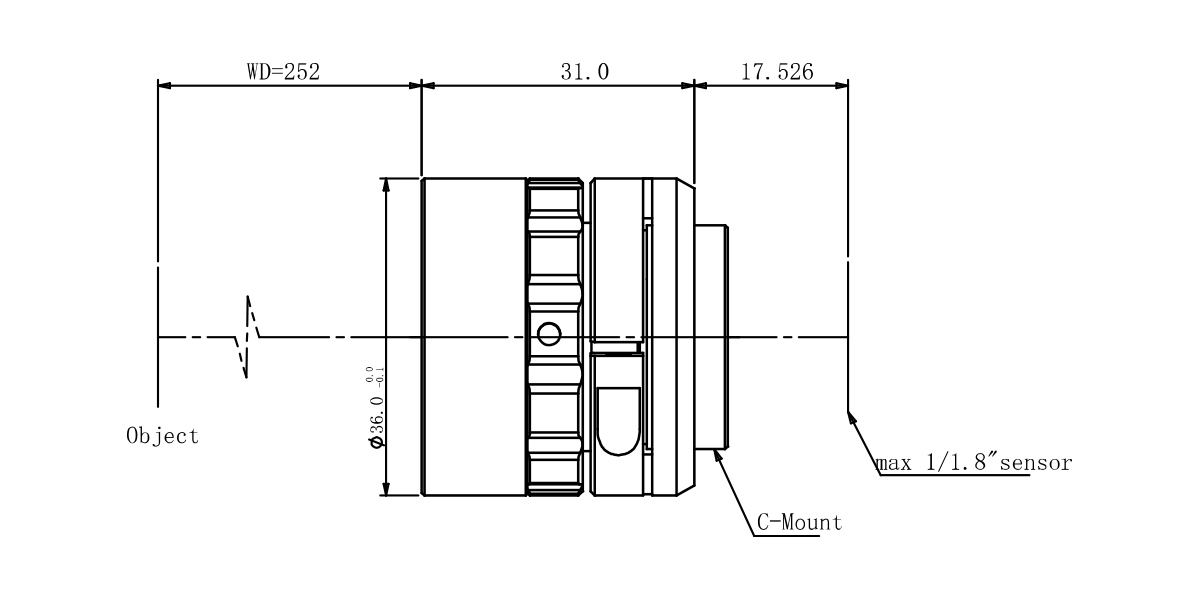

Dimensions
Naming Rule
