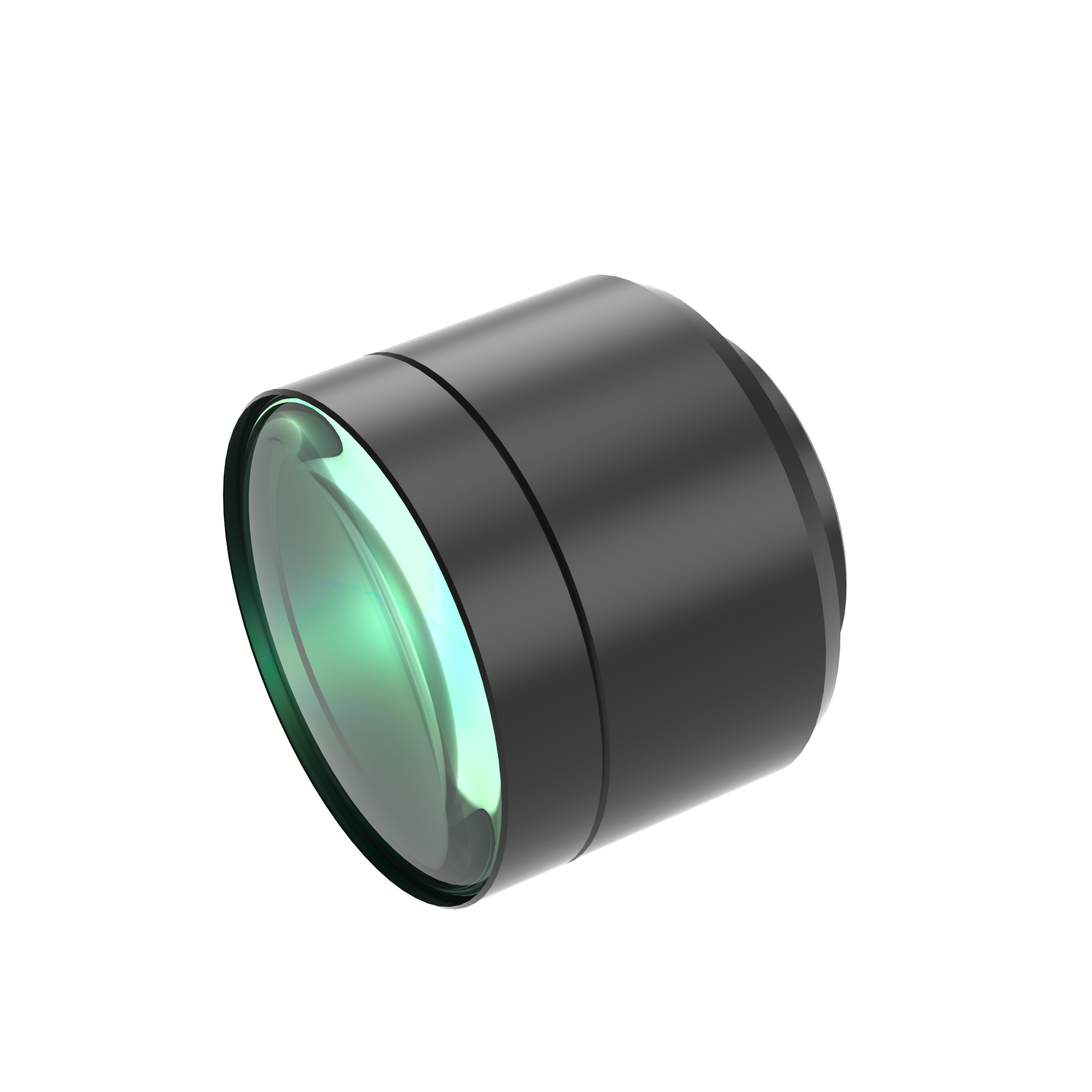

| Model NO. |
WWT118-04-26 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Focal Length(mm) |
15.9 |
Magnification(x) |
0.4 |
| Working Distance(mm) |
26 |
MTF30 (lp/mm) |
116 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0333 |
Best Aperture(f/#) |
6 |
| Object Resolution(μm) |
10.1 |
Depth of Field(mm) |
3 |
| TV Distortion |
-0.3976 |
Length (mm) |
26.6 |
| Measured Depth of Field (mm) |
0.8 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
17.8x13.4 |
| 1/1.8”（7.43x4.9） |
18.6x12.3 |
