| Model NO. |
WWT118-02-66 |
Image Circle Diameter (Φmm) |
9(1/1.8") |
| Focal Length(mm) |
15.85 |
Magnification(x) |
0.2 |
| Working Distance(mm) |
66 |
MTF30 (lp/mm) |
137.8 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0167 |
Best Aperture(f/#) |
6 |
| Object Resolution(μm) |
20.1 |
Depth of Field(mm) |
12 |
| TV Distortion |
-0.2017 |
Length (mm) |
23.9 |
| Measured Depth of Field (mm) |
4 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
35.7x26.9 |
| 1/1.8”（7.43x4.9） |
37.2x24.5 |

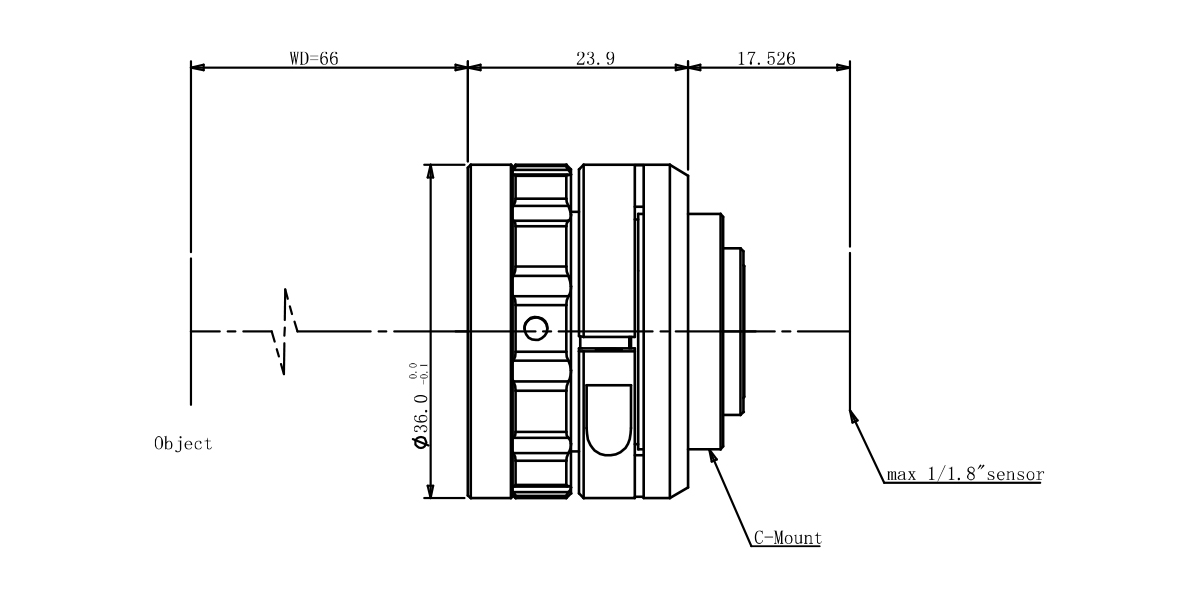

Dimensions
Naming Rule
