| Model NO. | WH05-130A | Image Circle Diameter (Φmm) | 9(1/1.8") | ||||
| Magnification(x) | 0.5 | Working Distance(mm) | 130 | ||||
| NA | 0.0118 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 21.1 | ||||
| MTF30 (lp/mm) | 50 | Object Resolution(μm) | 28.4 | ||||
| Depth of Field(mm) | 6.8 | Distortion Typical(% max) | 0.6 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 109.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3.6 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/3"(4.8x3.6) | 9.6x7.2 | ||||||
| 1/2"(6.4x4.8) | 12.8x9.6 | ||||||
| 1/1.8"(7.13x5.37) | 14.3x10.7 | ||||||

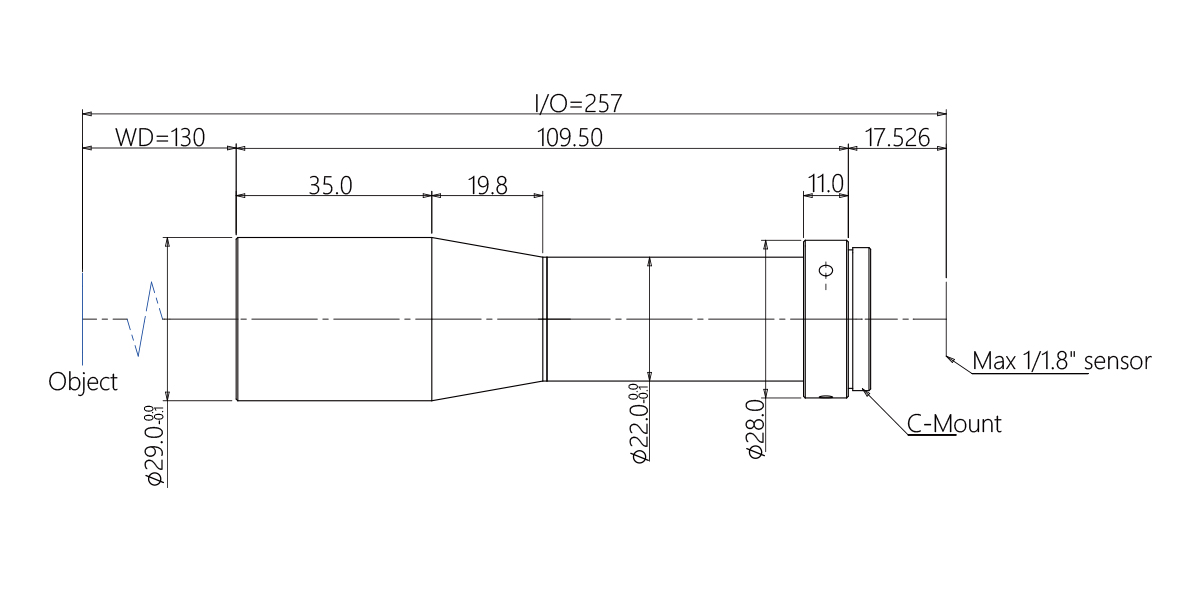

Dimensions
Naming Rule
