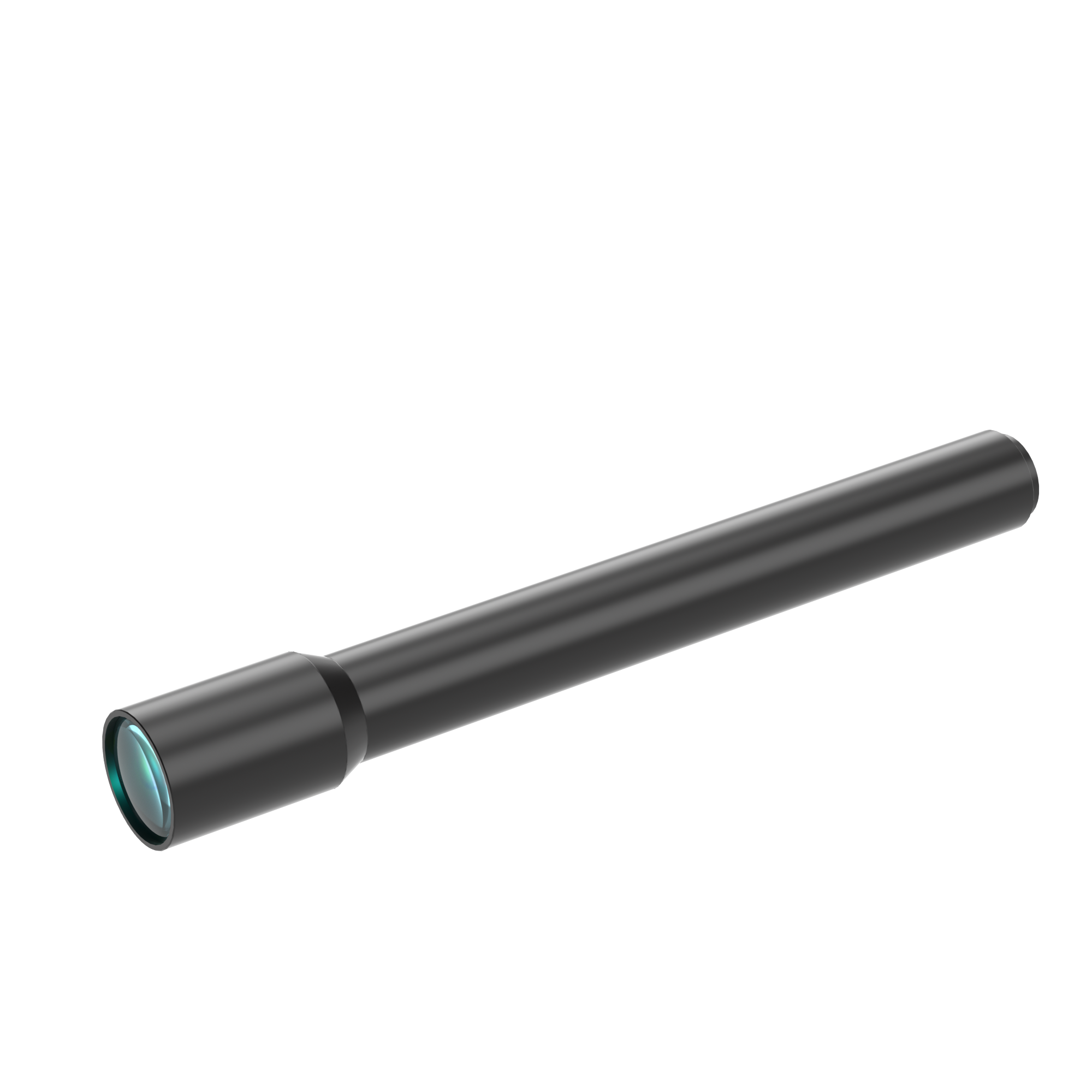

1/1.7" 0.4X Industrial Lenses | WH04-550A-117IR COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
1/1.7" 0.4X Industrial Lenses | WH04-550A-117IR COOLENS®-OKLAB

Description

Model NO. WH04-550A-117IR Image Circle Diameter (Φmm) 9.4(1/1.7")
Magnification(x) 0.4 Working Distance(mm) 550
NA 0.0201 Type Fixed Magnification
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 65 Object Resolution(μm) 25.8
Depth of Field(mm) 5 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) Non-telecentric Length (mm) 281.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M35x0.5



Naming Rule



  • Description

Model NO. WH04-550A-117IR Image Circle Diameter (Φmm) 9.4(1/1.7")
Magnification(x) 0.4 Working Distance(mm) 550
NA 0.0201 Type Fixed Magnification
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 65 Object Resolution(μm) 25.8
Depth of Field(mm) 5 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) Non-telecentric Length (mm) 281.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M35x0.5



Naming Rule
