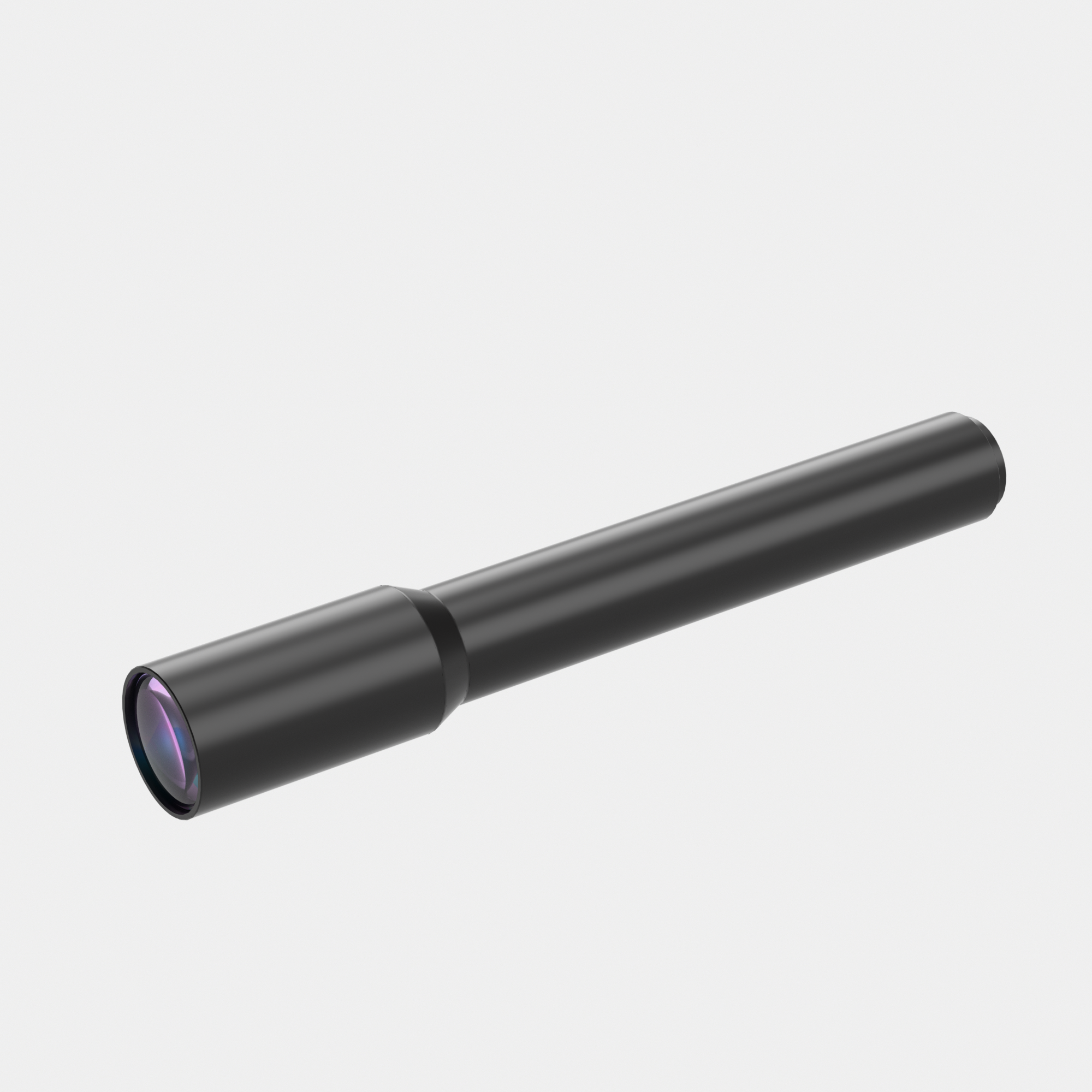

| Model NO. | WH03-640A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 640 | ||||
| NA | 0.0138 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10.8 | ||||
| MTF30 (lp/mm) | 90 | Object Resolution(μm) | 24.3 | ||||
| Depth of Field(mm) | 9.6 | Distortion Typical(% max) | 0.005 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 241.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.7"(7.53×5.64) | 18.8×14.1 | ||||||
| 1/2"(6.44×4.62) | 16.1×11.6 | ||||||
| 1/1.8"(7.1×5.3) | 17.8×13.3 | ||||||

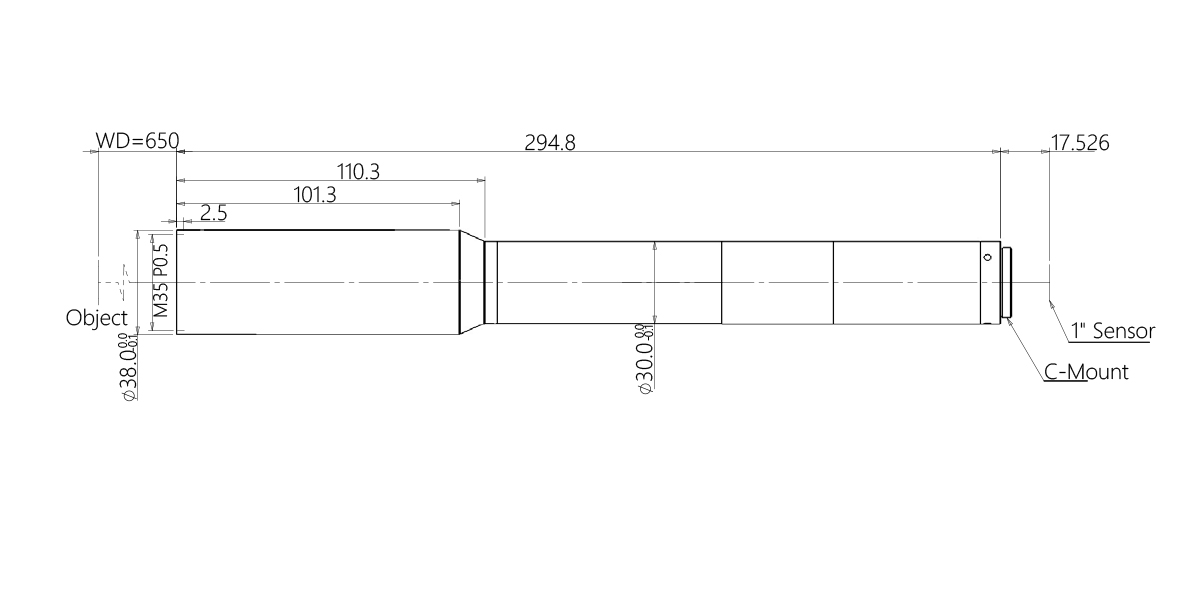

Dimensions
Naming Rule
