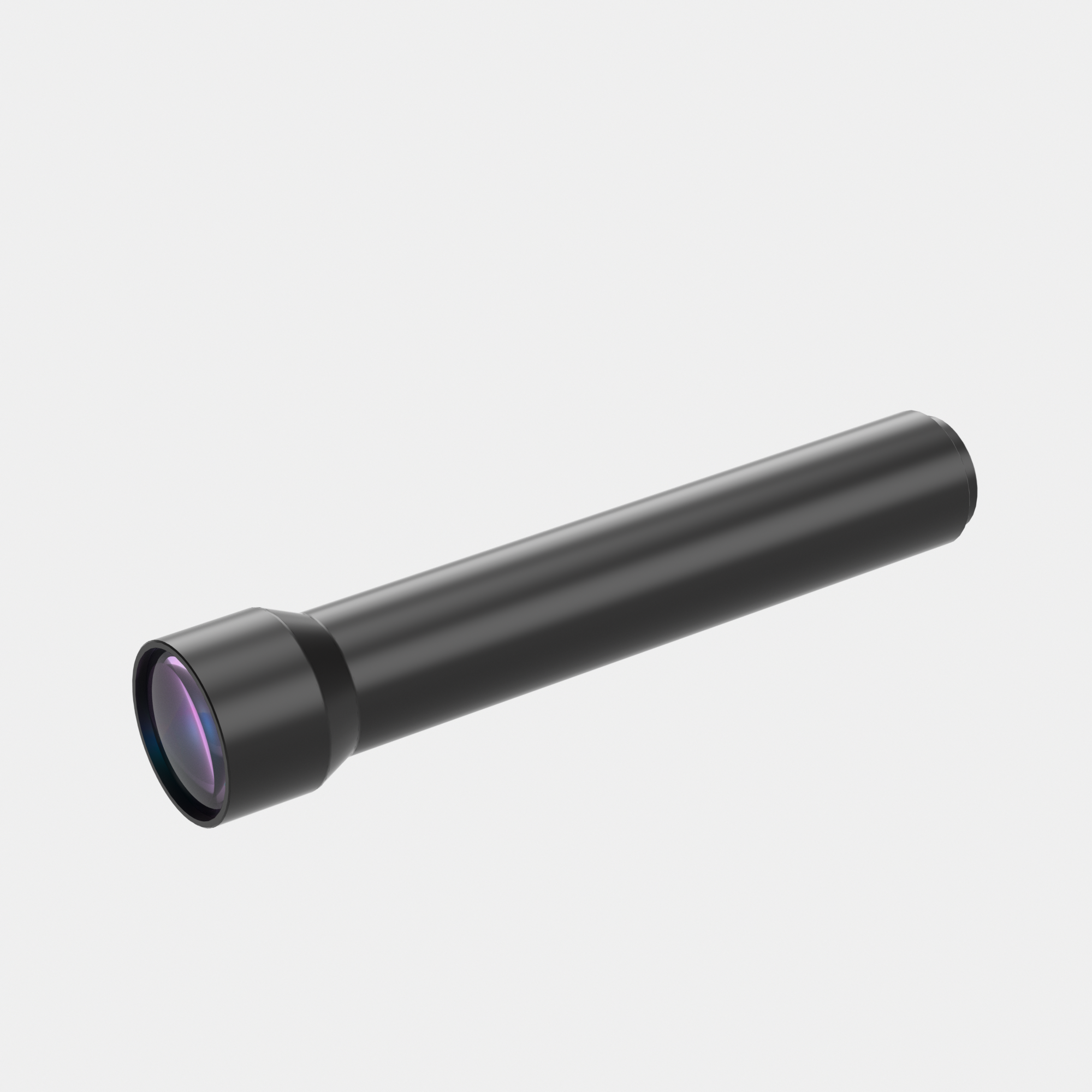

| Model NO. | WH03-550A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 550 | ||||
| NA | 0.0125 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 12 | ||||
| MTF30 (lp/mm) | 80 | Object Resolution(μm) | 26.9 | ||||
| Depth of Field(mm) | 10.7 | Distortion Typical(% max) | 0.005 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 182.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 5.6 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.44×4.62) | 21.47×15.4 | ||||||
| 1/1.8"(7.1×5.3) | 23.67×17.67 | ||||||
| 1/1.7"(7.53×5.64) | 25.1×18.8 | ||||||
Dimensions
Naming Rule
