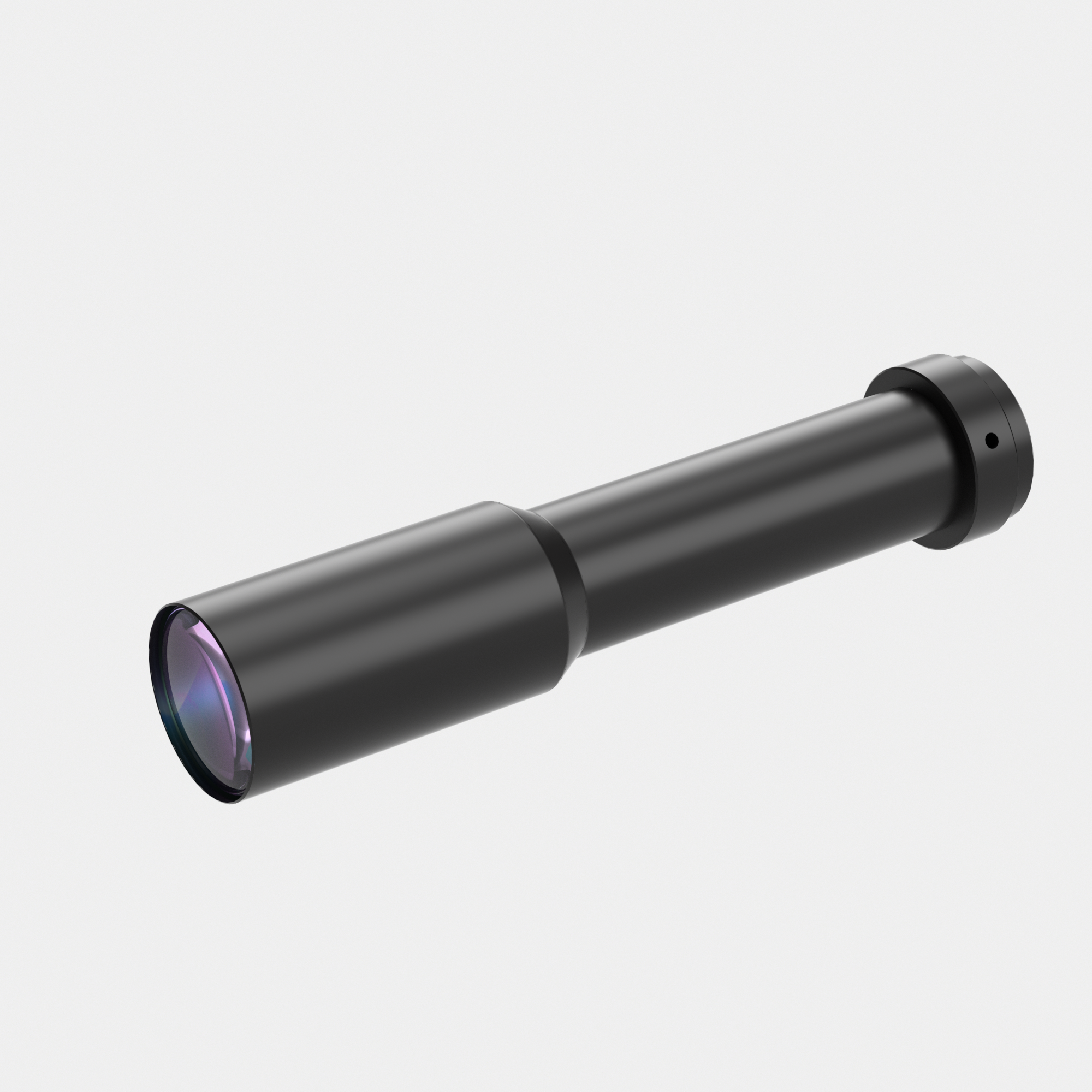

Model NO. | WH02-330A-117 | Image Circle Diameter (Φmm) | 9.4(1/1.7") | ||||
Magnification(x) | 0.2 | Working Distance(mm) | 450 | ||||
NA | 0.0125 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 8 | ||||
MTF30 (lp/mm) | 105 | Object Resolution(μm) | 26.9 | ||||
Depth of Field(mm) | 16 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 129 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | / |

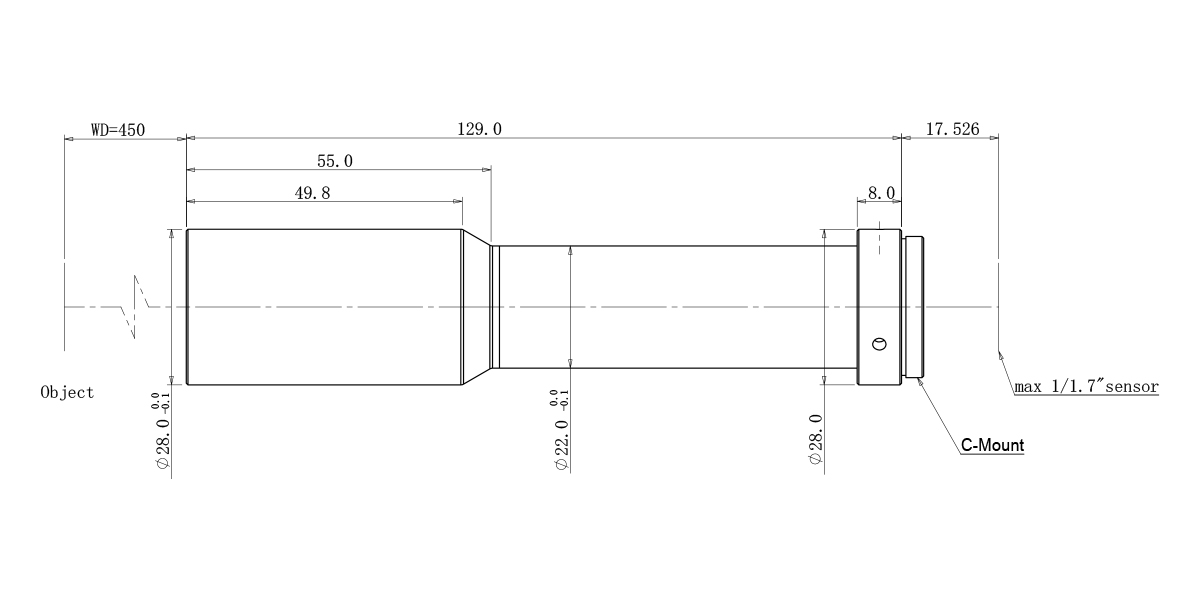

Dimensions
Naming Rule
