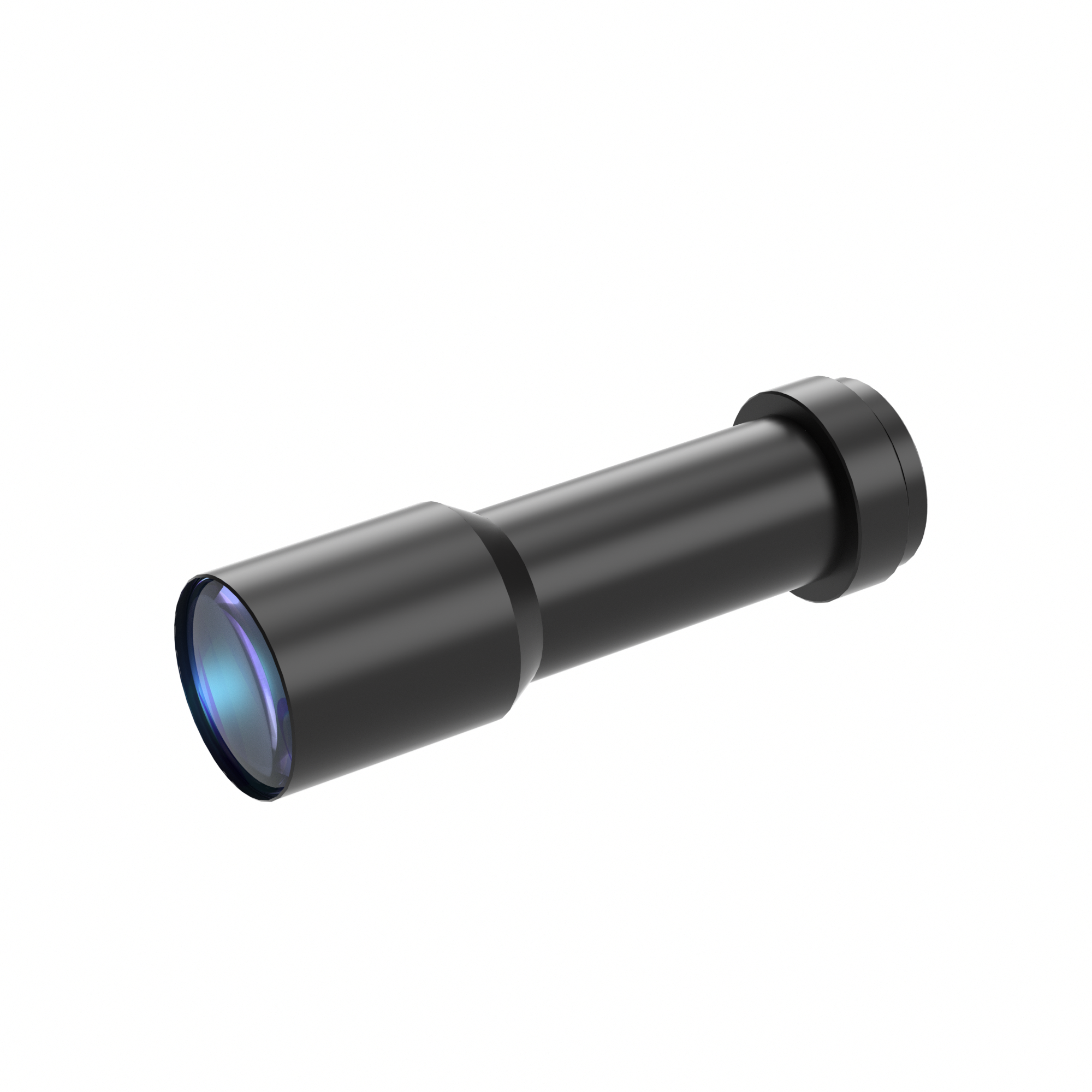

1/1.7" 0.2X Industrial Lenses | WH02-330A-117 COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
1/1.7" 0.2X  Industrial Lenses | WH02-330A-117 COOLENS®-OKLAB

Description

Model NO. WH02-330A-117 Image Circle Diameter (Φmm) 9.4(1/1.7")
Magnification(x) 0.2 Working Distance(mm) 330
NA 0.0107 Type Fixed Magnification
Mount C Best Aperture(f/#) 9.4
MTF30 (lp/mm) 90 Object Resolution(μm) 31.4
Depth of Field(mm) 18.8 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 89.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/3"(4.8x3.6)  24.0x18.0
1/2"(6.4x4.8) 32.0x24.0
1/1.8"(7.13x5.37) 35.7x26.9

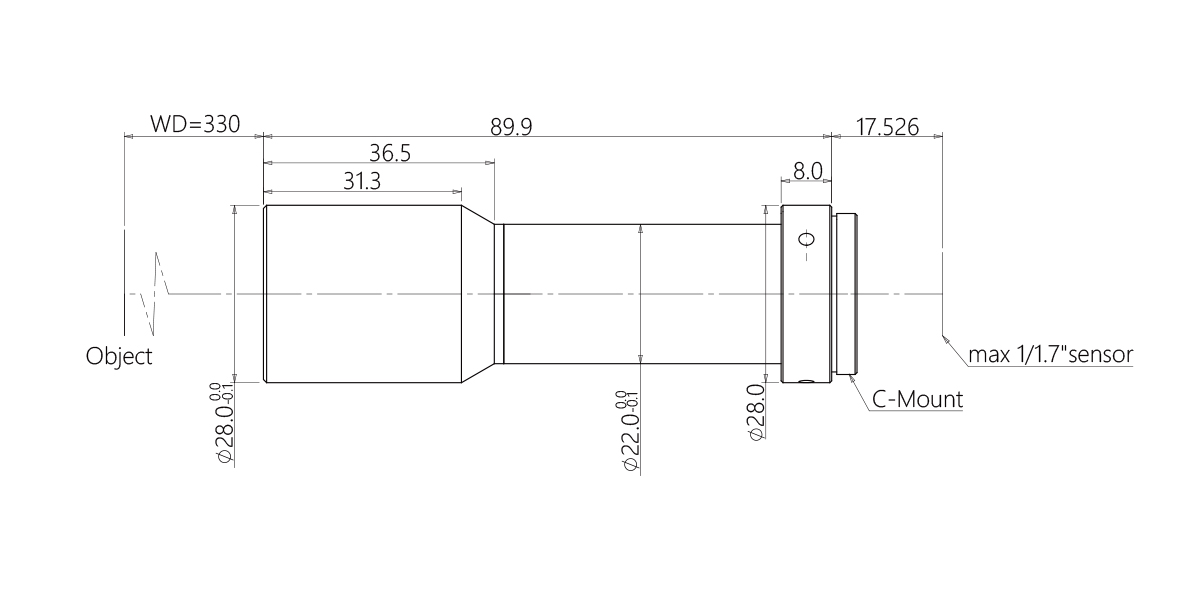

Dimensions

Naming Rule



  • Description

Model NO. WH02-330A-117 Image Circle Diameter (Φmm) 9.4(1/1.7")
Magnification(x) 0.2 Working Distance(mm) 330
NA 0.0107 Type Fixed Magnification
Mount C Best Aperture(f/#) 9.4
MTF30 (lp/mm) 90 Object Resolution(μm) 31.4
Depth of Field(mm) 18.8 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 89.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/3"(4.8x3.6)  24.0x18.0
1/2"(6.4x4.8) 32.0x24.0
1/1.8"(7.13x5.37) 35.7x26.9

Dimensions

Naming Rule
