  • 1/1.7" 0.125X Industrial Lenses | WH0125-580A-117 COOLENS®-OKLAB
1 / 1

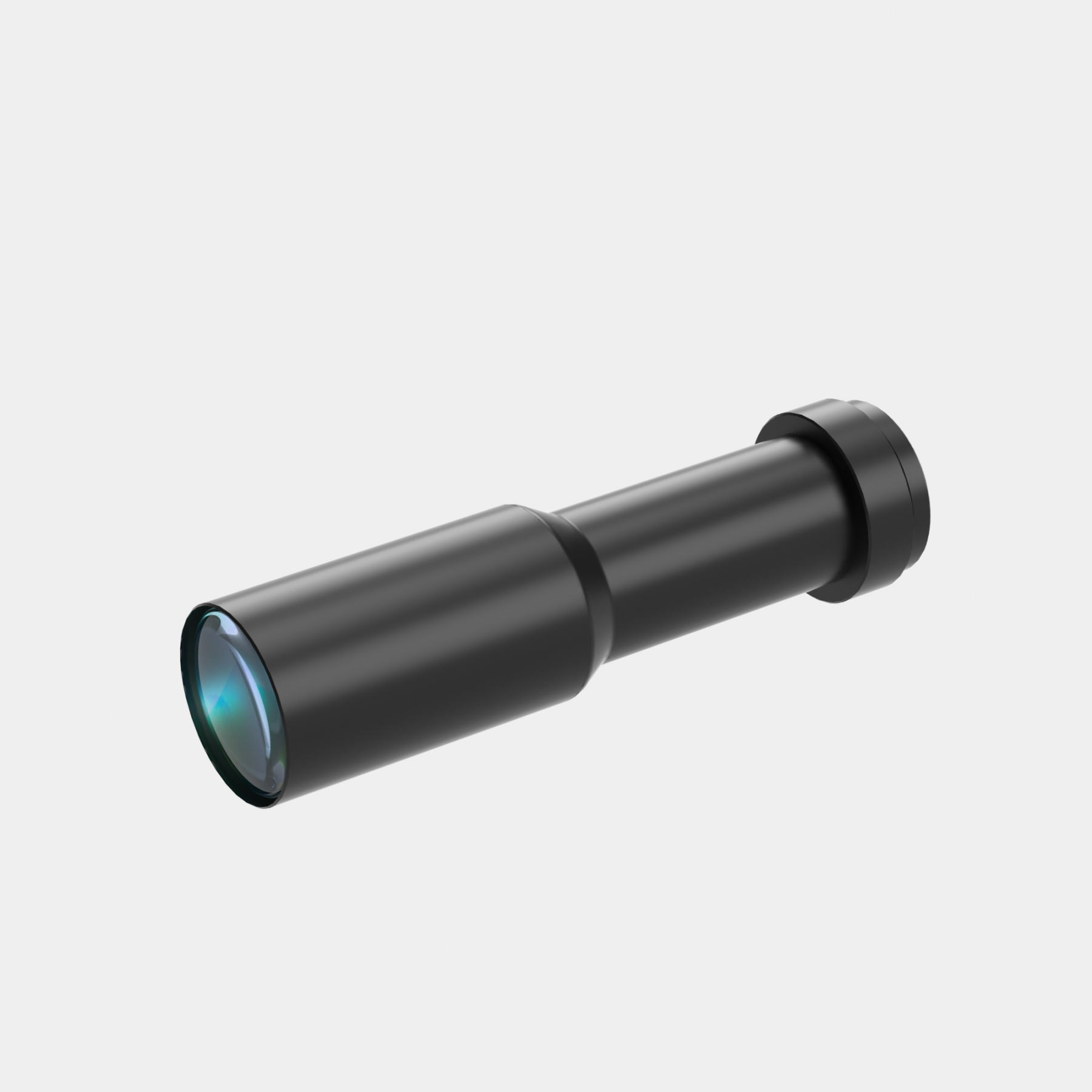

1/1.7" 0.125X Industrial Lenses | WH0125-580A-117 COOLENS®

WH0125-580A-117
$386.00 USD
Shipping calculated at checkout.
Quantity
1/1.7" 0.125X Industrial Lenses | WH0125-580A-117 COOLENS®-OKLAB

Description

Model NO. WH0125-580A-117 Image Circle Diameter (Φmm) 9.4(1/1.7")
Magnification(x) 0.125 Working Distance(mm) 580
NA 0.0063 Type Fixed Magnification
Mount C Best Aperture(f/#) 10
MTF30 (lp/mm) 95 Object Resolution(μm) 53.5
Depth of Field(mm) 51.2 Distortion Typical(% max) 0.01
Telecentricity Typical (°max) Non-telecentric Length (mm) 101.6
With Coaxial Illumination Port No Measured Depth of Field (mm) 16
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 51.2x38.4
1/1.8"(7.13x5.37) 57.0x43.0
1/1.7"(7.44x4.62) 59.52x35.96

Dimensions

Naming Rule



Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
