| Model NO. |
WH018-630A-110 |
Image Circle Diameter (Φmm) |
16(1") |
| Magnification(x) |
0.18 |
Working Distance(mm) |
630 |
| NA |
0.016 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
5.6 |
| MTF30 (lp/mm) |
162 |
Object Resolution(μm) |
21 |
| Depth of Field(mm) |
13.8 |
Distortion Typical(% max) |
0.02 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
110.9 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
4 |
| Filter Screw Size |
M32x0.5 |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
35.6x26.7 |
| 1/1.8"(7.13x5.37) |
39.6x29.8 |
| 2/3"(8.45x7.1) |
46.9x39.4 |
| 1"(12.43x9.83) |
69.1x54.6 |

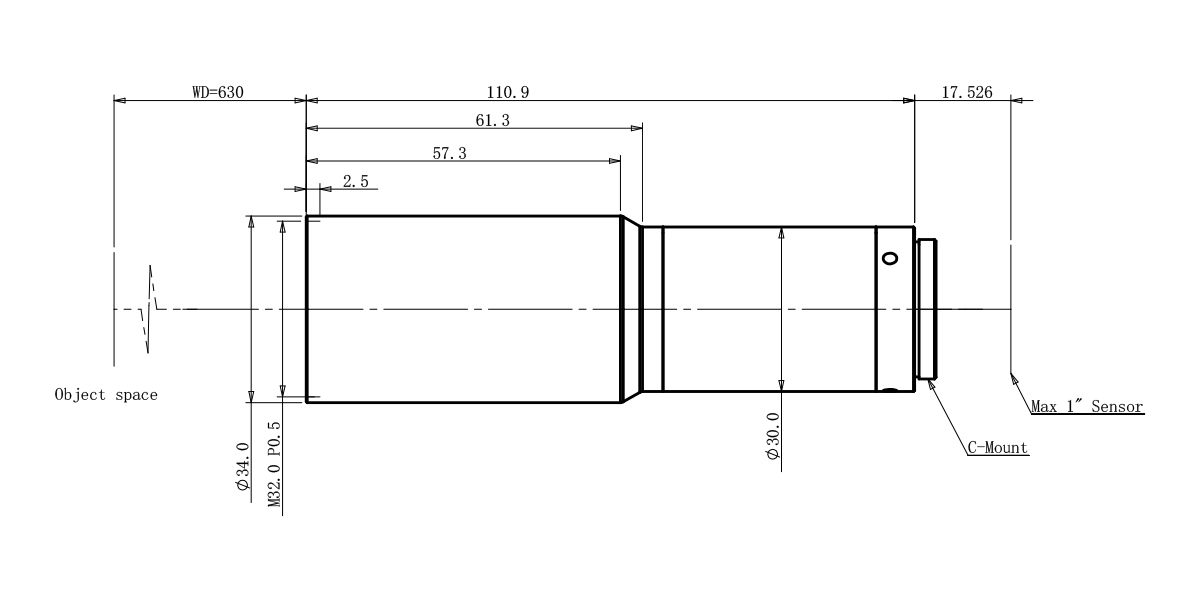

Dimensions
Naming Rule
