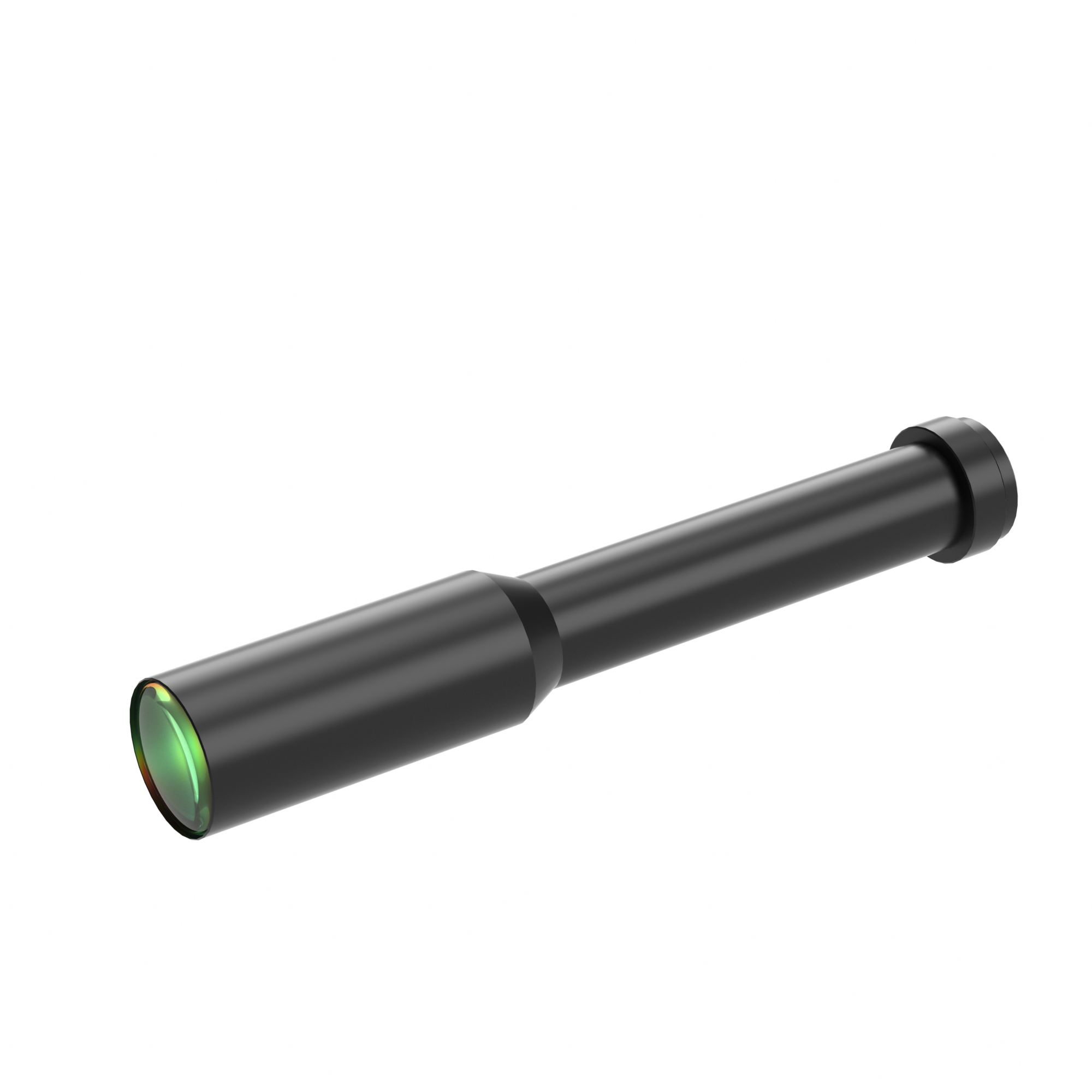

1" 0.55X Industrial Lenses | WH055-140A-110 COOLENS®

WH055-140A-110
$386.00 USD
Shipping calculated at checkout.
Quantity
1" 0.55X Industrial Lenses | WH055-140A-110 COOLENS®-OKLAB

Description

Model NO. WH055-140A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.55 Working Distance(mm) 140
NA 0.0141 Type Fixed Magnification
Mount C Best Aperture(f/#) 19.6
MTF30 (lp/mm) 50 Object Resolution(μm) 23.8
Depth of Field(mm) 5.2 Distortion Typical(% max) 0.35
Telecentricity Typical (°max) Non-telecentric Length (mm) 177.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 4
Filter Screw Size M25x0.5

Field of View (mm x mm)
1/2"(6.4x4.8) 11.6x8.7
1/1.8"(7.13x5.37) 13.0x9.8
2/3"(8.8x6.6) 16.0x12.0
1"(12.43x9.83) 22.6x17.9

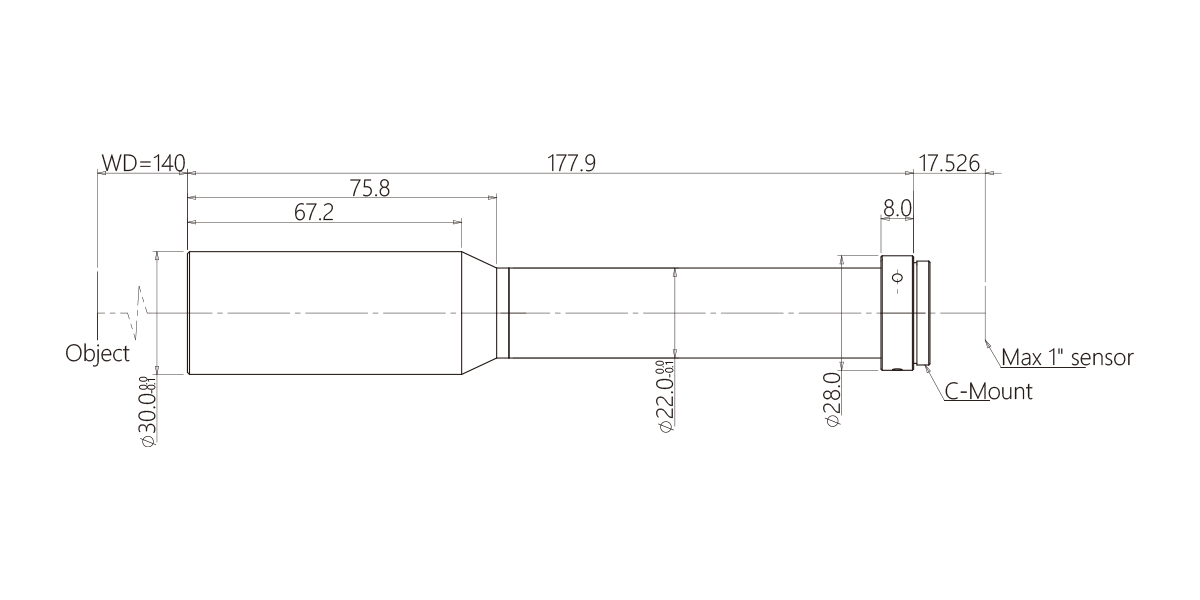

Dimensions

Naming Rule
