Model NO. | WH04-650A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.4 | Working Distance(mm) | 650 | ||||
NA | 0.0143 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 14 | ||||
MTF30 (lp/mm) | 65 | Object Resolution(μm) | 23.5 | ||||
Depth of Field(mm) | 7 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 294.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3 | ||||
Filter Screw Size | M35x0.5 | ||||||
Field of View (mm x mm) |
|||||||
1/1.8"(7.13x5.37) | 17.8x13.4 | ||||||
2/3"(8.8x6.6) | 22.0x16.5 | ||||||
1"(12.43x9.83) | 31.1x24.6 |

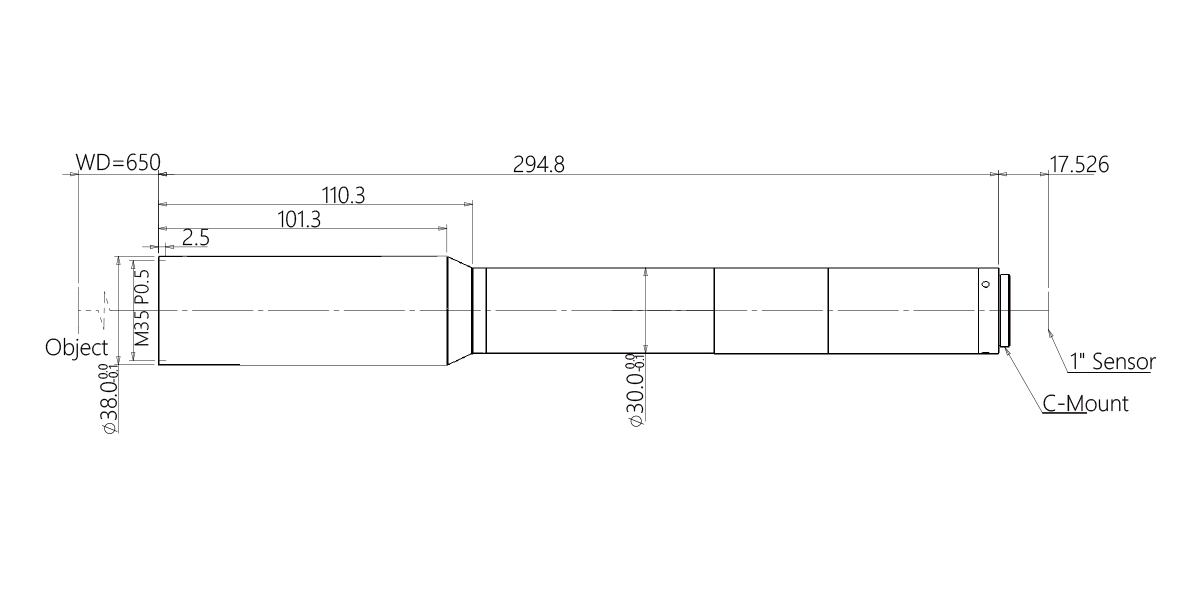

Dimensions
Naming Rule
