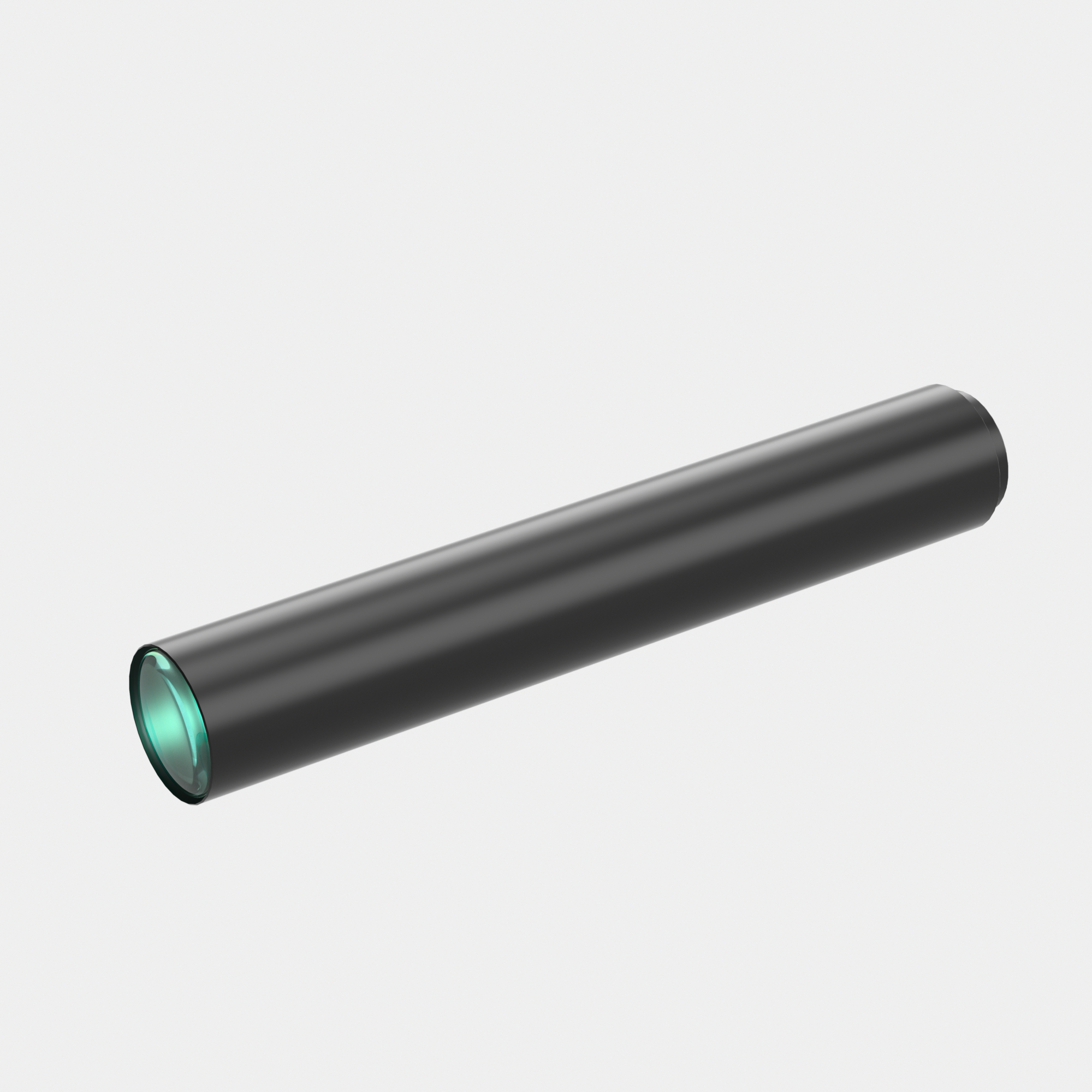

| Model NO. | WH04-250A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 250 | ||||
| NA | 0.0182 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 11 | ||||
| MTF30 (lp/mm) | 64 | Object Resolution(μm) | 18.4 | ||||
| Depth of Field(mm) | 5.5 | Distortion Typical(% max) | 0.01 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 177.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.5 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/1.8"(7.13x5.37) | 17.8x13.4 | ||||||
| 2/3"(8.45x7.1) | 21.1x17.7 | ||||||
| 1"(13.13x8.76) | 32.8x21.9 | ||||||

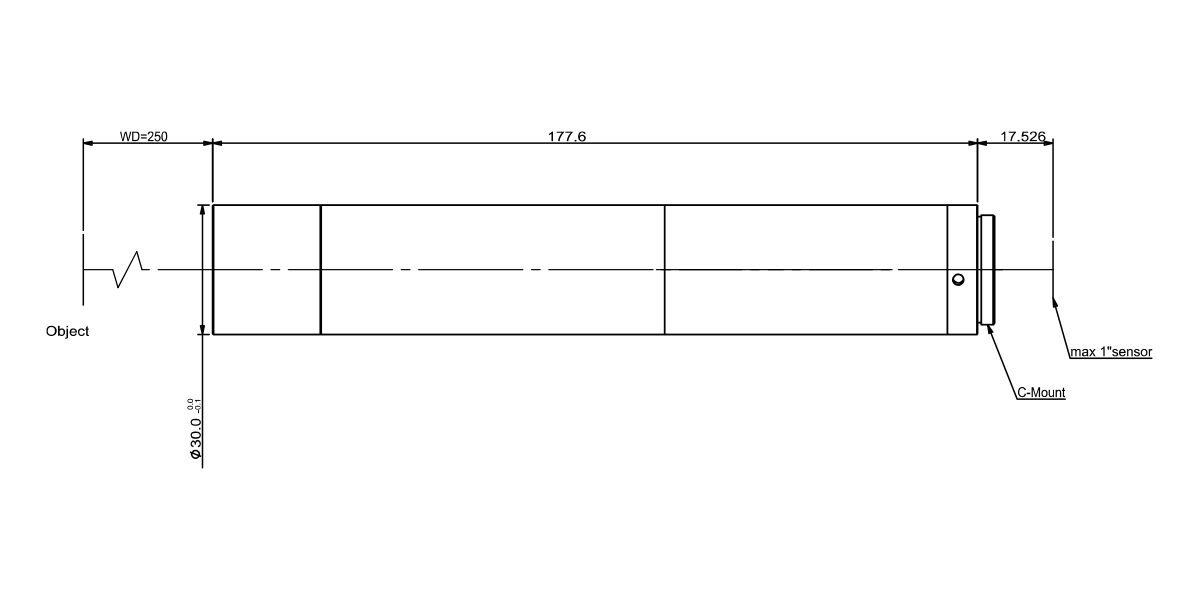

Dimensions
Naming Rule
