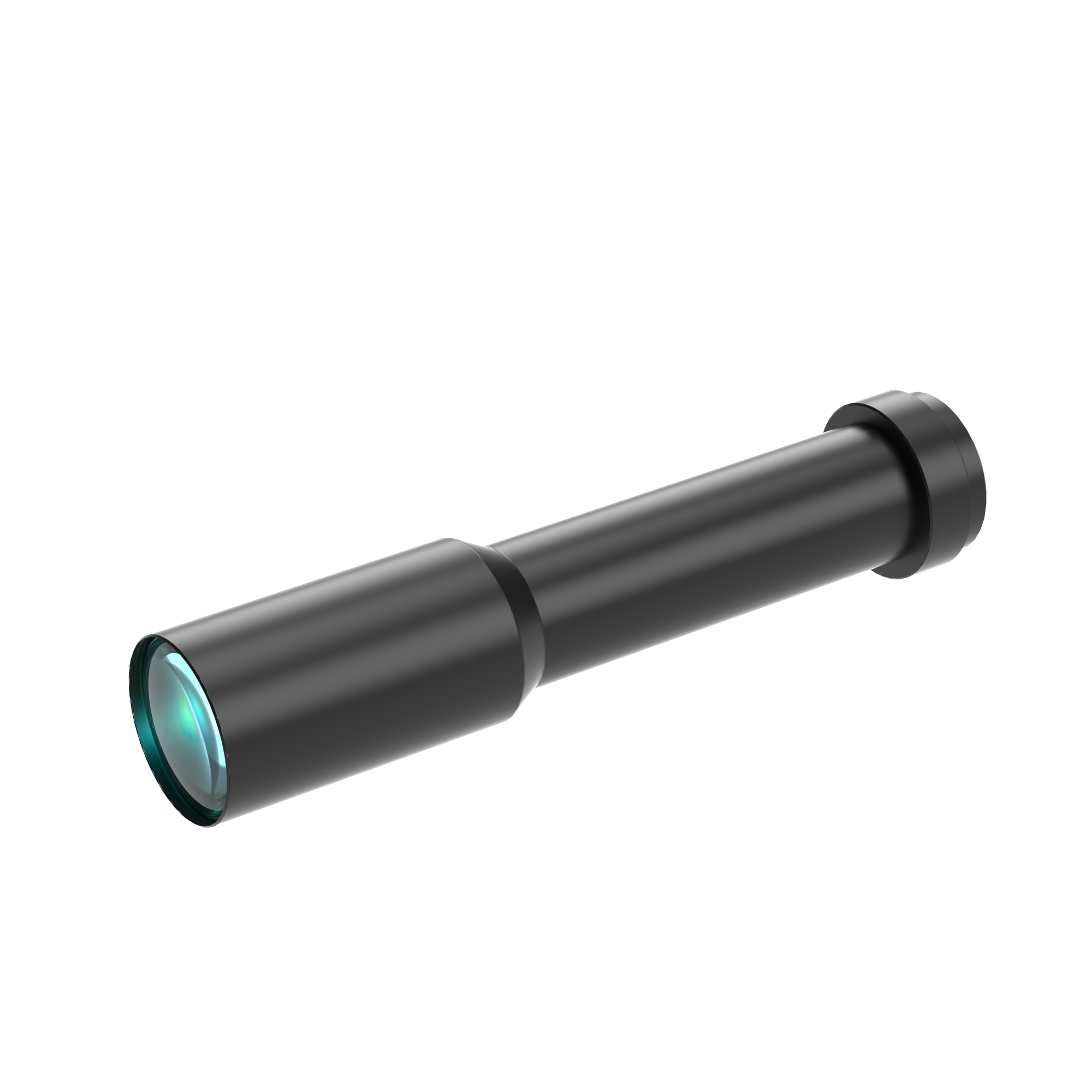

| Model NO. | WH04-136A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.4 | Working Distance(mm) | 136 | ||||
| NA | 0.0138 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.4 | ||||
| MTF30 (lp/mm) | 45 | Object Resolution(μm) | 24.3 | ||||
| Depth of Field(mm) | 7.2 | Distortion Typical(% max) | 0.7 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 129.5 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.2 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 16.0×12.0 | ||||||
| 1/1.8"(7.13x5.37) | 17.8×13.4 | ||||||
| 2/3"(8.8x6.6) | 22.0×16.5 | ||||||
| 1"(12.43x9.83） | 24.9x19.7 | ||||||

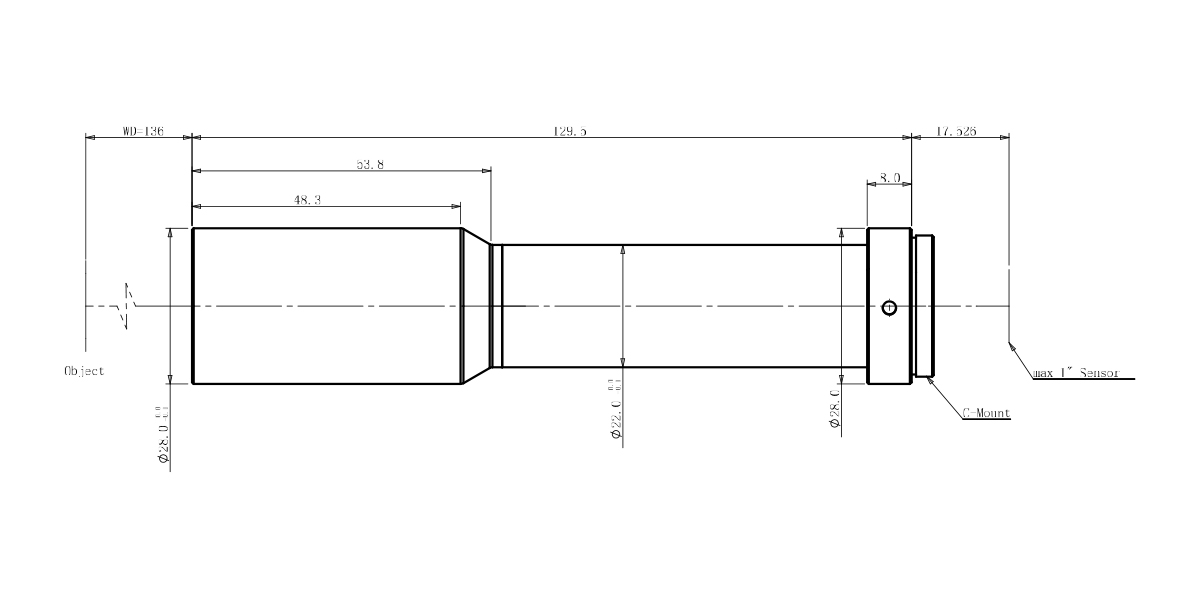

Dimensions
Naming Rule
