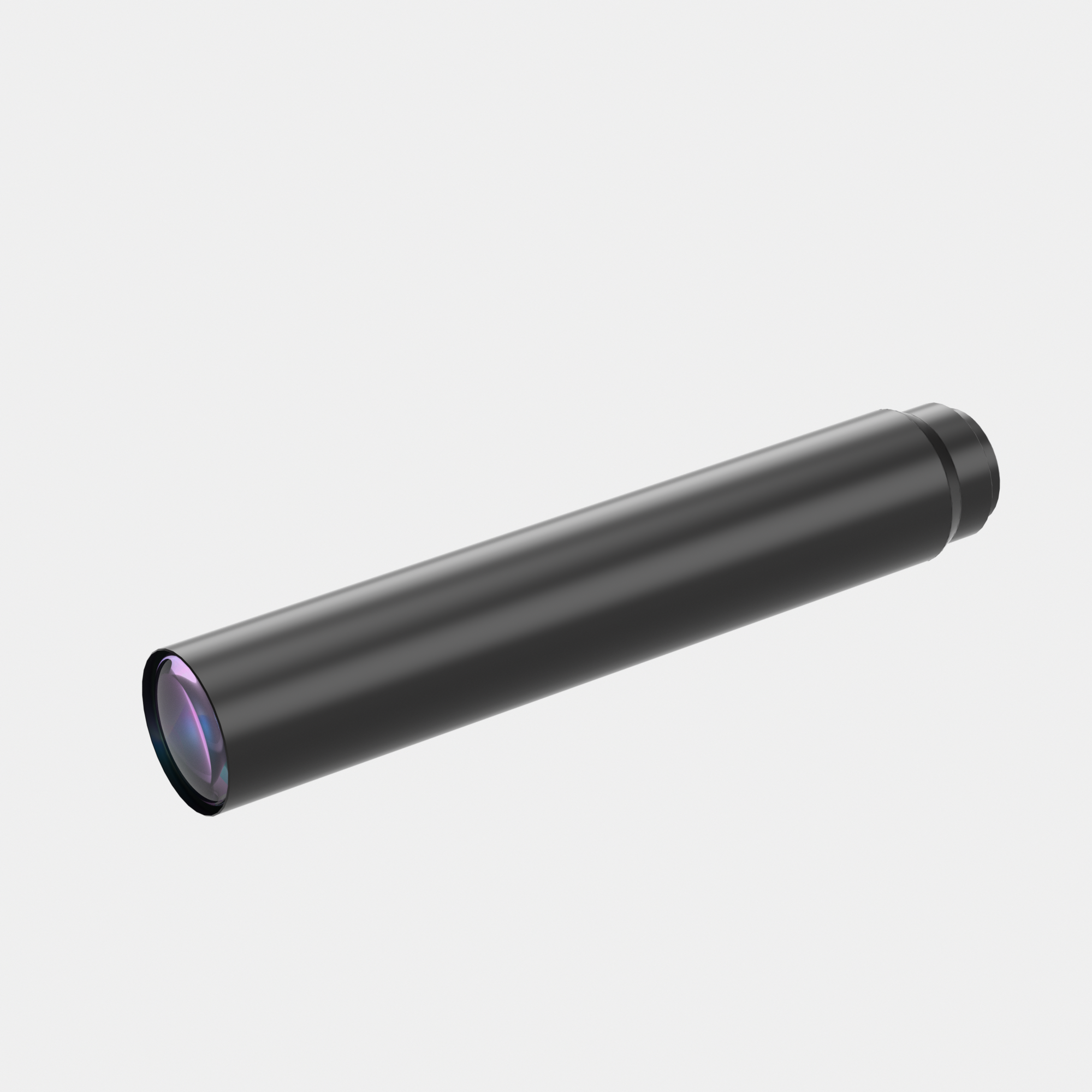

Model NO. | WH03-510A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.3 | Working Distance(mm) | 510 | ||||
NA | 0.0136 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 11 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 24.6 | ||||
Depth of Field(mm) | 9.8 | Distortion Typical(% max) | 0.06 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 188 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) |
|||||||
1/2"(6.4x4.8) | 21.3x16.0 | ||||||
1/1.8"(7.13x5.37) | 23.8x17.9 | ||||||
2/3"(8.45×7.1) | 28.2×23.7 | ||||||
1"(13.13×8.76) | 43.8×29.2 |

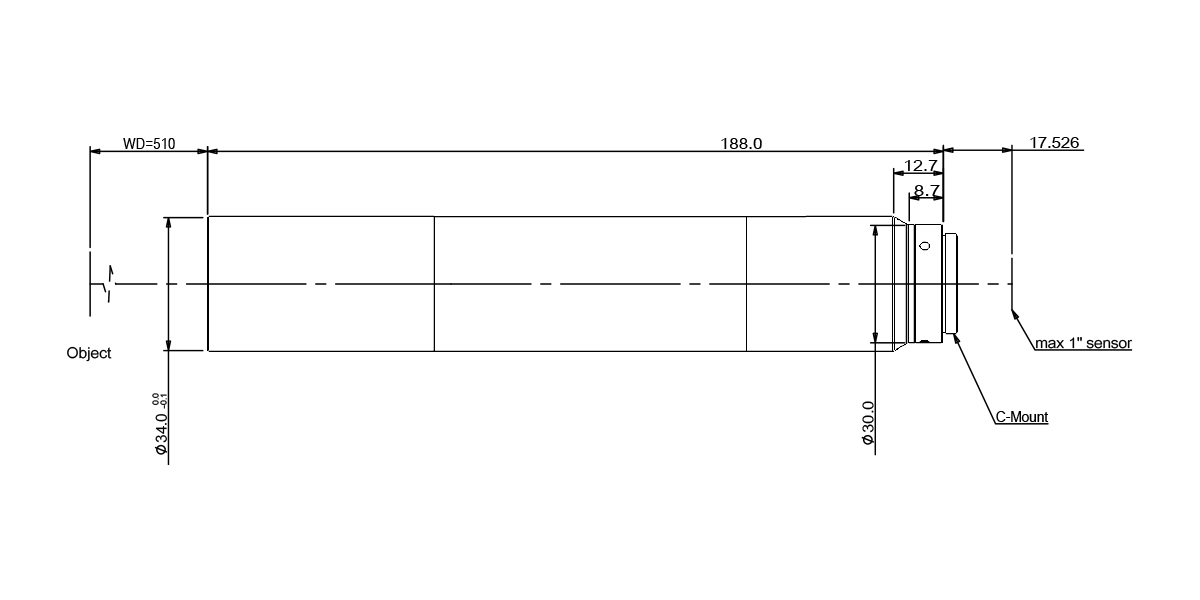

Dimensions
Naming Rule
