| Model NO. | WH03-340A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 340 | ||||
| NA | 0.0107 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.1 | ||||
| MTF30 (lp/mm) | 45 | Object Resolution(μm) | 31.4 | ||||
| Depth of Field(mm) | 12.5 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 132.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 10 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 21.3x16.0 | ||||||
| 1/1.8"(7.13x5.37) | 23.8x17.9 | ||||||
| 2/3"(8.8x6.6) | 29.3x22.0 | ||||||
| 1"(12.43×9.83) | 41.4×32.8 | ||||||

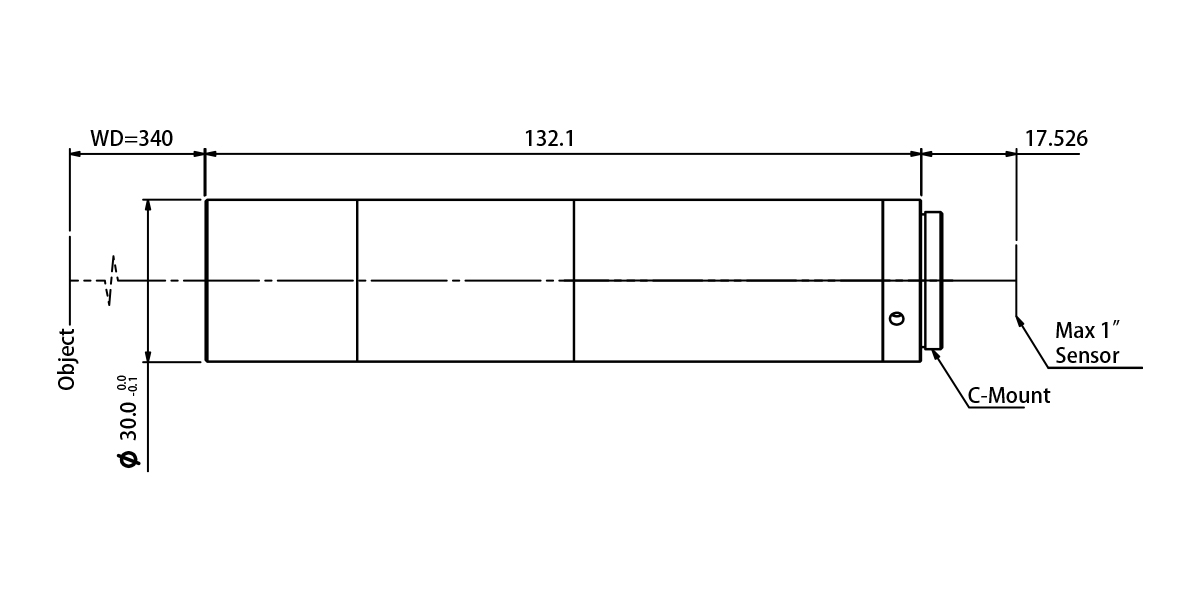

Dimensions
Naming Rule
