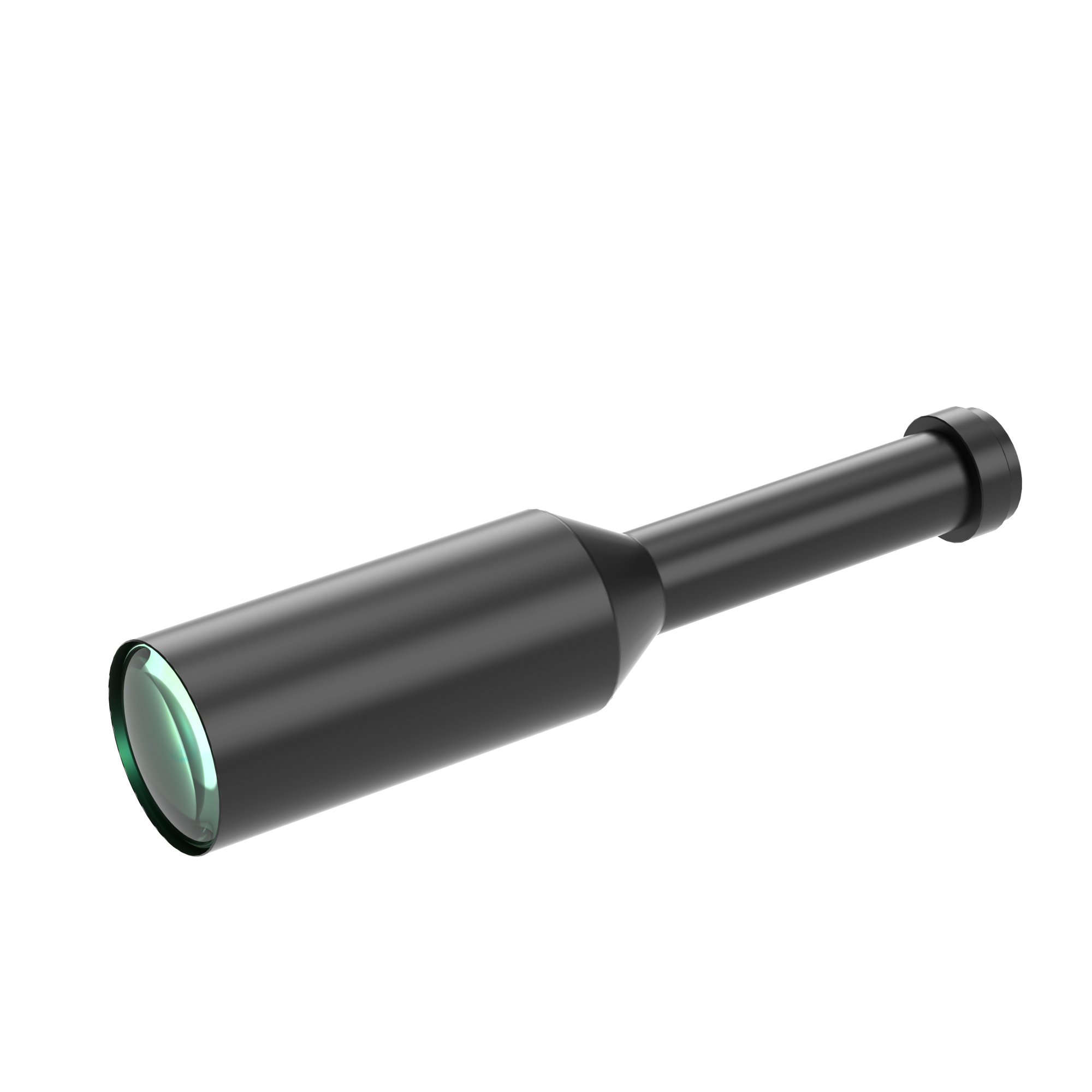

| Model NO. | WH036-125A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
| Magnification(x) | 0.36 | Working Distance(mm) | 125 | ||||
| NA | 0.0122 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 14.9 | ||||
| MTF30 (lp/mm) | 47 | Object Resolution(μm) | 27.4 | ||||
| Depth of Field(mm) | 9.2 | Distortion Typical(% max) | 0.4 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 195.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4.6 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 17.8x13.3 | ||||||
| 1/1.8"(7.13x5.37) | 19.8x14.9 | ||||||
| 2/3"(8.8x6.6) | 24.4x18.3 | ||||||
| 1"(12.43x9.83) | 34.5x27.3 | ||||||
Dimensions
Naming Rule
