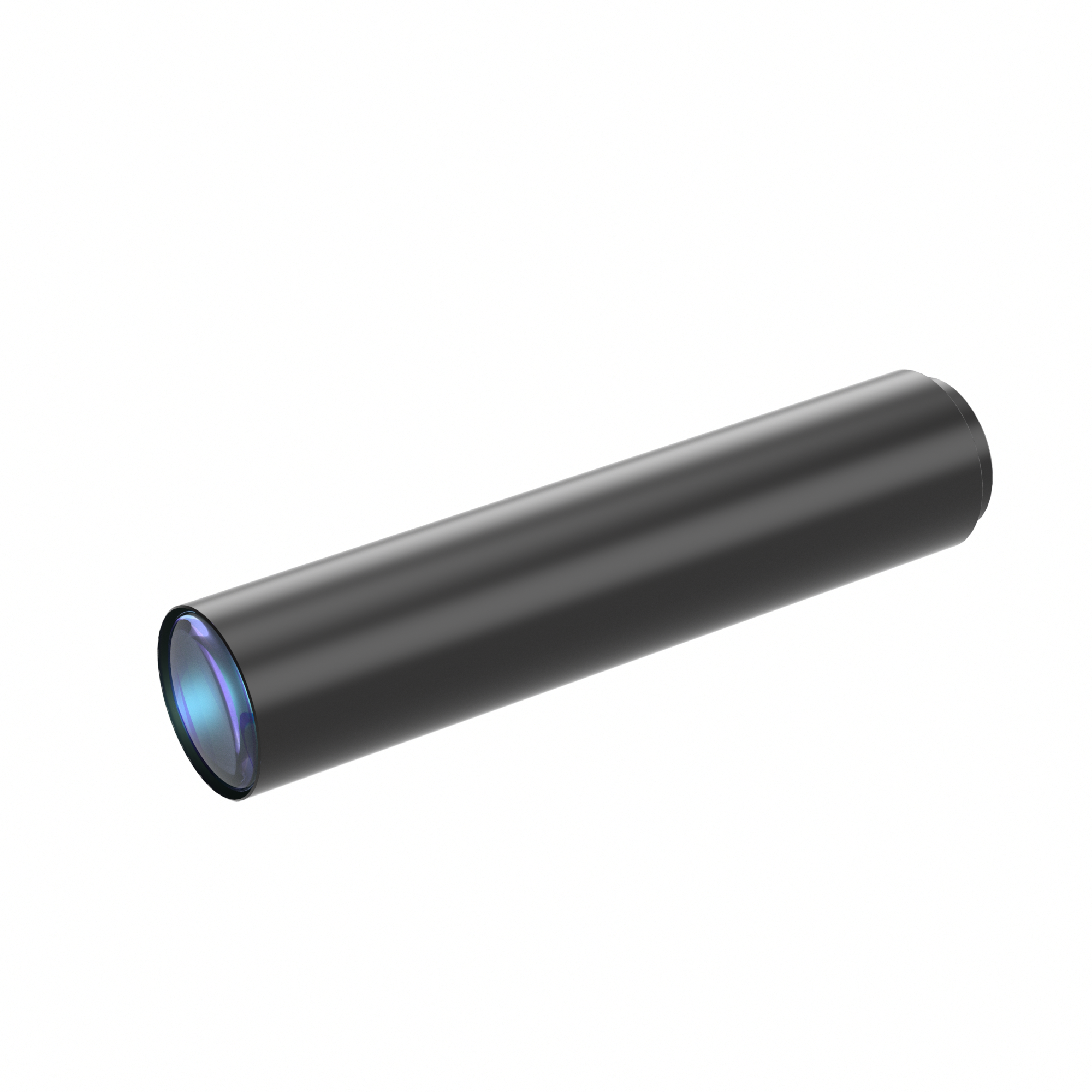

Model NO. | WH02-550A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.2 | Working Distance(mm) | 550 | ||||
NA | 0.0074 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 13.6 | ||||
MTF30 (lp/mm) | 60 | Object Resolution(μm) | 45.6 | ||||
Depth of Field(mm) | 27.2 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 133.5 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 15 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 32.0x24.0 | ||||||
1/1.8"(7.13x5.37) | 35.7x26.9 | ||||||
2/3"(8.8x6.6) | 44.0x33.0 | ||||||
1"(12.43x9.83) | 62.2x49.2 |

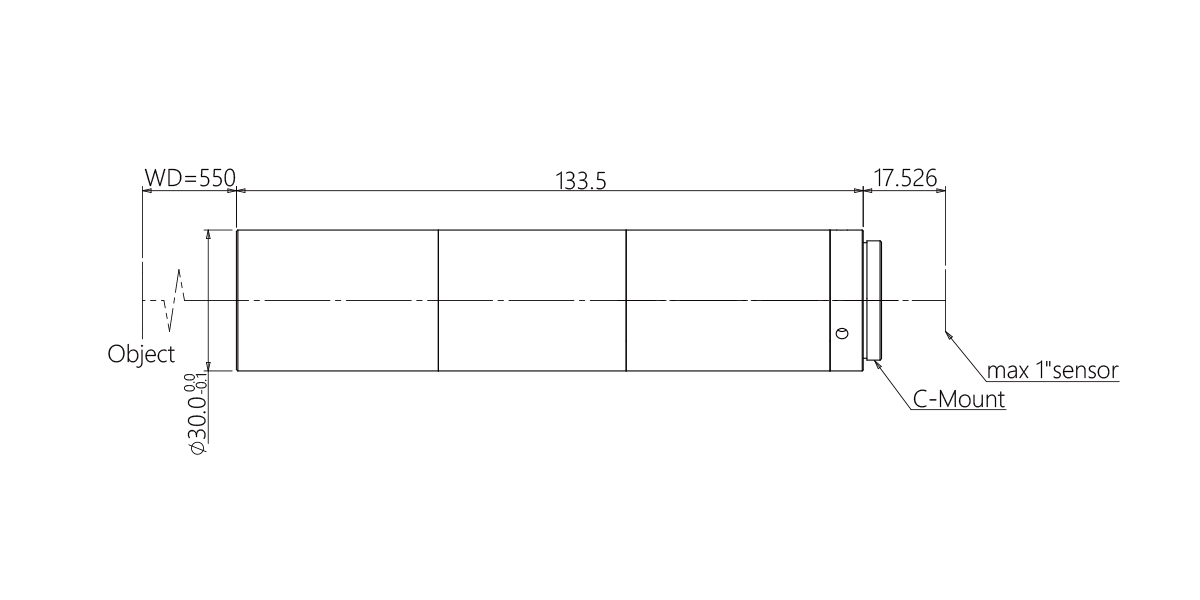

Dimensions
Naming Rule
