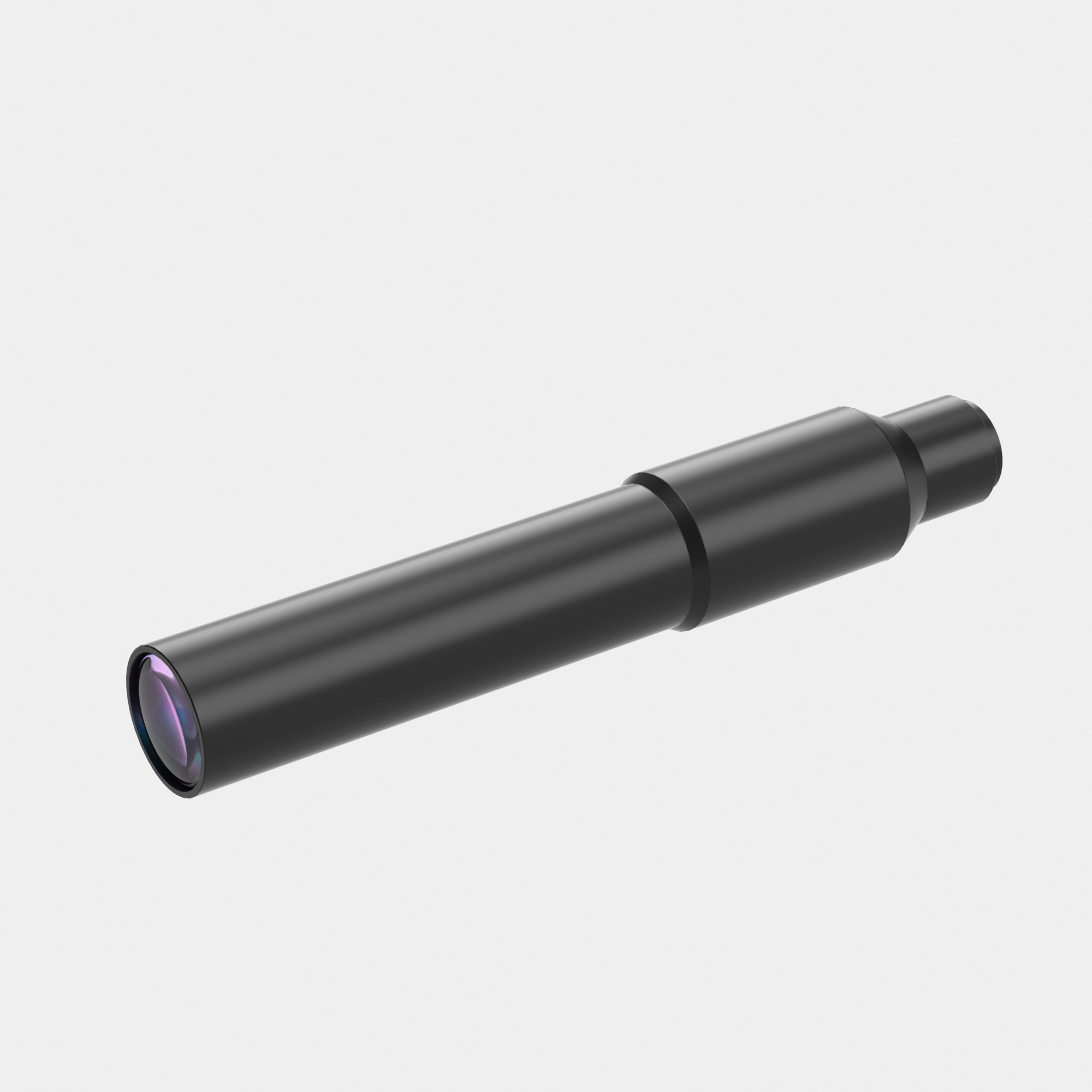

1" 0.24X Industrial Lenses | WH024-760A-110 COOLENS®

$471.00 USD
Shipping calculated at checkout.
Quantity
1" 0.24X  Industrial Lenses | WH024-760A-110 COOLENS®-OKLAB

Description

Model NO. WH024-760A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.24 Working Distance(mm) 760
NA 0.0107 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.2
MTF30 (lp/mm) 78 Object Resolution(μm) 31.4
Depth of Field(mm) 15.6 Distortion Typical(% max) 0.05
Telecentricity Typical (°max) Non-telecentric Length (mm) 240
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M35x0.5
Field of View (mm x mm)
2/3"(8.45x7.1) 35.2x29.6
1"(13.13x8.76) 54.7x36.5

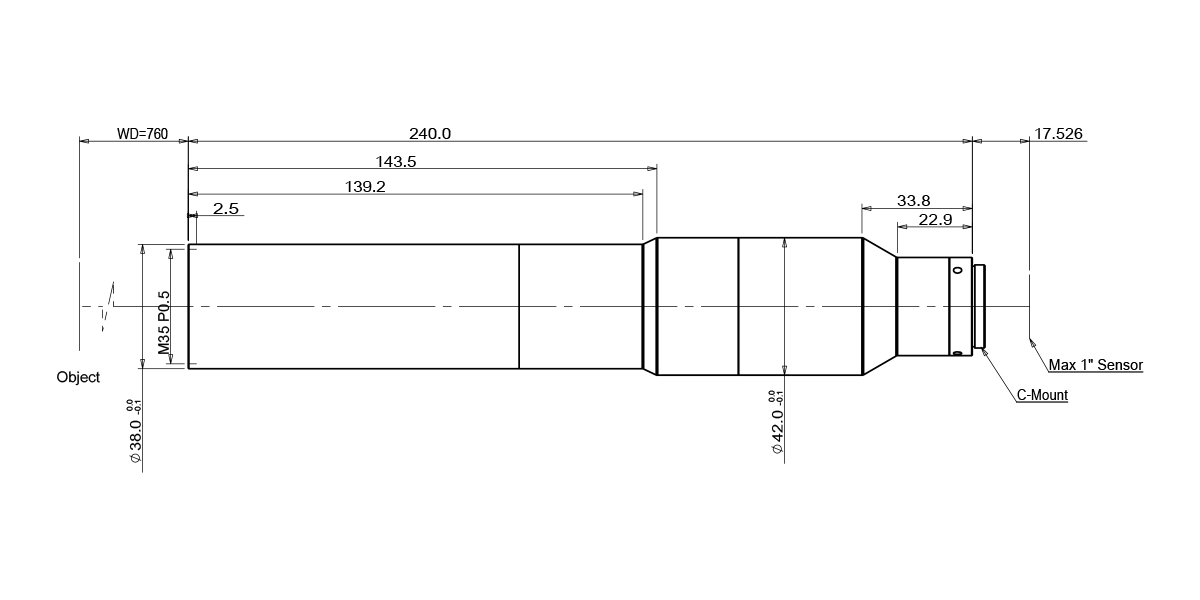

Dimensions

Naming Rule



  • Description

Model NO. WH024-760A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.24 Working Distance(mm) 760
NA 0.0107 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.2
MTF30 (lp/mm) 78 Object Resolution(μm) 31.4
Depth of Field(mm) 15.6 Distortion Typical(% max) 0.05
Telecentricity Typical (°max) Non-telecentric Length (mm) 240
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M35x0.5
Field of View (mm x mm)
2/3"(8.45x7.1) 35.2x29.6
1"(13.13x8.76) 54.7x36.5

Dimensions

Naming Rule
