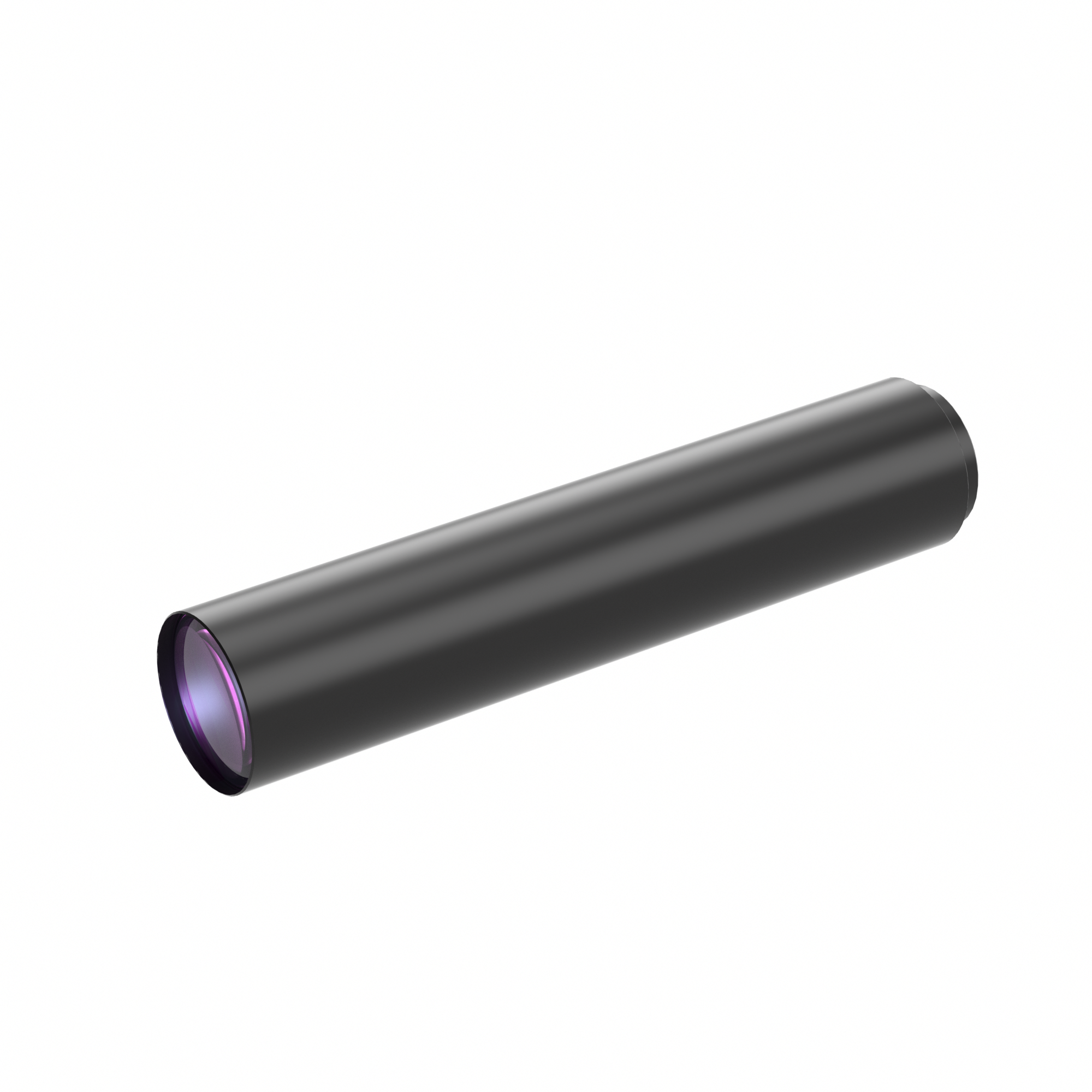

Model NO. | WH022-530A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.22 | Working Distance(mm) | 530 | ||||
NA | 0.0100 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10.9 | ||||
MTF30 (lp/mm) | 70 | Object Resolution(μm) | 33.4 | ||||
Depth of Field(mm) | 18 | Distortion Typical(% max) | 0.1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 139.6 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 8 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 29.1x21.8 | ||||||
1/1.8"(7.13x5.37) | 32.4x24.4 | ||||||
2/3"(8.8x6.6) | 40.0x30.0 | ||||||
1"(12.43x9.83) | 56.5x44.7 |

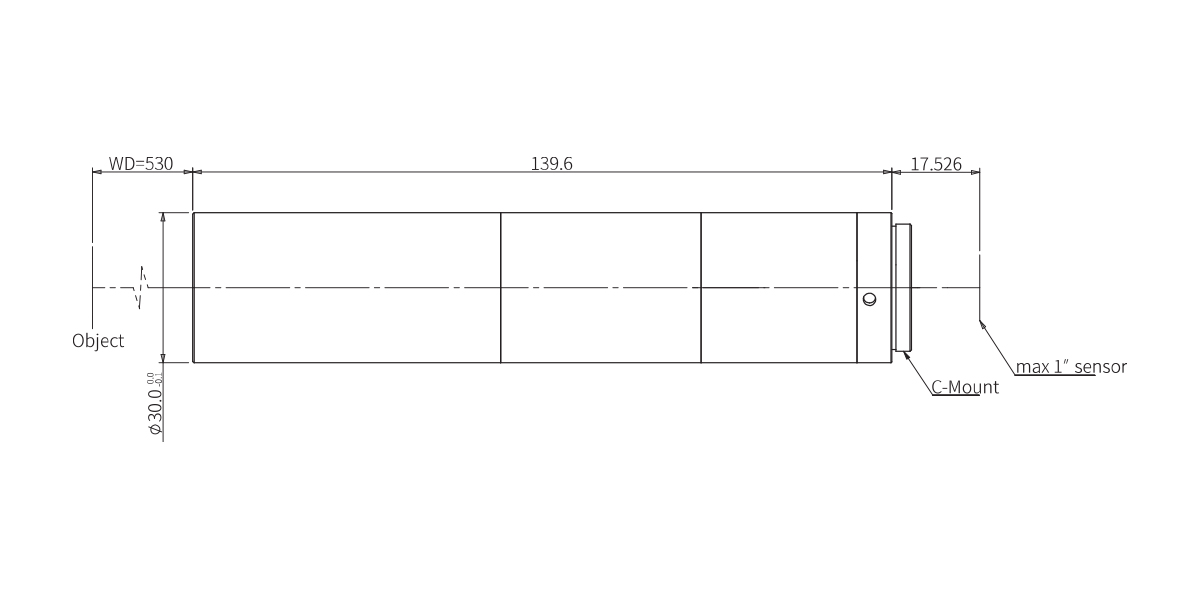

Dimensions
Naming Rule
