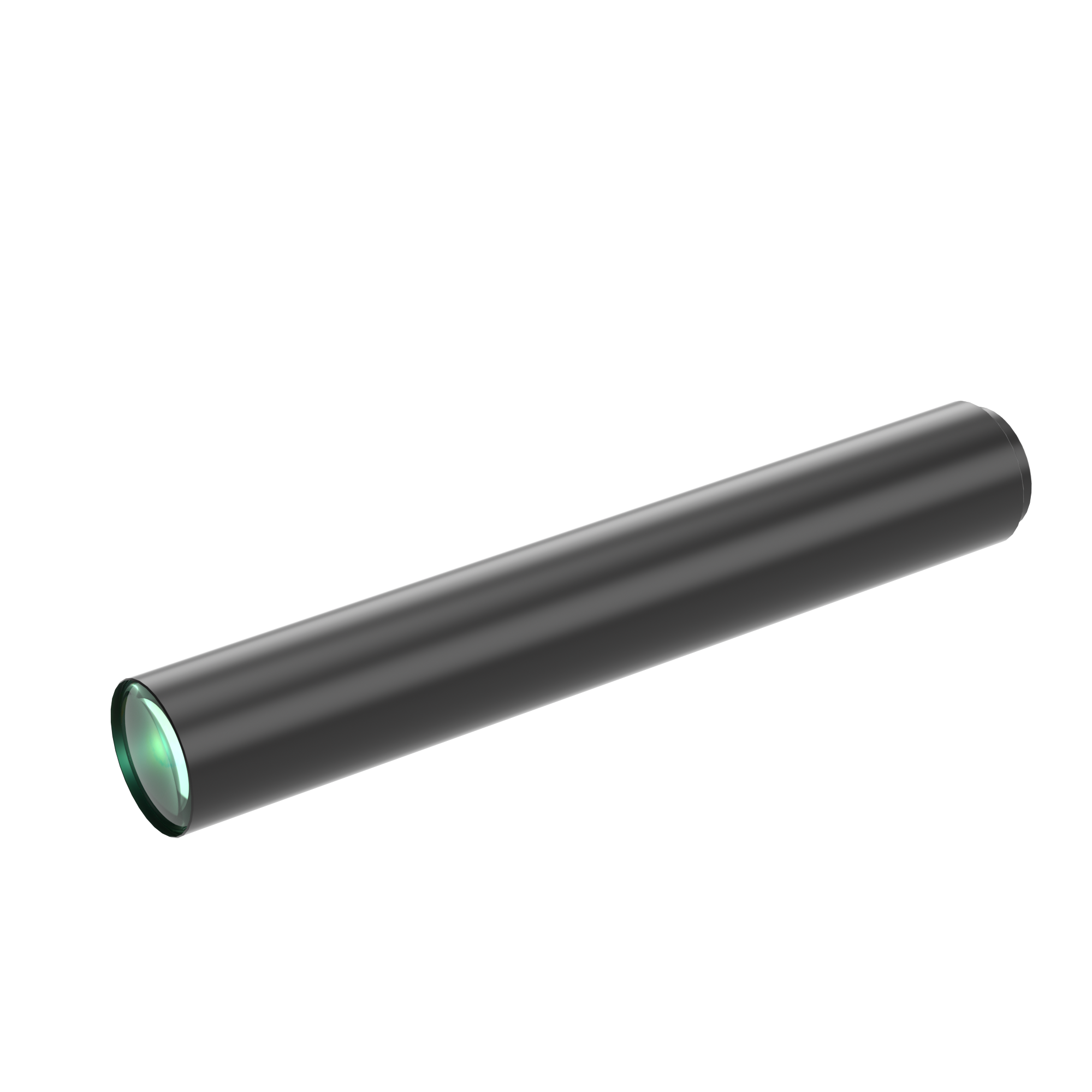

1" 0.22X Industrial Lenses | WH022-380A-110 COOLENS®

WH022-380A-110
$386.00 USD
Shipping calculated at checkout.
Quantity
1" 0.22X Industrial Lenses | WH022-380A-110 COOLENS®-OKLAB

Description

Model NO. WH022-380A-110 Image Circle Diameter (Φmm) 16(1")
Magnification(x) 0.22 Working Distance(mm) 380
NA 0.0090 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.3
MTF30 (lp/mm) 60 Object Resolution(μm) 37.4
Depth of Field(mm) 20.3 Distortion Typical(% max) 0.1
Telecentricity Typical (°max) Non-telecentric Length (mm) 189.1
With Coaxial Illumination Port No Measured Depth of Field (mm) 8.2
Filter Screw Size /
Field of View (mm x mm)
1/2"(6.4x4.8) 29.1x21.8
1/1.8"(7.13x5.37) 32.4x24.4
2/3"(8.8x6.6) 40.0x30.0
1"(12.43x9.83) 56.5x44.7

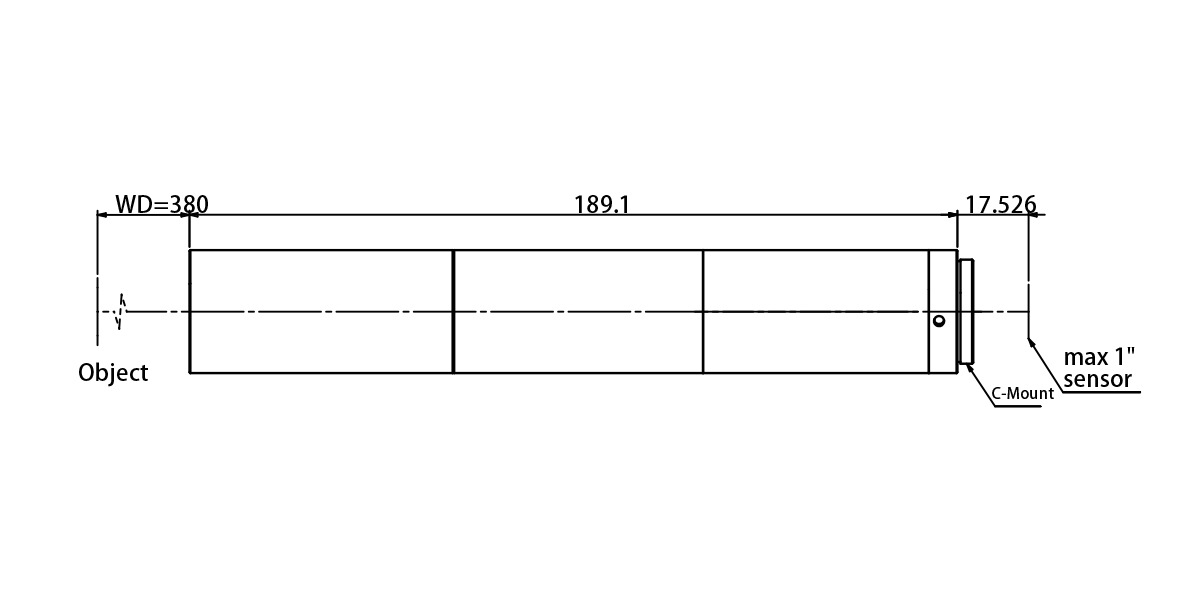

Dimensions

Naming Rule



Important Note
