Model NO. | WH021-550A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.21 | Working Distance(mm) | 550 | ||||
NA | 0.016 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 6.6 | ||||
MTF30 (lp/mm) | 144 | Object Resolution(μm) | 21 | ||||
Depth of Field(mm) | 12 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 116 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3.7 | ||||
Filter Screw Size | M32x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4×4.8) | 30.4x22.9 | ||||||
1/1.8"(7.13×5.37) | 40.0x25.6 | ||||||
2/3"(8.45x7.1) | 40.2x23.9 | ||||||
1"(12.43x9.83) | 59.2x46.8 |

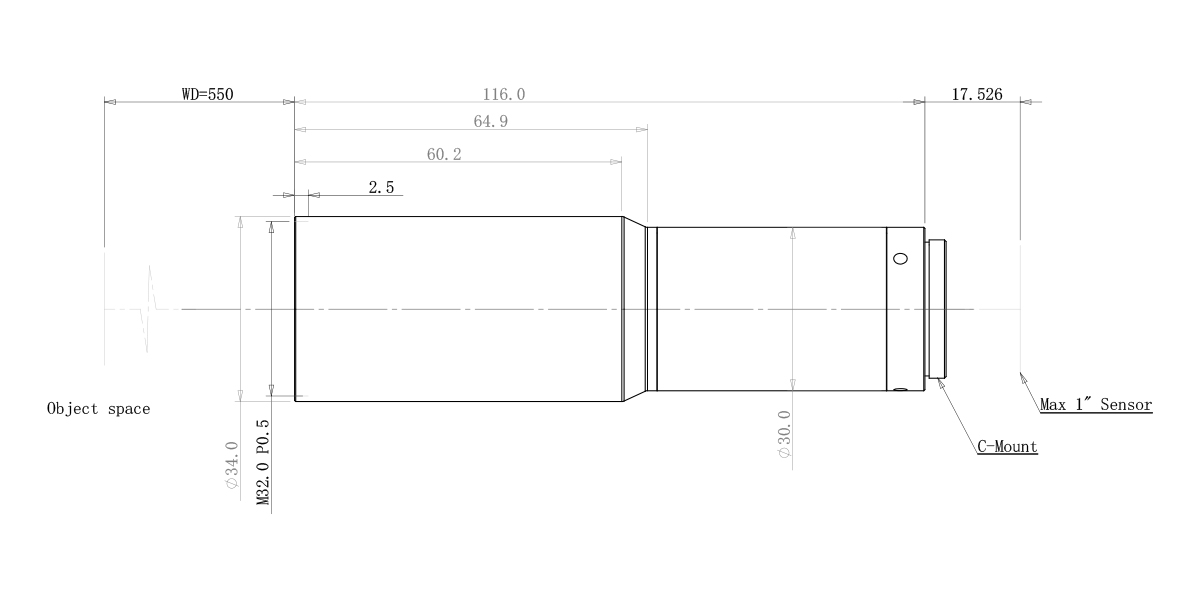

Dimensions
Naming Rule
