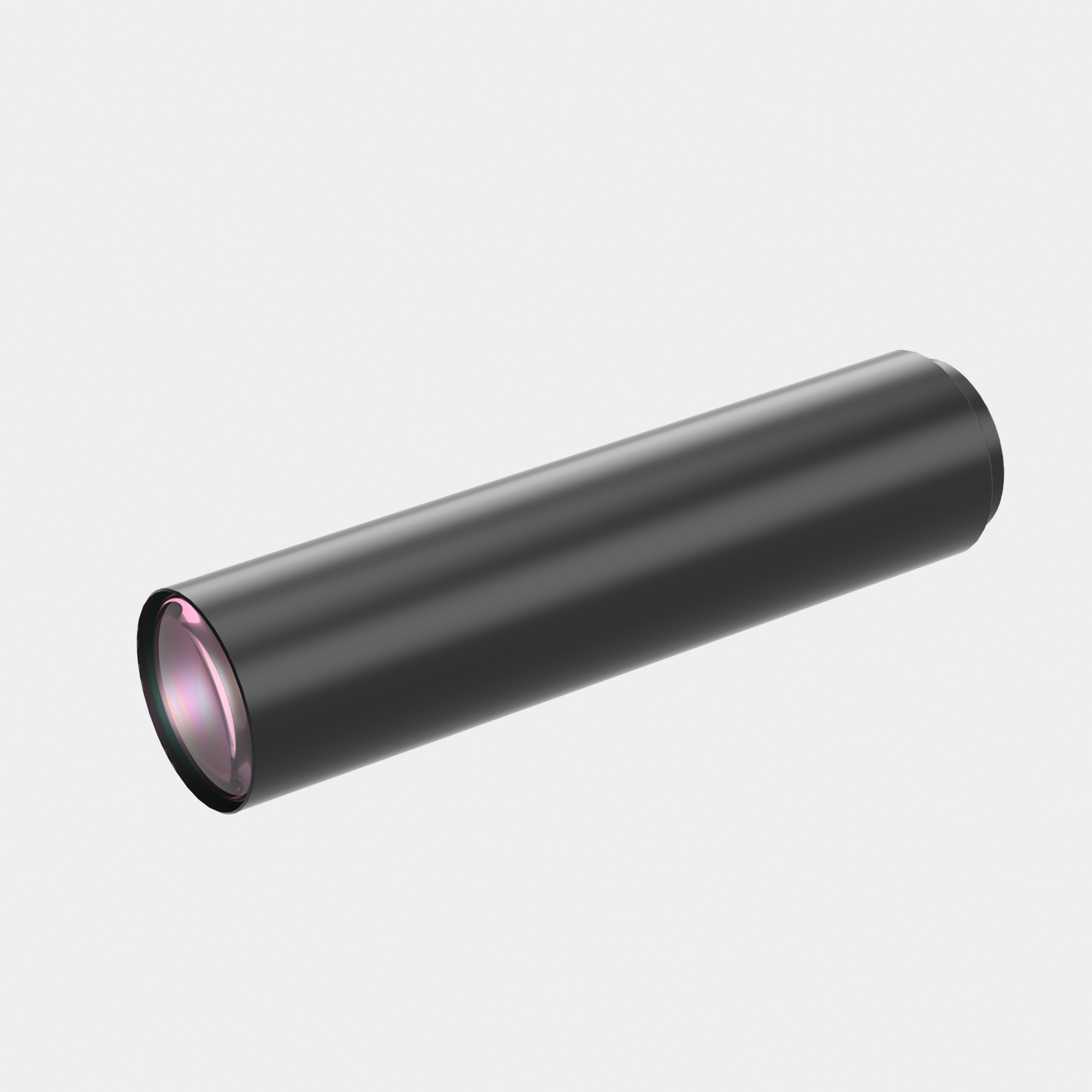

Model NO. | WH014-700A-110 | Image Circle Diameter (Φmm) | 16(1") | ||||
Magnification(x) | 0.14 | Working Distance(mm) | 700 | ||||
NA | 0.0058 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 12 | ||||
MTF30 (lp/mm) | 55 | Object Resolution(μm) | 57.4 | ||||
Depth of Field(mm) | 49 | Distortion Typical(% max) | 0.03 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 118.2 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 17 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 45.7x34.3 | ||||||
1/1.8"(7.13x5.37) | 50.9x38.4 | ||||||
2/3"(8.8x6.6) | 62.9x47.1 | ||||||
1"(12.43x9.83) | 88.8x70.2 |

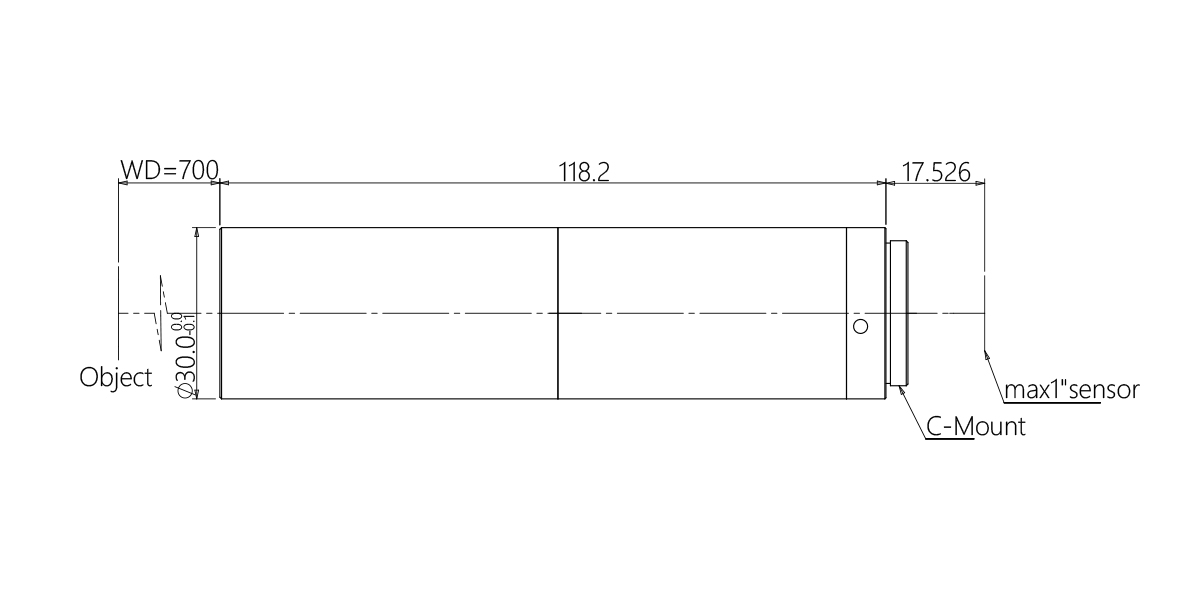

Dimensions
