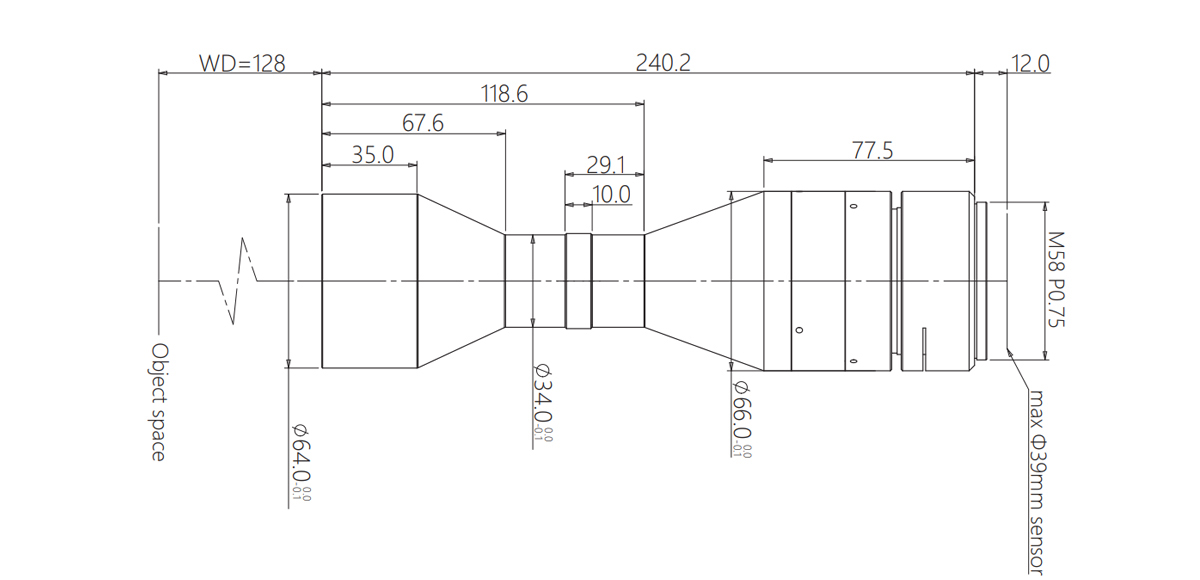

Model NO. | DTCM71M-48-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.813 | Working Distance(mm) | 128±3 | ||||
NA | 0.0266 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 48 | ||||
Best Aperture(f/#) | 15.3 | MTF30 (lp/mm) | >50 | ||||
Depth of Field(mm) | ±1.2@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 380±3 | ||||
Length (mm) | 240.2 | Weight(kg) | 1.1 | ||||
Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M60x0.5 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 38.1x26.7 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-48-xW-y | |||||
Beam Diameter 48mm |

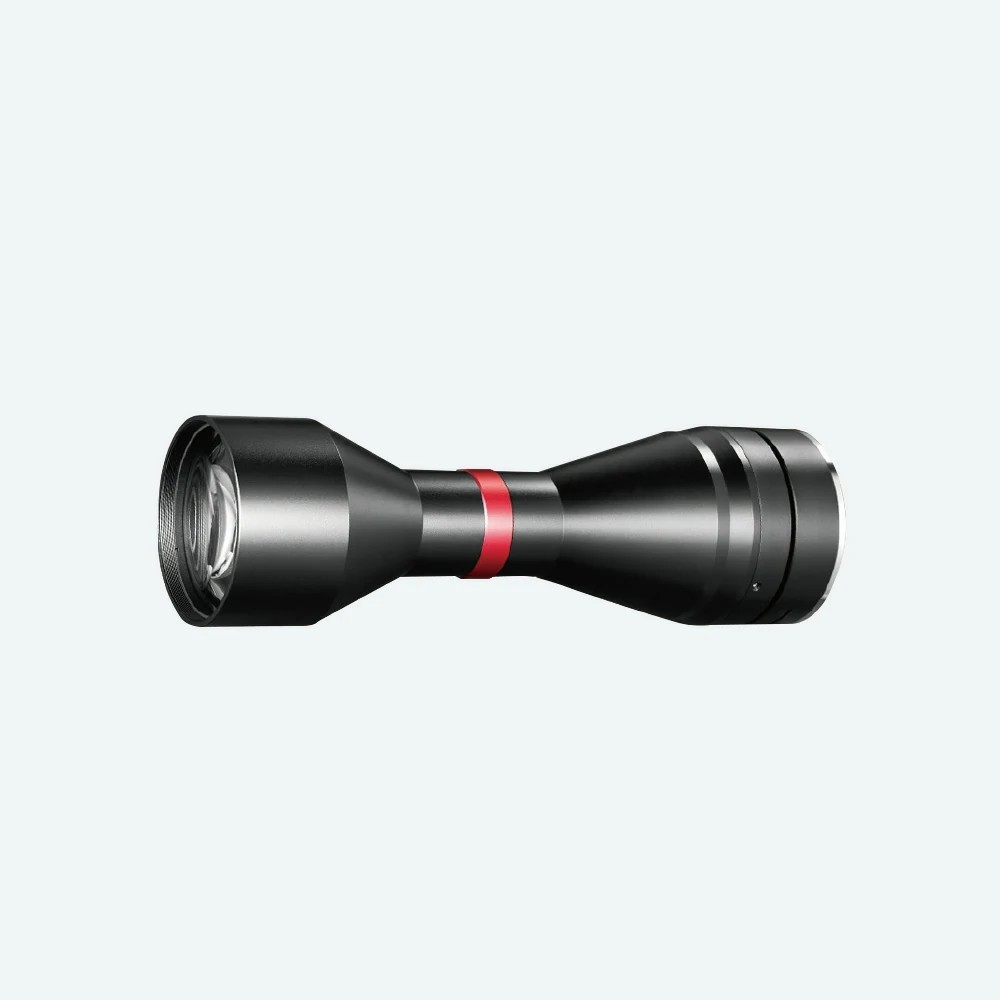

71M 0.813X Bi-Telecentric Lenses | DTCM71M-48-M58-AL COOLENS®
$2,649.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | DTCM71M-48-M58-AL | Image Circle Diameter (Φmm) | 39(71M) | ||||
Magnification(x) | 0.813 | Working Distance(mm) | 128±3 | ||||
NA | 0.0266 | Type | Bi-Telecentric | ||||
Mount | M58 | Object Field of View(Φmm) | 48 | ||||
Best Aperture(f/#) | 15.3 | MTF30 (lp/mm) | >50 | ||||
Depth of Field(mm) | ±1.2@F20 | Distortion Typical(% max) | <0.1 | ||||
Telecentricity Typical (°max) | <0.1 | Length of I/O(mm) | 380±3 | ||||
Length (mm) | 240.2 | Weight(kg) | 1.1 | ||||
Measured Depth of Field (mm) | 1.2 | Filter Screw Size | M60x0.5 | ||||
Field of View (mm × mm) |
CHR 70M (31.0x21.7) | 38.1x26.7 | |||||
Compatible Lighting |
Telecentric LED Lighting | DTCL-48-xW-y | |||||
Beam Diameter 48mm |
