Model NO. | WWH075-63CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.750 | Working Distance(mm) | 63±1 | ||||
NA | 0.0625 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 6 | ||||
MTF30 (lp/mm) | 132 | Object Resolution(μm) | 5.4 | ||||
Depth of Field(mm) | 0.9 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | 0.22 | Length (mm) | 96.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 8.5×6.4 | ||||||
1/1.8”(7.13x5.37) | 9.5×7.2 | ||||||
2/3”(8.45x7.1) | 11.3×9.5 |

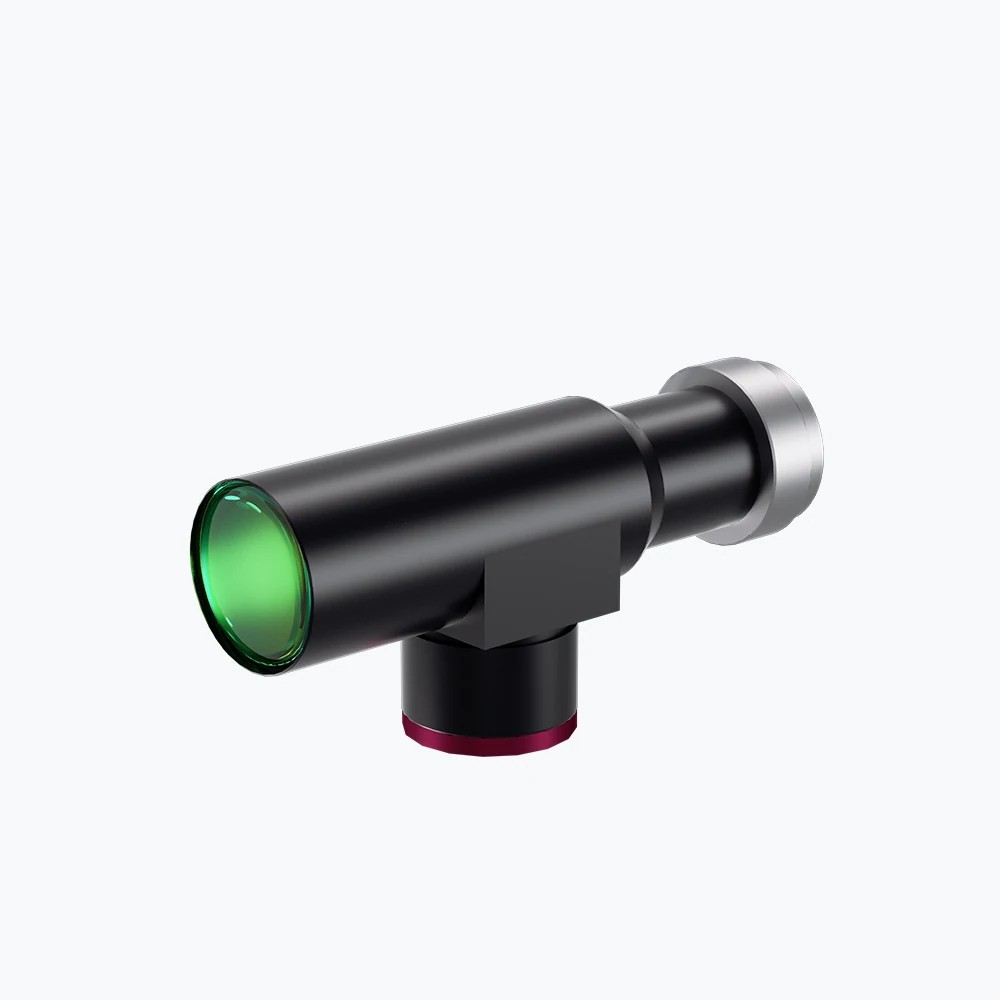

2/3" 0.75X Telecentric Lenses | WWH075-63CTLV3 COOLENS®
$351.00 USD
Shipping calculated at checkout.
Quantity


Description
-
Description
Model NO. | WWH075-63CTLV3 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.750 | Working Distance(mm) | 63±1 | ||||
NA | 0.0625 | Type | Telecentric | ||||
Mount | C | Best Aperture(f/#) | 6 | ||||
MTF30 (lp/mm) | 132 | Object Resolution(μm) | 5.4 | ||||
Depth of Field(mm) | 0.9 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | 0.22 | Length (mm) | 96.2 | ||||
With Coaxial Illumination Port | Yes | Measured Depth of Field (mm) | 0.4 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 8.5×6.4 | ||||||
1/1.8”(7.13x5.37) | 9.5×7.2 | ||||||
2/3”(8.45x7.1) | 11.3×9.5 |
