| Model NO. |
DTCM210-48-M58-AL |
Image Circle Diameter (Φmm) |
33(2") |
| Magnification(x) |
0.688 |
Working Distance(mm) |
128±3 |
| NA |
0.0266 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
48 |
| Best Aperture(f/#) |
12.9 |
MTF30 (lp/mm) |
>60 |
| Depth of Field(mm) |
±1.7@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
364±3 |
| Length (mm) |
224 |
Weight(kg) |
1 |
| Measured Depth of Field (mm) |
1.2 |
Filter Screw Size |
M60x0.5 |
Field of View (mm × mm)
|
2" DALSA 12M (24.58x18.43) |
35.7x26.8 |
| 2" PYTHON 25K (23.04x23.04) |
33.5x33.5 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-48-xW-y |
|
| Beam Diameter 48mm |

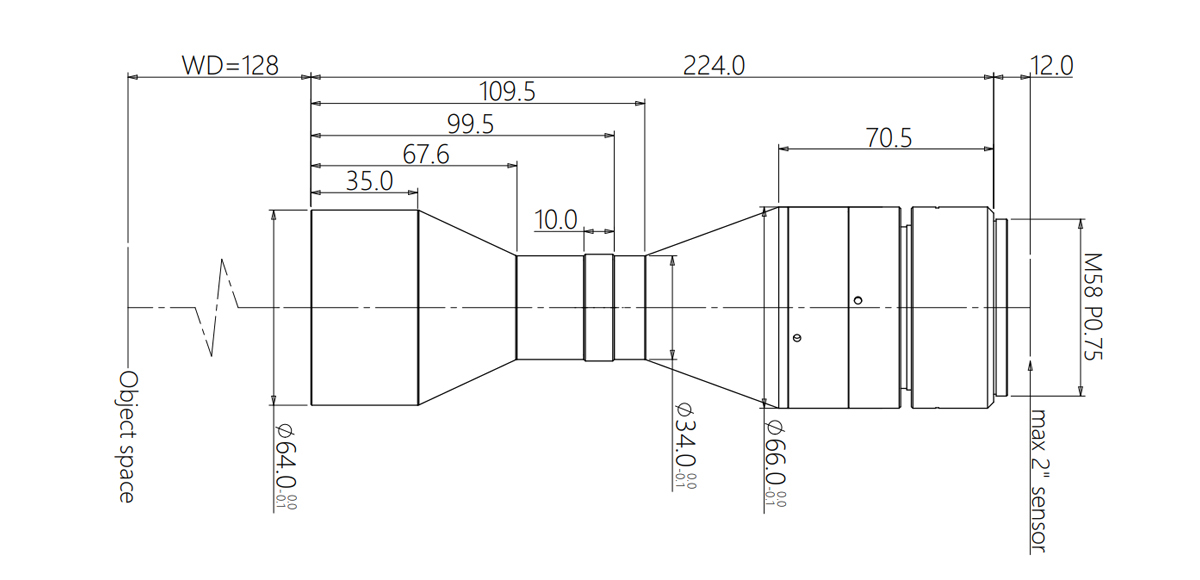

Dimensions
Naming Rule
