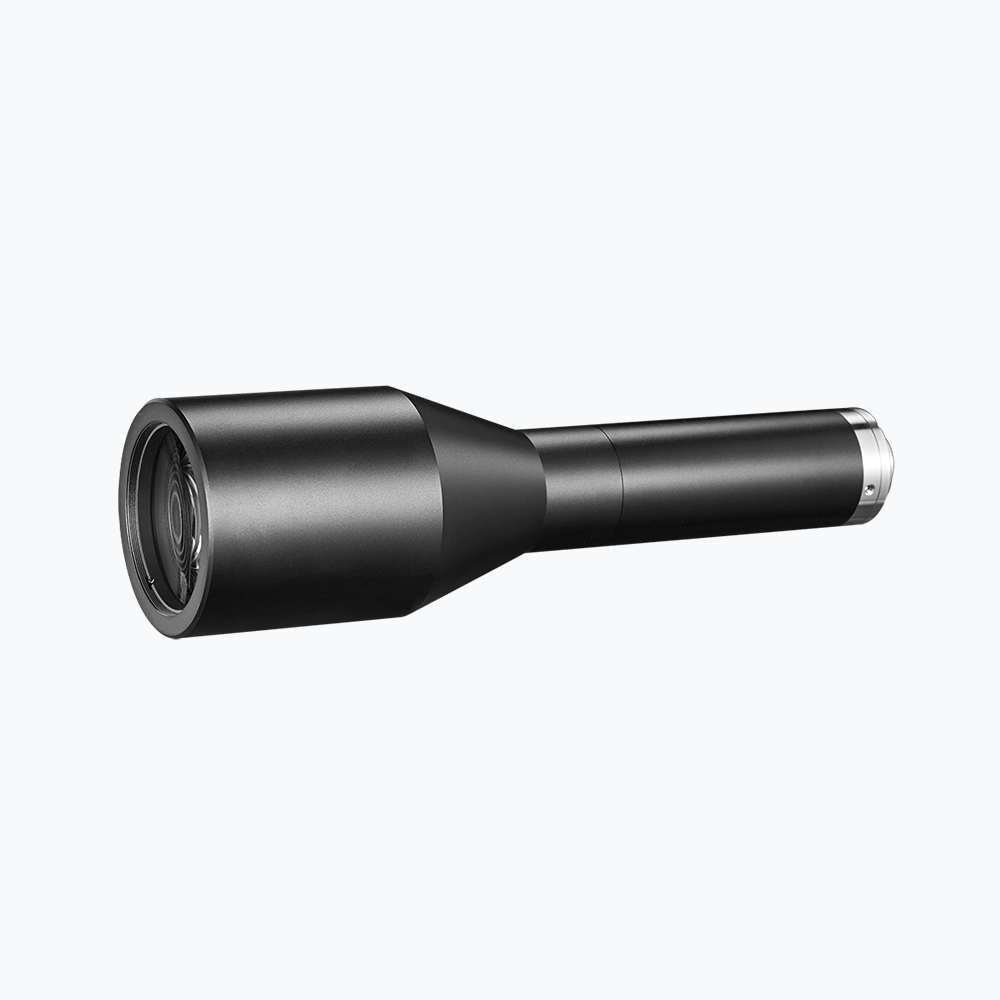

| Model NO. |
WWK05-220-110 |
Image Circle Diameter (Φmm) |
16(1") |
| Magnification(x) |
0.500 |
Working Distance(mm) |
220±2 |
| NA |
0.0310 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
8.0 |
| MTF30 (lp/mm) |
>110 |
Object Resolution(μm) |
10.8 |
| Depth of Field(mm) |
±1.3@F8 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
205.7 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
1.2 |
| Filter Screw Size |
M50x0.5 |
| Field of View (mm x mm) |
|
| 1" PYTHON 5000 (12.43x9.83) |
24.9x19.7 |
| 1" IMX255 (14.19x7.51) |
28.4x15.0 |
| 1" IMX183 (13.13x8.76) |
26.3x17.5 |
