| Model NO. |
DTCM71M-72-M58-AL |
Image Circle Diameter (Φmm) |
39(71M) |
| Magnification(x) |
0.542 |
Working Distance(mm) |
178±3 |
| NA |
0.0236 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
72 |
| Best Aperture(f/#) |
11.5 |
MTF30 (lp/mm) |
>75 |
| Depth of Field(mm) |
±2.7@F20 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
485±3 |
| Length (mm) |
295.2 |
Weight(kg) |
1.7 |
| Measured Depth of Field (mm) |
2.4 |
Filter Screw Size |
M84x0.5 |
Field of View (mm × mm)
|
CHR 70M (31.0x21.7) |
57.2x40.0 |
|
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-72-xW-y |
|
| Beam Diameter 72mm |

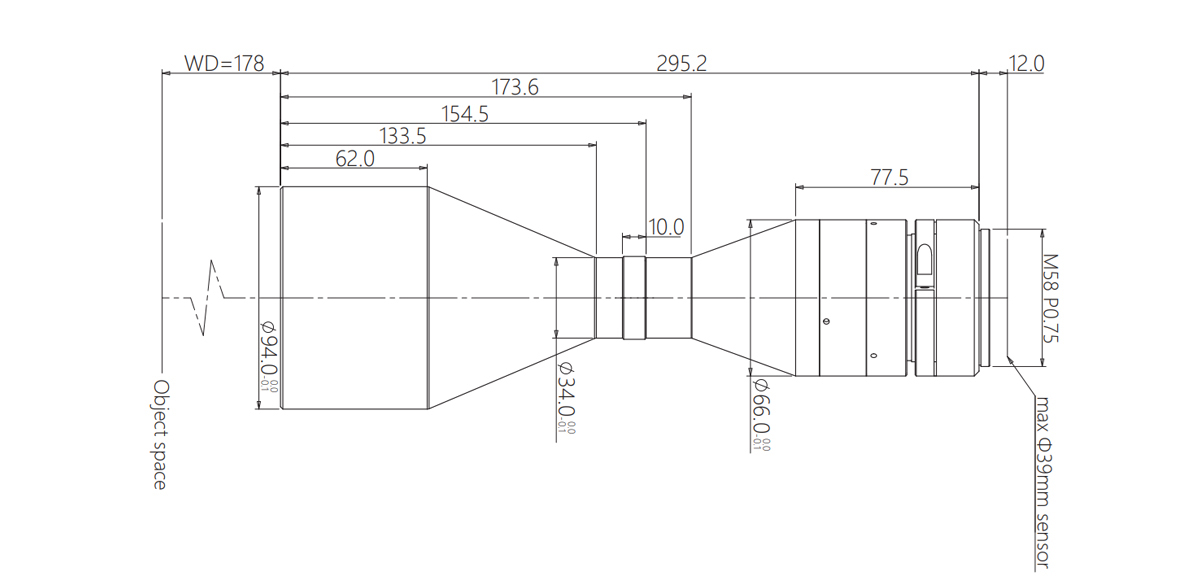

Dimensions
Naming Rule
