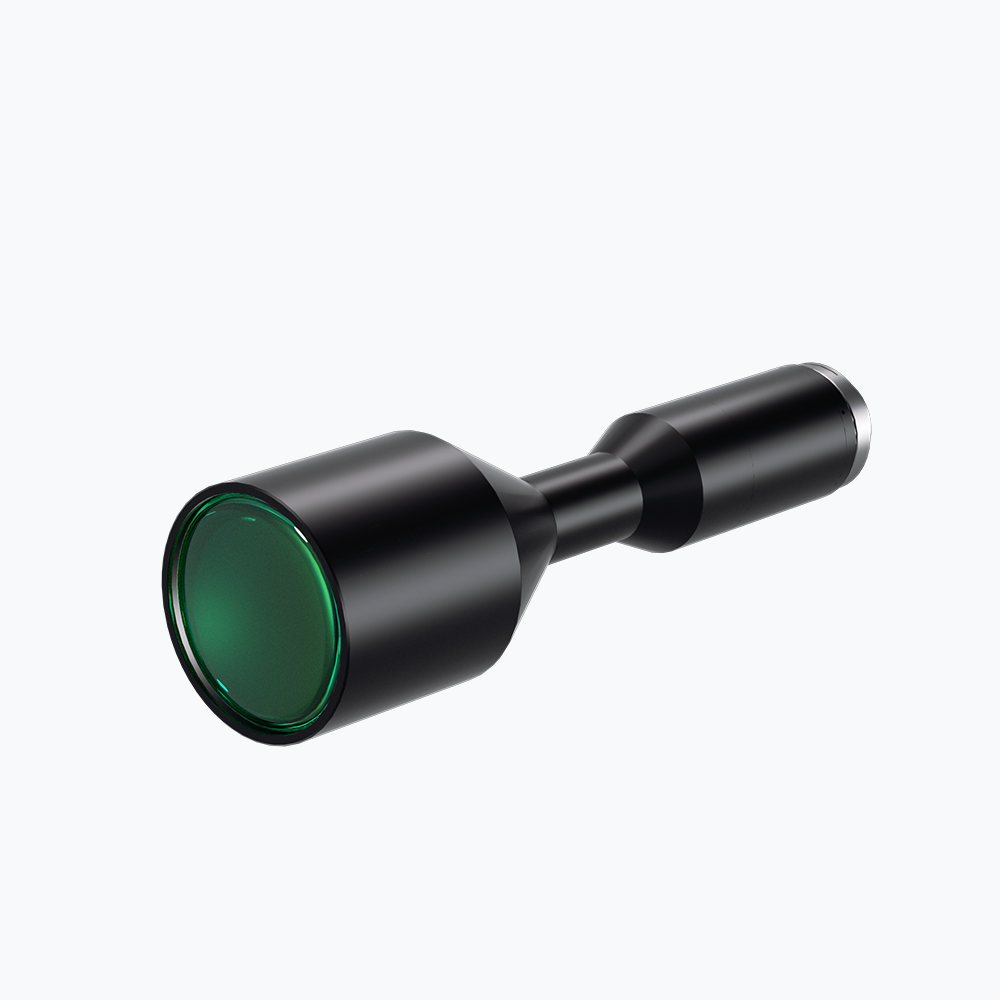

| Model NO. |
DTCA35F-82-M58-AL |
Image Circle Diameter (Φmm) |
43.4(35mm Full) |
| Magnification(x) |
0.53 |
Working Distance(mm) |
338 |
| NA |
0.0265 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
82 |
| Best Aperture(f/#) |
10 |
MTF30 (lp/mm) |
>92 |
| Object Resolution(μm) |
12.7 |
Depth of Field(mm) |
±1.4@F10 |
| Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
| Length of I/O(mm) |
814 |
Length (mm) |
464.4 |
| Weight(kg) |
3.8 |
Iris Adjustable |
No |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
1.5 |
| Filter Screw Size |
M126x0.75 |
Field of View (mm × mm)
|
CMV50000(36.43x27.62) |
68.7x52.1 |
|
|
| KAI29050/2(36.17×24.11) |
68.2×45.5 |
| KAI43142(36.18x24.12) |
68.2×45.5 |

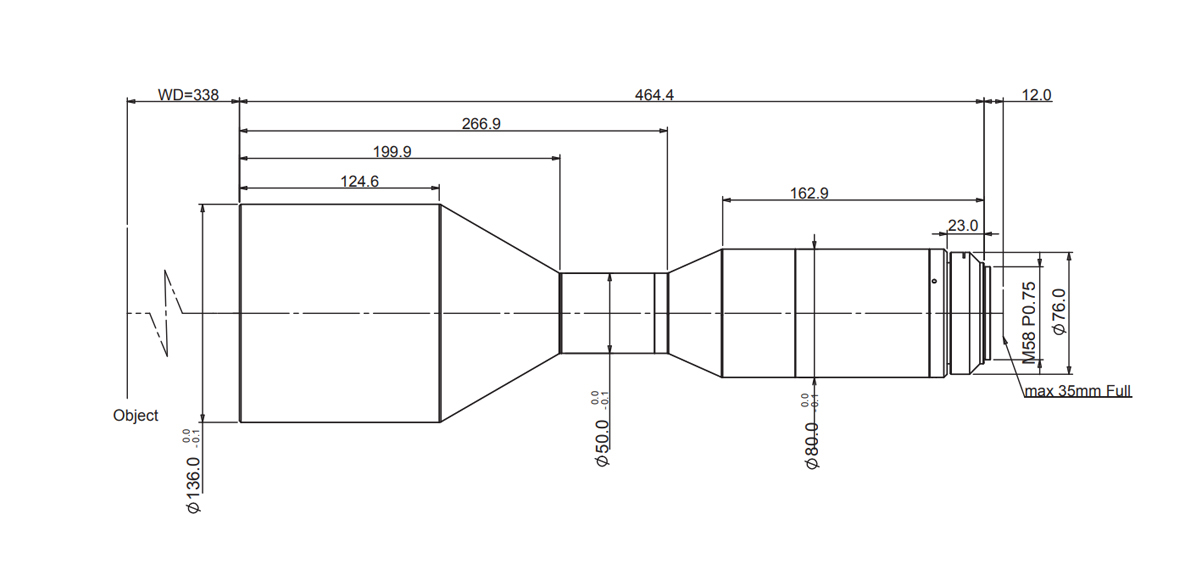

Dimensions
Naming Rule
