| Model NO. |

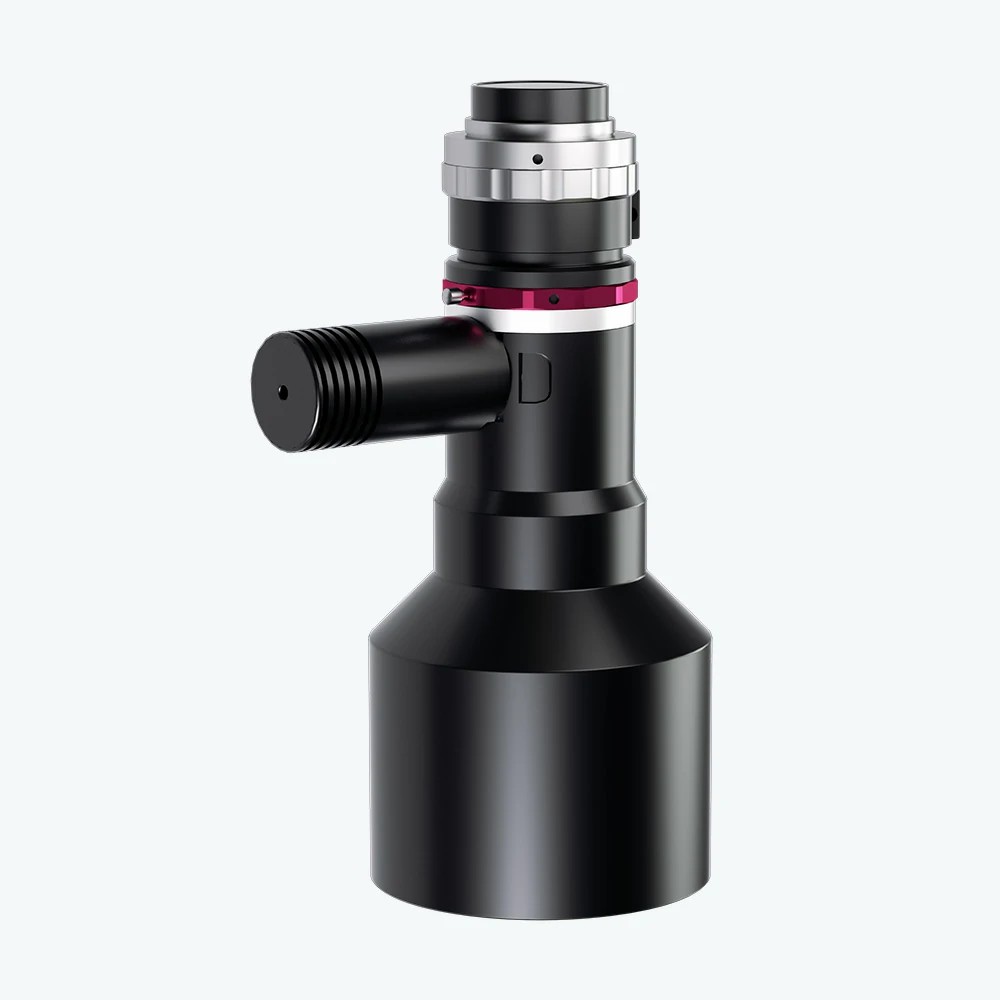

DTCA175-61.4C-G-M42-AL |
Image Circle Diameter (Φmm) |
28.2(1.75") |
| Magnification(x) |
0.46 |
Working Distance(mm) |
250 |
| NA |
0.0288 |
Type |
Telecentric |
| Mount |
M42 |
Object Field of View(Φmm) |
61.4 |
| Best Aperture(f/#) |
8 |
MTF30 (lp/mm) |
110 |
| Object Resolution(μm) |
11.6 |
Depth of Field(mm) |
3 |
| Distortion Typical(% max) |
0.006 |
Telecentricity Typical (°max) |
0.1 |
| Length of I/O(mm) |
452 |
Length (mm) |
190.1 |
| Weight(kg) |
1.3 |
Iris Adjustable |
Yes |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
1.4 |
| Filter Screw Size |
M80x0.75 |
Field of View (mm × mm)
|
22.53x16.90 with CMV12000 |
48.98x36.74 |
|
|
| 18.43x18.43 with PYTHON16k |
40.07x40.07 |
| 28.8mm with LineScan-2k/4k/8k |
62.61 |

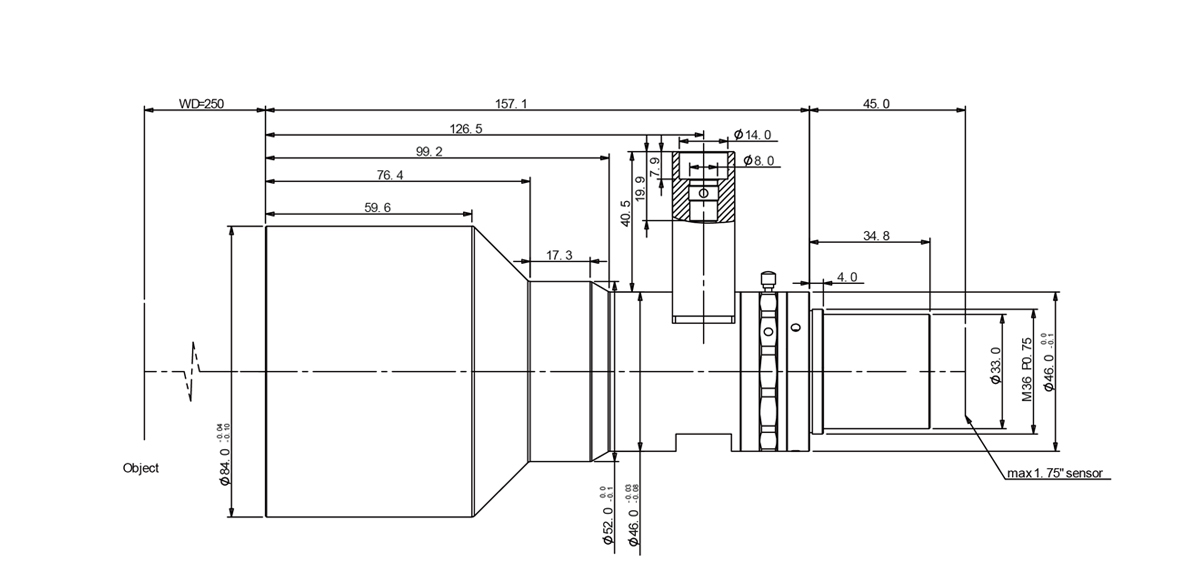

Dimensions
Naming Rule
