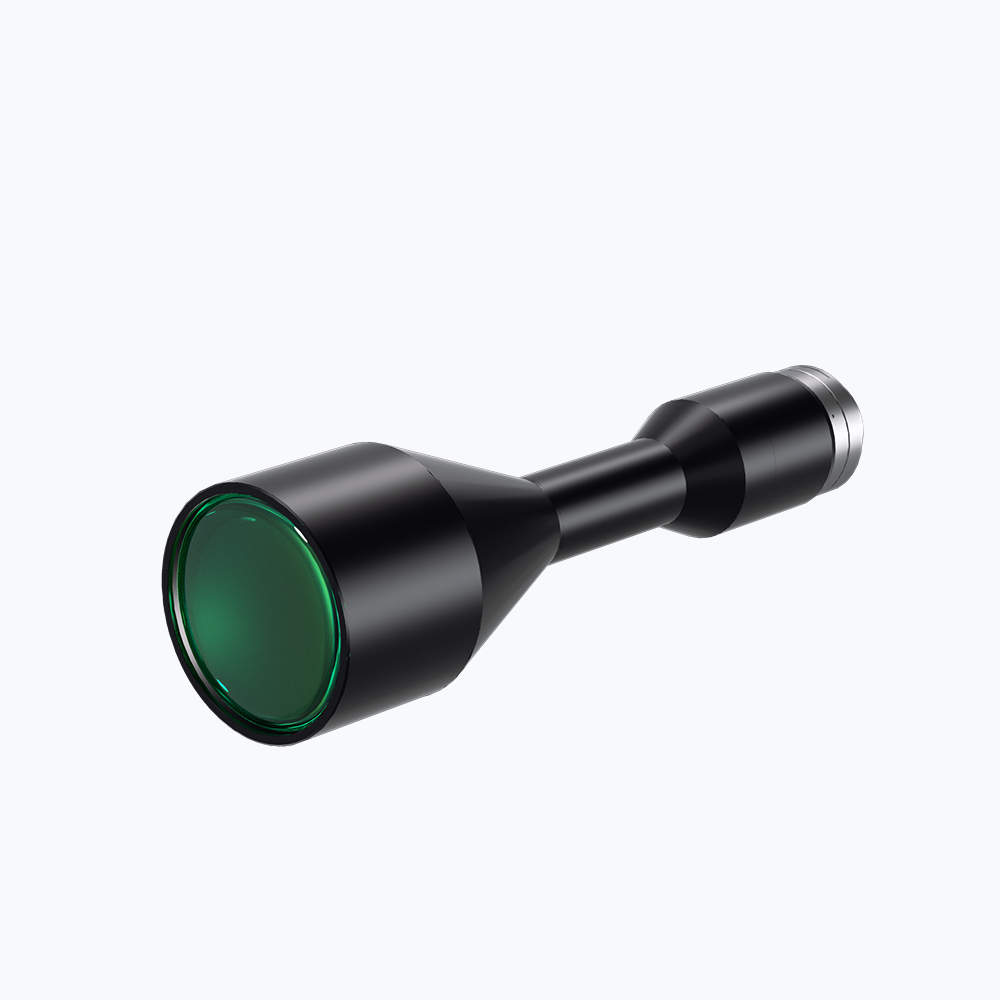

| Model NO. |
DTCA35F-94-M58-AL |
Image Circle Diameter (Φmm) |
43.4(35mm Full) |
| Magnification(x) |
0.462 |
Working Distance(mm) |
378 |
| NA |
0.0289 |
Type |
Bi-Telecentric |
| Mount |
M58 |
Object Field of View(Φmm) |
94 |
| Best Aperture(f/#) |
8 |
MTF30 (lp/mm) |
>115 |
| Object Resolution(μm) |
11.6 |
Depth of Field(mm) |
±1.5@F8.0 |
| Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
| Length of I/O(mm) |
847 |
Length (mm) |
456.9 |
| Weight(kg) |
3.7 |
Iris Adjustable |
No |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
1 |
| Filter Screw Size |
M126x0.75 |
Field of View (mm × mm)
|
CMV50000(36.43x27.62) |
78.9x59.8 |
|
|
| KAI29050/2(36.17×24.11) |
78.3x52.2 |
| KAI43142(36.18x24.12) |
78.3x52.2 |
Dimensions
Naming Rule
