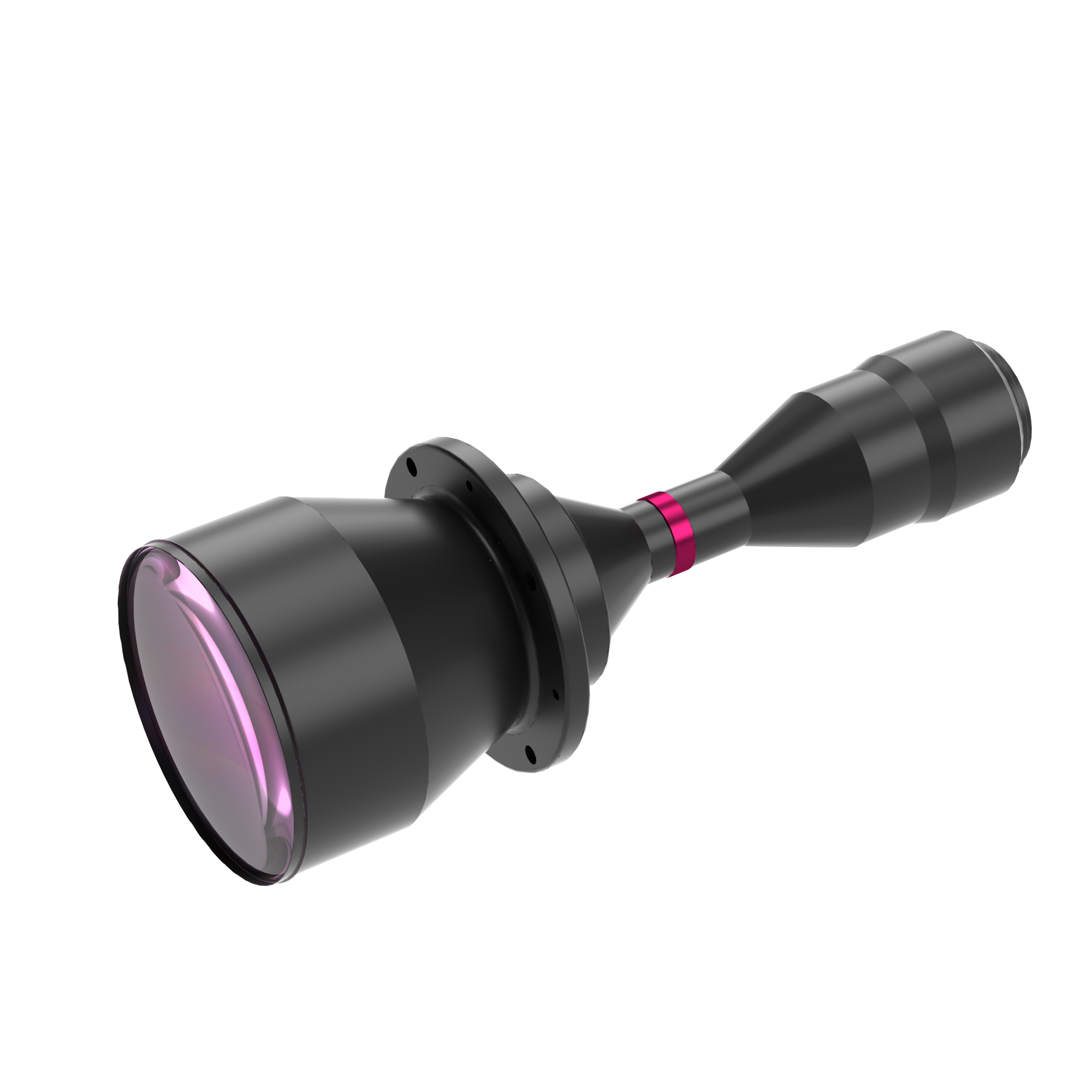

Model NO. |
DTCM35FH-100H-M58-AL |
Image Circle Diameter (Φmm) |
43.6(35mm Full) |
Magnification(x) |
0.436 |
Working Distance(mm) |
238±4 |
NA |
0.0213 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
100 |
Best Aperture(f/#) |
10.3 |
MTF30 (lp/mm) |
>91 |
Depth of Field(mm) |
±4.2@F20 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
634±4 |
Length (mm) |
384 |
Weight(kg) |
3.8 |
Measured Depth of Field (mm) |
1.6 |
Filter Screw Size |
M111x0.75 |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
83.6x63.3 |
KAI29050/2 (36.17x24.11) 34.8x23.2 |
83.0x55.3 |
KAI43142 (36.18x24.12) |
83.0x55.3 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-100H-xW-y |
Beam Diameter 100mm |

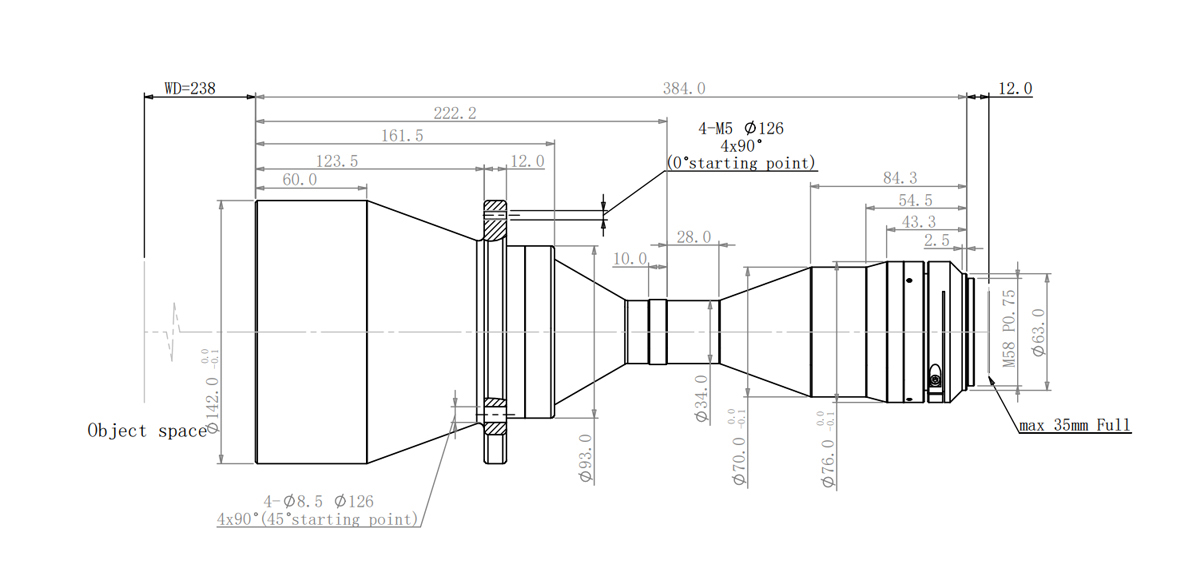

Dimensions
![]()
Naming Rule
![]()
