| Model NO. |
DTCM125-16.6 |
Magnification(x) |
0.434 |
| Object Field of View (Φmm) |
16.6 |
Working Distance (mm) |
24±1 |
| Max Sensor Size (Φmm) |
7.2(1/2.5") |
Best Aperture (F/#) |
4.2 |
| Telecentricity typical (max) (deg) |
<0.25 |
Distortion typical (max) (%) |
<0.1 |
| MTF30 (lp/mm) |
>200 |
Depth of Field (mm) |
±2.3@F11 |
| Length of I/O (mm) |
99±1 |
Mount |
C |
| Length (mm) |
57.7 |
Weight (kg) |
0.2 |
| Field of View (mm × mm) |
1/3" AR130/RJ33 (4.8x3.6) |
11.1x8.3 |
| 1/2.5" 9P001/31 (5.7x4.28) |
13.1x9.9 |
| Compatible Lighting |
Telecentric LED Lighting |
DTCL-16.6-xW-y |
| Beam Diameter 16.6mm |

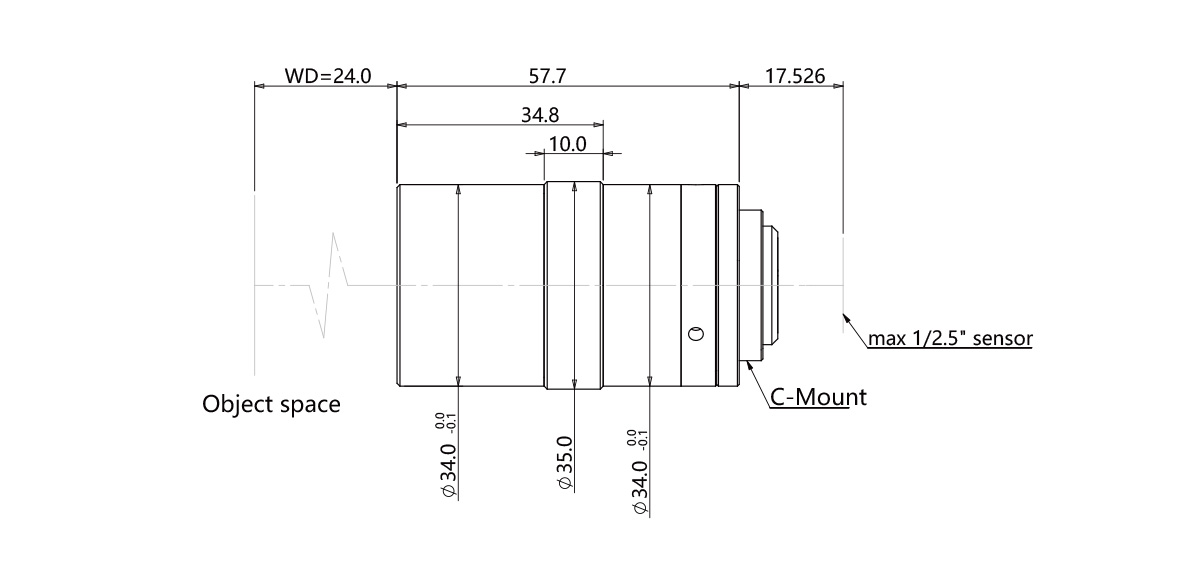

Dimensions
